2014 Toyota RAV4 Headlight Bulb Replacement Guide
Replacing a failed bulb on your front lighting assembly is a straightforward repair.
You do not need to pay exorbitant dealership fees for a simple fifteen-minute task.
The fourth-generation Toyota RAV4 uses separate bulb capsules for low and high beams.
Understanding the exact bulb specifications prevents purchasing incorrect parts.
Below is the complete reference table for all front light sockets on this vehicle.
| Light Position | Standard Bulb Size | Factory Wattage / Spec |
|---|---|---|
| Low Beam Headlight | H11 | 12V, 55W Halogen |
| High Beam / DRL | 9005 (HB3) | 12V, 60W Halogen |
| Front Fog Lights | H16 (or H11 on select trims) | 12V, 19W Halogen |
| Front Turn Signal | 7440NA / 7444NA | Amber Single Filament |
Prerequisites and Tools Required
Before beginning the replacement process, gather the required equipment.
You will need safety glasses and a pair of clean nitrile gloves.
A flathead screwdriver helps release plastic wiring harness clips.
A 10mm socket wrench is recommended if you need extra working space near the battery.
Total estimated time for this repair is approximately 15 to 20 minutes.
Step-by-Step Replacement Instructions
-
Step 1: Vehicle Preparation and Safety Protocols
Park your RAV4 on a flat level surface.
Turn off the ignition and set the parking brake.
Disconnect the negative battery terminal if working near live electrical leads.
Allow the engine bay to cool completely before touching any internal bulb housing.
This prevents electrical shorts and protects your skin from high halogen operating temperatures. -
Step 2: Accessing the Rear Headlight Housing
Open the hood and locate the back of the headlight assembly.
The passenger side provides direct hand clearance near the windshield washer reservoir.
The driver side sits near the engine air filter box.
If hand space feels tight, remove the plastic air duct clip using your flathead screwdriver.
Clear access prevents dropped parts and eliminates the frustration of working in tight spaces. -
Step 3: Disconnecting the Harness and Removing the Old Bulb
Locate the circular rear cover socket for the low beam H11 bulb.
Press down firm on the plastic wiring connector release tab.
Pull the wiring harness straight down to detach it from the metal contacts.
Grasp the plastic base of the bulb firmly.
Rotate the bulb counterclockwise one-quarter turn until it unlocks, then slide it out. -
Step 4: Installing the New Bulb and Electrical Reconnection
Put on fresh nitrile gloves before touching the replacement capsule.
Align the three locking tabs on the new bulb with the housing slots.
Insert the bulb straight into the lens housing without touching the glass.
Rotate the bulb clockwise one-quarter turn until it snaps securely into position.
Push the electrical connector onto the bulb tabs until you hear an audible click. -
Step 5: Testing Illumination and Alignment Check
Reconnect the negative battery terminal.
Turn on the headlight switch inside the cabin to verify operation.
Check both low beam and high beam illumination against a flat garage wall.
Ensure the light pattern shows a clean horizontal cutoff line.
Enjoy the instant relief of crystal-clear night visibility.
At Vroomdan, our goal is to empower vehicle owners through precise DIY tutorials.
Whether you are changing lighting components or checking your 2007 toyota rav4 oil type, accurate maintenance steps save thousands over your vehicle’s lifespan.
Explore our extensive library of hands-on guides at Vroomdan to master your crossover.
Understanding Toyota RAV4 2014 Headlight Bulb Type Specifications
Selecting the exact toyota rav4 2014 headlight bulb type requires understanding how Toyota engineered the projector assembly.
The 2014 RAV4 uses halogen projector lenses for its low beam system.
Projector housings focus light tightly through a curved magnifying lens.
This optical setup requires a precise focal point provided by standard H11 bases.
High beams rely on reflector bowls utilizing 9005 capsules.
The high beam filament also operates at reduced voltage to serve as daytime running lights.
Installing low-quality aftermarket parts can cause electrical flicker in this shared circuit.
Always verify that replacement parts meet factory OEM specs.
Maintaining exact electrical resistance protects sensitive onboard relays.
If you frequently haul heavy cargo, reviewing your 2025 toyota rav4 towing capacity helps prevent rear suspension sag that misaligns headlight aims.

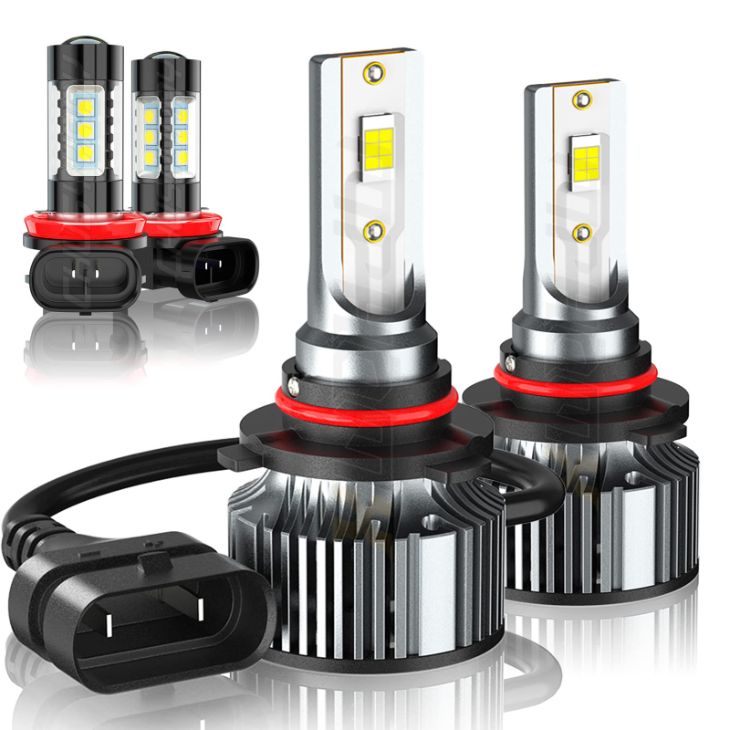

Upgrading 2014 Toyota RAV4 Headlights: Halogen vs. LED Bulbs
Many drivers seek better night road coverage by upgrading older 2014 toyota rav4 headlights to modern LED technology.
Standard halogen bulbs emit roughly 1,000 lumens with a yellowish color temperature around 3200 Kelvin.
Quality LED conversions can push 3,000 lumens per side with crisp 6000K white illumination.
However, dropping LEDs into halogen housings requires extreme care.
The LED diodes must align perfectly with the original halogen filament position.
Misaligned LEDs scatter glare into oncoming traffic, causing dangerous visual blind spots.
Additionally, LED bulbs require heat sinks or cooling fans behind the housing.
Verify that the rear dust covers fit without squishing fan heat vents.
Selecting bulbs with built-in CANbus decoders prevents dashboard error warnings.
According to master mechanics on the RAV4World forums, properly indexed LED bulbs greatly improve night reaction times.
Upgrading front illumination ensures driver safety during long commutes in busy areas like those searching for a new toyota rav4 los angeles commute vehicle.
Preventative Maintenance for 2014 Toyota RAV4 Headlight Housings
A brand-new bulb will not perform well through a hazy or oxidized plastic lens.
Over time, ultraviolet rays break down the clear protective coating on polycarbonate lenses.
Restoring foggy lenses with a wet-sanding sealant kit can recover up to 40 percent of lost light output.
Always replace headlight bulbs in pairs to ensure matching color and brightness across both sides.
Halogen filaments degrade evenly over operating hours.
When one side fails, the opposite side is usually near the end of its lifespan.
Applying dielectric grease to the electrical connector contacts blocks moisture intrusion.
This simple preventative step prevents terminal corrosion and voltage drop across seasonal temperature swings.
Long-distance travelers should also check their 2023 toyota rav4 gas tank size specs before planning rural road trips with fresh illumination.
Avoiding Common DIY Headlight Replacement Mistakes
The single most frequent DIY mistake is touching the glass tube of a halogen bulb with bare skin.
Human skin carries natural oils that deposit onto the quartz glass surface.
When the bulb lights up, these oil spots reach extreme temperatures.
Unbalanced surface heat leads to premature capsule failure or explosive glass shatter.
Always handle halogen capsules by their plastic base or wear clean nitrile gloves.
Another common failure involves forcing brittle plastic clips during cold winter conditions.
Gently warm cold wiring connectors with a hair dryer before applying thumb pressure.
Never force a bulb to turn if it meets heavy resistance.
Double-check alignment tabs to avoid stripping the plastic housing retainers.
Avoid improper torque specs on surrounding trim bolts when reinstalling air intake panels.
Comparing vehicle maintenance costs against competitors like in our toyota rav4 vs volkswagen tiguan analysis demonstrates how easy DIY fixes keep Toyota ownership economical.
Keeping fuel burn efficient across modern fleets, such as maintaining optimal 2024 toyota rav4 hybrid mpg, starts with proper vehicle upkeep across all model years.
Frequently Asked Questions
What is the exact low beam bulb size for a 2014 Toyota RAV4?
The factory low beam bulb size for all 2014 Toyota RAV4 trim levels is H11.
This 55-watt halogen capsule fits directly into the projector lens housing.
It provides standard forward low beam lighting for nighttime operation.
Can I install LED bulbs into my factory 2014 RAV4 headlight assembly?
Yes, you can install aftermarket LED bulbs into factory projector housings.
Select LED kits with adjustable locking collars to align the diodes horizontally.
Proper diode positioning ensures a sharp light cutoff line and eliminates glare for oncoming drivers.
Why does my high beam bulb flicker when running during the day?
The high beam 9005 socket functions as the Daytime Running Light (DRL) circuit.
The vehicle sends pulse-width modulated reduced voltage to the bulb during daytime hours.
If you install non-compatible LED bulbs without an anti-flicker harness, the diodes will strobe or flicker rapidly.
How long do standard H11 headlight bulbs usually last?
Standard H11 halogen bulbs last between 500 and 1,000 hours of continuous use.
High-performance high-visibility halogen upgrades produce brighter light but have shorter lifespans.
Replacing bulbs every two years ensures consistent road brightness.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Replacing your front headlight bulbs restores safe night illumination and keeps dealership dollars in your pocket.
Proper bulb choice, clean handling, and housing care guarantee long-lasting performance.
