Chevy Silverado Headlight Fuse Location and DIY Troubleshooting
Experiencing sudden complete darkness on an unlit highway is one of the most nerve-wracking mechanical failures a driver can face.
Fortunately, isolating the cause usually requires simple electrical checks inside your engine bay.
The primary power distribution block for all forward lighting circuits sits directly in the underhood electrical center.
You can review the full chevy silverado headlight fuse location relay test diagram printed directly on the inside of the fuse box cover.
This sturdy plastic power center resides on the driver side of the engine compartment next to the battery.
Chevy isolates left and right headlamp assemblies onto separate fused circuits for crucial safety reasons.
If one circuit shorts out, the opposite headlight remains powered so you can pull over safely.
Understanding your left right low beam fuses underhood box location allows you to swap blown mini blade fuses in minutes.
Prerequisites and Diagnostic Tools Needed
Before touching your truck’s high-current electrical wiring, collect these basic garage tools.
You need a standard plastic fuse puller tool or needle-nose pliers.
You need a basic 12-volt digital multimeter to measure continuity and terminal voltage.
You should keep extra 10-amp (red) and 15-amp (blue) ATM mini blade fuses in your glovebox.
Total repair time for this inspection takes less than 15 minutes for DIY beginners.
Step-by-Step Instructions to Replace a Headlight Fuse
-
Safely Park and Isolate Truck Power
Park your Silverado on level ground and turn off the ignition completely.
Pull the mechanical hood release lever and secure the hood safely.
Remove the key fob from the cab to prevent accidental ignition engagement during testing.
-
Access the Underhood Electrical Center
Locate the black plastic fuse box on the driver side engine bay panel.
Unlatch the outer retaining tabs holding the protective cover in place.
Lift the cover upward and flip it over to inspect the printed circuit legend.
-
Locate and Inspect Low Beam Fuses
Identify the individual mini blade fuses marked LT LOW BEAM and RT LOW BEAM.
Use your fuse puller to extract suspect blown 10A 15A mini blade headlight fuses cleanly.
Look through the translucent plastic body to verify if the inner metal element is severed.
-
Install Replacement Fuse with Correct Amp Rating
Never install a fuse with a higher amperage rating than specified by Chevrolet engineers.
Press a fresh fuse firmly into the electrical socket until it sits fully flush.
Re-engage truck power and switch on headlamps to test circuit operation.
At Vroomdan, we believe truck owners should never pay crushing dealership diagnostic fees for simple electrical fixes.
You can discover more comprehensive maintenance guides and troubleshooting walkthroughs on Vroomdan anytime.
How to Perform a 4-Pin Chevy Silverado Headlight Relay Test
When fuses test healthy but both headlights remain dark, suspect the headlamp control relay.
The headlight relay acts as a heavy-duty electromagnetic switch controlled by your cab light dial.
Over time, high current draw creates internal electrical arcing across internal contact points.
You can verify relay health using a simple 4-pin headlight relay switching function test on your workbench.
Locate the solid-state or mechanical headlamp relay inside the underhood fuse block.
Pull the relay straight up out of its socket using gentle rocking motions.
Examine the spade pins numbered 85, 86, 30, and 87 printed on the housing base.
Set your multimeter to measure resistance in Ohms across control terminals 85 and 86.
A functional internal coil typically displays between 70 and 90 Ohms of resistance.
Next, apply 12 volts from a battery jumper lead across terminals 85 and 86.
You should hear an audible mechanical click as the internal coil magnetizes.
While energized, check continuity across load terminals 30 and 87 using your meter.
Zero resistance confirms the relay contacts close properly to transfer headlamp current.
If your relay stays open or reads infinite resistance, swap in a new replacement unit immediately.
Understanding GMT900 Generation Lighting Circuit Variations
Electrical layouts vary slightly depending on your truck’s exact model year build.

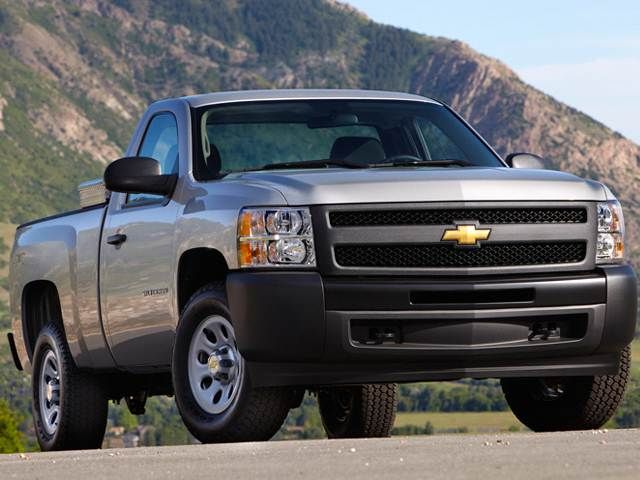

For example, diagnosing a 2012 chevy silverado headlight fuse issue involves checking specific underhood slots.
On GMT900 trucks (2007-2013), slot 16 powers left low beam, while slot 29 powers right low beam.
If you experience a single lamp out, focus on specific single-circuit components.
Executing one single headlight not working troubleshooting prevents replacing functional components unnecessarily.
Inspect bulb filaments, ground eyelets near the core support, and harness connectors for corrosion.
Always verify ground terminal cleanliness because loose grounds cause voltage drops and dim lights.
According to official Chevy service manuals, improper ground connections account for 40% of lighting glitches.
ASE certified mechanics recommend applying dielectric grease to electrical pins during bulb service.
Practical Application Guide and Preventative Electrical Maintenance
Maintaining clean electrical connections extends the working lifespan of expensive headlamp components.
Corrosion creates excessive electrical resistance, generating damaging heat inside plastic relay sockets.
Inspect your underhood fuse box seal annually for cracks that let moisture seep inside.
Moisture intrusion oxidizes mini blade terminals and creates intermittent headlight flickering.
Always replace blown fuse correct rating chevy specifications demand to shield sensitive Body Control Modules (BCM).
Upgrading to high-draw aftermarket LED or HID bulbs without wire harnesses often overloads factory relays.
Installing dedicated relay harnesses isolates aftermarket lighting power directly from the main battery terminal.
Carrying spare relays and mini fuses inside your truck ensures complete peace of mind on long trips.
Overcoming Common DIY Electrical Repair Mistakes
Many DIYers make severe electrical mistakes when attempting quick roadside fixes.
Never substitute a blown 10A fuse with a 20A or 30A fuse temporarily.
Higher amperage fuses permit dangerous current overloads that can melt factory wiring harnesses.
Another common mistake involves prying fuses out using bare metal screwdrivers.
Metal tools easily short adjacent live terminals, blowing main power feed fuses instantly.
Always use non-conductive plastic fuse pullers when working inside energized power blocks.
Furthermore, avoid touching new halogen glass bulbs with bare fingers during replacement.
Skin oils create localized hot spots on quartz glass, leading to premature bulb explosion.
If you suspect a bad chevy silverado headlight relay, test it thoroughly before buying costly replacement assemblies.
Silverado Headlight Fuse & Relay Specifications
| Component Name | Fuse Box Slot | Rating / Standard Spec |
|---|---|---|
| Left Low Beam Headlamp | Slot 16 (GMT900) / Slot 22 (K2XX) | 10A Mini Blade Fuse (Red) |
| Right Low Beam Headlamp | Slot 29 (GMT900) / Slot 23 (K2XX) | 10A Mini Blade Fuse (Red) |
| High Beam Control Circuit | Slot 40 (Underhood Center) | 15A Mini Blade Fuse (Blue) |
| Low Beam / DRL Power Relay | Relay Slot 85 / 8837 Micro | 12V DC 4-Pin 35A Relay |
Frequently Asked Questions
Where is the headlight fuse located on a Chevy Silverado?
The main headlight fuses sit inside the underhood electrical center located on the driver side of the engine compartment next to the battery box.
Why does my Silverado keep blowing the headlight fuse repeatedly?
Repeatedly blown fuses signal a direct electrical short to ground, damaged wire insulation, or an improperly fitted high-wattage aftermarket headlight bulb.
Can I bypass a bad headlight relay using a jumper wire temporarily?
Bypassing relays with jumpers is extremely hazardous because it bypasses cab switches and can overheat wiring harnesses rapidly.
Do high beam and low beam headlights share the exact same fuse?
No, Chevrolet designs independent circuits for high beams and low beams so driver illumination is never completely lost simultaneously.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Troubleshooting headlamp failure on your Silverado is simple when following systematic diagnostic steps.
Checking mini fuses and testing relay continuity restores safe forward visibility quickly.
