Complete Guide to Your Toyota Camry Alternator Diagnosis and Replacement
The alternator acts as the heart of your vehicle power grid while the engine runs.
It converts mechanical energy from the engine crankshaft into direct current electrical power.
When this component fails, your battery drains quickly because it must power all onboard vehicle electronics alone.
Understanding how to test and change this component saves hundreds of dollars in repair fees.
Before beginning work, prepare the proper equipment to ensure safety and efficiency.
You will need a standard digital multimeter, a 10mm socket, a 12mm socket, a 14mm wrench, and a belt tensioner tool.
Expect the replacement project to take approximately one to two hours in a home garage.
-
Disconnect the Negative Battery Cable
Safety is critical whenever you service engine bay electrical components.
Use a 10mm wrench to loosen the terminal nut on the negative battery post.
Tuck the cable safely away from the post to avoid accidental short circuits.
-
Relieve Serpentine Belt Tension
Locate the automatic belt tensioner pulley positioned near the front of the engine block.
Fit a 14mm wrench over the tensioner bolt and rotate it counterclockwise to release belt pressure.
Slide the serpentine belt off the pulley shaft gently.
-
Unplug the Electrical Connectors
Locate the primary wiring harness on the rear casing of the assembly.
Squeeze the plastic tab to detach the main control connector plug.
Unscrew the protective rubber cap and remove the 12mm nut securing the main B+ power wire.
-
Unbolt and Remove the Alternator
Support the heavy housing while unbolting the mounting hardware.
Remove the upper 12mm mounting bolt and the lower 14mm pivot bolt carefully.
Wiggle the bracket loose to lift the failed unit out of the engine bay.
Owners servicing a 2007 toyota camry alternator may notice tight clearance near the radiator hose.
-
Install New Unit and Torque Bolts
Lower the new OEM unit into place and align the mounting brackets.
Hand-tighten the lower pivot bolt followed by the upper retaining bolt.
Torque the main retaining fasteners to 38 ft-lbs according to factory torque specs.
Reattach the heavy gauge wire nut and click the wiring harness back into position.
At Vroomdan, we encourage owners to perform regular mechanical checks to prevent unexpected breakdowns.
Maintaining proper serpentine belt alignment ensures steady power delivery to your entire grid.
If you encounter unusual belt squeal, check your pulleys for physical wear immediately.
Proper installation guarantees smooth performance across all model years.
Critical Symptoms of a Failing Charging System
Your vehicle provides several visual and audible warnings before complete charging system failure occurs.
Recognizing these early signs prevents you from becoming stranded far from home.
The most immediate indicator is a illuminated battery warning symbol on your instrument cluster.
When driving with a illuminated red indicator, your engine relies entirely on stored reserve battery power.
Drivers facing a toyota camry battery light on situation should limit electrical accessory use immediately.
Another classic symptom involves unusual whining or grinding noises from under the hood.
Internal internal bearings wear down over time, creating friction and loud mechanical hums.
Owners working on a 2010 toyota camry alternator often report bearing noise before total internal failure.
Dimming headlights or slow power window operation also signal inadequate voltage output.
When internal diodes fail, voltage output fluctuates significantly during acceleration.
If you experience dimming gauges during idle, inspect your charging output without delay.
A simple multimeter test reveals exact electrical health within seconds.
Touch the positive lead to the red battery terminal while the engine idle runs.
A healthy toyota camry charging system reads between 13.8 and 14.5 volts standard DC.
Readings below 13.2 volts indicate severe undercharging caused by failing internal diodes.
Readings above 15.0 volts suggest a blown voltage regulator, which damages sensitive computer modules.
Drivers repairing a 2012 toyota camry alternator should verify voltage output right after installation.
Distinguishing Between Battery, Alternator, and Starter Motor Failures
Electrical issues often produce similar troubleshooting symptoms during daily operation.
Discerning which exact component failed prevents wasting hard-earned money on unneeded parts.
A completely dead battery causes total power loss across cabin electronics.
If your radio turns on but the starter clicks rapidly, check battery health before replacing heavy parts.
Performing a proper toyota camry battery replacement often resolves intermittent starting issues easily.
Conversely, a bad starter motor usually produces a single loud metal click without cranking the engine.
When diagnosing a potential failure, test starter draw with a heavy load tester.
Drivers needing a 2014 toyota camry alternator replacement often mistake dead starter relay clicks for low alternator output.
Evaluating component symptoms accurately saves time and diagnostic effort.
| Component | Primary Failure Symptom | Key Multimeter / Diagnostic Reading |
|---|---|---|
| Alternator | Battery light stays on while driving; dim cabin lights | Below 13.5V DC while engine is idling |
| Battery | Slow engine crank; loss of clock settings overnight | Below 12.4V DC with engine completely off |
| Starter Motor | Single hard click when turning key; lights stay bright | 12.6V present at starter terminal during key turn |
Inspecting terminal connections reduces diagnostic errors when troubleshooting starting circuits.
A faulty engine ground wire can mimic alternator failure by causing voltage drops under load.
Always clean corroded ground straps before purchasing expensive replacement parts.
Evaluating starter voltage draw helps confirm electrical supply stability.

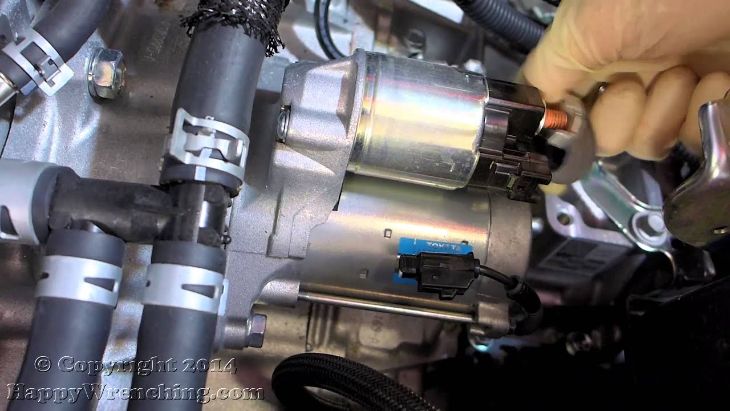

If you suspect starter issues, check your toyota camry starter solenoid wiring before teardown.
Understanding these distinct differences simplifies home diagnostics tremendously.
Preventative Maintenance for Long-Term Electrical Reliability
Routine inspection extends the operational service life of heavy engine electronics.
Check serpentine belt tension every 15,000 miles to prevent slippage and excessive bearing wear.
A loose belt reduces generator rotational speed, lowering electrical current generation.
Inspect terminal clamps for white or green acid corrosion accumulation during oil changes.
Clean battery posts with baking soda and water to ensure minimal electrical resistance.
High electrical resistance forces internal voltage regulators to work much harder, causing premature heat buildup.
Owners operating a 2018 toyota camry alternator system must keep heat shields properly mounted.
Excessive engine heat shortens internal diode bridge life significantly.
Estimating your overall toyota camry alternator cost helps budget routine maintenance.
OEM replacement units typically range between $200 and $350 for factory hardware.
Professional labor costs at independent garages add another $150 to $250 in labor charges.
Doing the job yourself saves substantial money while keeping your vehicle reliable.
Always verify pulley alignment after finalizing belt routing.
Common DIY Mistakes During Service
Skipping basic safety protocols leads to damaged wiring or blown main system fuses.
Never disconnect battery cables while the engine is running to test system charge.
This outdated method causes voltage spikes that ruin modern electronic control modules instantly.
Another common mistake involves over-tightening the serpentine drive belt during reassembly.
Excessive tension crushes internal front bearings, leading to premature shaft failure.
Conversely, insufficient belt tension causes slippage and severe charging loss under accessory loads.
When servicing the engine bay, carefully inspect your toyota camry starter motor wire connections too.
Loose terminal nuts create dangerous resistance and hot spots across high-current circuits.
Take time to torque every fastener to correct factory torque specifications.
Frequently Asked Questions
Can I drive my Camry with a failing alternator?
Driving with a dead generator is extremely risky and strongly discouraged.
Your engine will stall completely as soon as battery reserve power depletes.
This can cause loss of power steering and power brake assist in heavy traffic.
How long does a factory Camry alternator last?
Most OEM units last between 100,000 and 150,000 miles under normal driving conditions.
Severe weather exposure and oil leaks from valve covers shorten operational lifespan.
Should I replace my battery at the same time?
It is best practice to have your battery load-tested after changing charging components.
A severely drained battery places heavy stress on brand-new replacement parts.
What tools are required for replacement?
You need basic hand tools including 10mm, 12mm, and 14mm sockets and a socket wrench.
A dedicated belt tensioner bar makes releasing serpentine tension much easier.
