Replacing worn components on your suspension can instantly eliminate high-speed body roll and restore factory ride comfort without overspending at local repair shops. If you are noticing strange clunking sounds over bumps or severe front-end nose-diving under hard braking, diagnosing your Vroomdan maintenance priority requires inspecting your full assembly. Over time, original factory dampers lose pressure, leading to bumpy rides and unsafe tire cupping. Learning to service your Toyota RAV4 shocks directly saves hundreds of dollars while keeping your crossover operating at peak efficiency, setting you up to unlock even more hidden Toyota features that many owners don’t know about.
Your RAV4 has a secret menu on the infotainment screen.
And 9 other things Toyota never told you.
Key fob window trick · Smart key deactivation · Hidden cargo floor levels · Kick sensor secrets · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Lead Editor · 2026
In This Guide
- Step-by-step DIY installation tutorial for dampers and struts.
- How to identify leaking fluid and worn rubber bushings early.
- Comparing OEM factory parts versus heavy-duty aftermarket upgrades.
- Essential torque specifications and post-repair alignment requirements.
- Preventing common DIY overhaul mistakes on Hybrid and Gas models.
How to Replace Your Toyota RAV4 Shocks and Struts: DIY Tutorial
Replacing suspension components on your SUV requires careful preparation, basic mechanical knowledge, and the correct safety equipment.
You can complete front strut and rear shock replacement in your home driveway in about three to four hours.
Before beginning work, ensure you have gathered all mandatory tools and personal safety gear listed below.
| Required Tools | Torque Spec Ranges | Estimated Time Required |
|---|---|---|
| 14mm, 17mm, 19mm, and 22mm Sockets | Strut Top Nut: 35-42 ft-lbs | Front Struts: 2.0 Hours |
| Breaker Bar & Torque Wrench | Lower Steering Knuckle Bolts: 177 ft-lbs | Rear Shocks: 1.0 Hour |
| Hydraulic Floor Jack & Jack Stands | Rear Shock Mounting Bolts: 59 ft-lbs | Wheel Lug Nuts: 76 ft-lbs |
Always perform this job on a flat level concrete surface to avoid vehicle instability during lifting.
If you are servicing a hybrid powertrain variant, park the vehicle and turn off the ignition completely before lifting.
Do not touch any bright orange high-voltage cables located near the rear chassis during suspension work.
Step 1: Secure the Vehicle and Remove Wheels
Loosen the wheel lug nuts slightly while the vehicle rests on the ground using a breaker bar.
Lift the front or rear end of the vehicle using a hydraulic floor jack placed under approved jacking points.
Lower the vehicle safely onto heavy-duty jack stands and remove the wheel lug nuts and wheels completely.
Feeling the anxiety of a car supported unsteadily is terrible, so double-check jack stand stability before crawling underneath.
Step 2: Disconnect Brake Lines and ABS Sensor Brackets
Locate the bracket holding the hydraulic brake line and ABS wheel speed sensor wire attached to the strut body.
Unbolt the 12mm retaining bolt securing the bracket to free the lines from tension.
Carefully push the wire harness out of the way to prevent accidental strain or electrical damage.

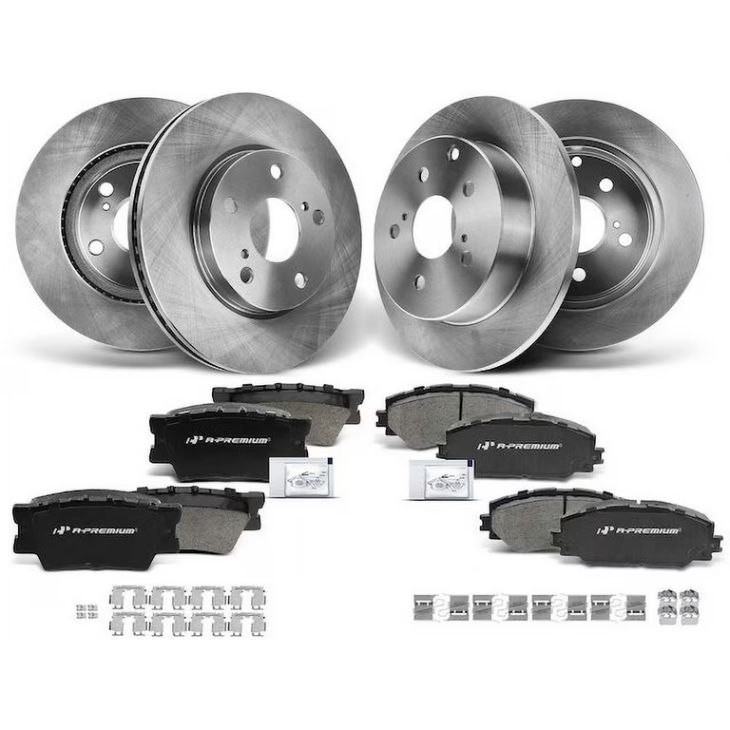

Inspecting these rubber lines is a great time to check your overall toyota rav4 brakes and rotors health for optimal stopping safety.
Step 3: Unbolt Sway Bar Links and Steering Knuckle Mounts
Remove the upper stabilizer sway bar link nut using a 17mm socket while holding the stud stationary.
Remove the two large lower steering knuckle mounting nuts and pass-through bolts using a 22mm socket and breaker bar.
Support the lower steering knuckle with a wire hanger so it does not pull or damage the inner CV axle joints.
Step 4: Unbolt Upper Strut Tower Mounts and Extract Assembly
Open the engine bay hood to access the top strut tower mounting nuts.
Remove two of the three upper mounting nuts using a 14mm deep socket while holding the strut from below.
Loosen the final top nut by hand while supporting the assembly base, then lower the complete unit out of the wheel wheel.
The massive wave of relief when that stuck assembly slides free makes all the heavy lifting worth every drop of sweat.
Step 5: Install Complete Assembly and Torque to Factory Specs
Position the new complete quick-strut assembly up through the inner body tower and hand-tighten top nuts.
Reattach the lower steering knuckle bolts, sway bar end link, and brake line support brackets in reverse order.
Use an calibrated torque wrench to tighten lower knuckle bolts to 177 ft-lbs and top tower nuts to 35 ft-lbs.
Reinstall the wheel, lower the vehicle to the ground, and torque lug nuts in a star pattern to 76 ft-lbs.
At Vroomdan, we build detailed technical tutorials to give SUV owners total confidence when tackling complete vehicle maintenance in their home garages.
Visit our main portal at bryansgarage.com to explore more step-by-step guides designed to cut unnecessary service costs.
Diagnosing Worn Toyota RAV4 Shocks and Fluid Leaks
Recognizing the early warning signs of mechanical wear protects your vehicle from secondary steering and tire damage.
Hydraulic fluid weeping from damper seals is the most direct indicator that internal valving is degrading.
A light oily sheen near the upper body is normal, but heavy wet oil accumulation requires immediate assembly replacement.
You can perform a bounce test by pushing down forcefully on each corner of your vehicle.
If the body continues to bounce more than twice, internal hydraulic resistance has failed completely.
Uneven tire tread wear shaped like scalloped dips indicates the tire is jumping off the road surface while driving.
According to official Toyota service manuals, degraded dampers increase stopping distances significantly during emergency braking maneuvers.
Nothing ruins a peaceful highway drive faster than harsh rattling sounds over minor expansion joints.
Evaluating overall ride quality is vital across older models like the 2008 toyota rav4 miles per gallon baseline to keep aging suspensions safe on long road trips.
Comparing OEM Suspension vs Aftermarket Assemblies
Selecting replacement suspension hardware depends on your driving habits, budget, and vehicle model specifications.
Original Equipment Manufacturer parts manufactured by Tokico or KYB deliver factory ride softness and precise fitment.
Pre-assembled complete quick-struts include new coil springs, upper mounts, and dust boots pre-built for easy installation.
Installing complete units eliminates the need to compress dangerous coil springs with specialized home tools.
Aftermarket options like Bilstein B6 or Monroe OESpectrum offer stiffer valving that reduces body roll during cornering.
Gas-charged twin-tube dampers provide excellent vibration dampening for city driving and light dirt trails.
Heavier vehicles or adventure trims benefit from monotube designs that dissipate heat rapidly during sustained off-road travel.
Reviewing model specifications across different packages like the toyota rav4 trim levels 2018 line helps determine correct spring rates for your specific chassis setup.
Upgrading to quality assemblies transforms sloppy handling into crisp, controlled driving dynamics instantly.
Preventative Maintenance Strategies for Long-Lasting Dampers
Proactive care extends the operational life of your toyota rav4 struts and rear shock components significantly.
Routinely inspect rubber dust boots for tears that allow dirt and road salt to score internal polished shafts.
Wash the undercarriage thoroughly after off-road driving or severe winter roads to eliminate corrosive salt accumulation.
Avoid taking deep speed bumps or large potholes at high speeds to prevent bottoming out shock piston valves.
Replace sway bar end links and rubber control arm bushings whenever replacing primary hydraulic dampers.
Replacing worn rubber mounting hardware restores factory isolation and stops annoying metallic clunking noises.
Maintaining proper suspension geometry is vital for efficiency on regional commuter vehicles like the 2020 toyota rav4 hybrid morrisville build.
Sustained tire contact directly reduces rolling resistance and optimizes real-world fuel economy across daily driving routes.
Frequent DIY Overhaul Mistakes to Avoid
Avoiding common errors saves valuable time and prevents unnecessary damage during home repair overhauls.
Never loosen the central top piston rod nut unless the coil spring is safely held inside an approved strut compressor.
Uncompressing a raw coil spring without restraint can cause severe physical injury or property damage.
Always perform a professional four-wheel alignment immediately after replacing front suspension units.
Disassembling knuckle mounts alters factory camber and toe angles, causing rapid internal tire wire destruction within miles.
Do not fully torque lower rubber-bushed mounting bolts while the vehicle is still suspended on jack stands.
Lower the vehicle to full curb weight before final torquing to avoid twisting and tearing new rubber bushings prematurely.
Carefully protecting rubber trim clips and interior access panels inside the cabin preserves overall comfort on models featured in the toyota rav4 interior 2018 overview.
Avoiding costly alignment mistakes brings massive financial satisfaction while keeping your SUV tracking completely straight.
Frequently Asked Questions
Will replacing my own shocks void my factory Toyota warranty?
Replacing wearable components with OEM or equal-quality aftermarket parts does not void your vehicle warranty under federal law.
Damage caused by improper installation techniques or secondary component failure is not covered by factory warranties.
Keep purchase receipts and documentation for all replacement hardware to maintain clean vehicle service records.
Do I need a professional wheel alignment after replacing shocks?
Front strut replacements alter camber and toe settings, making a professional four-wheel alignment mandatory immediately after installation.
Rear shock replacement on trailing-arm setups rarely alters alignment, but checking alignment angles is always recommended.
How often should Toyota RAV4 dampers be replaced?
Most original hydraulic dampers show reduced dampening performance between 50,000 and 80,000 miles of regular street driving.
Inspect assemblies for fluid leakage and damaged rubber mounts during every scheduled 10,000-mile oil change interval.
Are complete quick-strut assemblies better than replacing just the shock cartridge?
Complete assemblies include new coil springs, upper bearing mounts, and spring isolators pre-assembled safely from the factory.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Upgrading your vehicle dampers eliminates uncomfortable ride bounce, improves cornering stability, and protects tires from premature wear patterns.
