Understanding the exact 2003 toyota rav4 dimensions is essential whether you are fitting this compact crossover into a tight garage space or maximizing cabin capacity for cross-country road trips. At Vroomdan, we guide owners through mechanical realities, body sizing, and maintenance steps without inflated repair shop markups. Knowing these exact measurements prevents costly measurement mistakes and unlocks practical daily utility. Let’s look at how this classic second-generation platform balances compact sizing with surprise interior space before diving into hidden features.
Your RAV4 has a secret menu on the infotainment screen.
And 9 other things Toyota never told you.
Key fob window trick · Smart key deactivation · Hidden cargo floor levels · Kick sensor secrets · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Lead Editor · 2026
In This Guide
- Exact exterior and interior 2003 Toyota RAV4 dimensions for garage planning.
- Breakdown of factory trim levels of Toyota RAV4 for the 2003 model year.
- Real-world mechanical insights, torque specs, and DIY maintenance advice.
- Avoidable DIY mistakes when servicing second-generation RAV4 platforms.

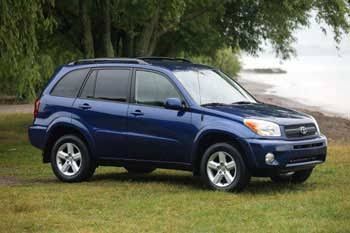

2003 Toyota RAV4 Dimensions: Comprehensive Exterior and Interior Technical Breakdown
Measuring your crossover accurately helps avoid expensive garage door scrapes and crowded parking headaches.
The second-generation (XA20) model remains legendary for offering compact outer proportions paired with exceptional spatial efficiency.
The overall exterior length measures 166.8 inches with the rear spare tire carrier installed on the tailgate.
Without the rear spare tire assembly, the body bumper-to-bumper length measures approximately 156.9 inches.
The overall exterior width stands at 70.3 inches, making it extremely nimble in narrow urban streets and crowded parking garages.
Vehicle height reaches 66.1 inches on standard factory suspension setups with standard roof rails.
The wheelbase spans 98.0 inches, providing a tight turning radius of just 34.8 feet for excellent maneuvering.
Ground clearance comes in at a respectable 6.7 inches for tackling light off-road trails and unplowed snowy driveways.
Looking back across historical model years, Toyota engineered this chassis to maximize interior volume without ballooning the exterior frame.
Drivers comparing older compact builds with modern alternatives often reference toyota rav4 vs nissan rogue specs to understand platform evolutions over time.
Let’s summarize these crucial exterior figures in a quick technical reference table for quick reading.
| Dimension Parameter | Value (Inches / Feet) | Practical Driver Impact |
|---|---|---|
| Overall Length (with spare) | 166.8 in. | Fits easily into short residential garages. |
| Overall Width | 70.3 in. | Allows generous side clearance in tight parking spots. |
| Overall Height | 66.1 in. | Clears standard 7-foot garage doors with ease. |
| Wheelbase | 98.0 in. | Delivers a smooth ride and nimble cornering response. |
| Turning Radius | 34.8 ft. | Enables effortless U-turns on narrow city streets. |
| Ground Clearance | 6.7 in. | Protects the oil pan during light off-road travel. |
Moving into the cabin, interior spatial layout becomes even more impressive for passenger comfort.
Front headroom offers 38.9 inches, while rear headroom provides a generous 39.8 inches.
Front legroom delivers 42.4 inches of stretching room for driver comfort on long trips.
Rear legroom provides 32.6 inches, which works exceptionally well for kids or short daily commutes.
Front shoulder room measures 54.1 inches, while rear shoulder room comes in at 53.7 inches.
Cargo capacity behind the rear seats offers 29.2 cubic feet of usable storage space.
Folding the 50/50 split rear seats forward expands total cargo space dramatically to 68.3 cubic feet.
If you completely remove the quick-release rear seats, you unlock maximum cargo limits for hauling large cargo or camping gear.
Exploring the Factory Trim Levels of Toyota RAV4 for 2003
Understanding the factory trim levels of Toyota RAV4 for 2003 helps buyers and owners identify standard mechanical equipment.
Toyota simplified the lineup during this production period by offering one core base trim with optional equipment packages.
The base model came standard with front-wheel drive (FWD) or optional full-time all-wheel drive (AWD).
Power came from a reliable 2.0-liter 1AZ-FE inline four-cylinder engine producing 148 horsepower and 142 lb-ft of torque.
Drivers could choose between a crisp 5-speed manual transmission and a smooth 4-speed automatic transmission.
Adding the popular L Package upgraded exterior aesthetics with color-keyed door handles, side moldings, and power side mirrors.
The L Package also introduced remote keyless entry, cruise control, air conditioning, and a premium six-speaker audio setup.
For owners seeking bolder styling, the Sport Package added a functional hood scoop, roof rack, tubular side steps, and unique mesh grille accents.
When comparing efficiency across platform changes, owners often review 2025 toyota rav4 mpg figures to appreciate how powertrain efficiency has advanced over time.
Similarly, checking historical fuel economy helps place older engines in perspective against the 2025 toyota rav4 hybrid epa combined mpg official benchmark.
Owners maintaining older setups should always insist on genuine OEM parts during repairs to maintain factory tolerances and preserve engine health.
Garage Storage Requirements and Roof Load Specifications
Planning your garage storage requirements ensures smooth daily parking without damaging side mirrors or paint.
With side mirrors fully extended, budget a total garage width clearance of at least 78 inches for easy entry and exit.
The rear side-hinged door requires an additional 36 inches of clearance behind the rear bumper to open completely.
If you install an overhead cargo box on factory roof crossbars, verify overhead garage door height limits carefully before pulling in.
The OEM roof rack system has a maximum dynamic roof load rating of 100 pounds.
Exceeding this roof load capacity risks warping roof panel mounts and creating annoying cabin wind noise at highway speeds.
When loading heavy gear into the rear cargo bay, distribute weight evenly over the rear axle to protect rear suspension bushings.
Maintaining proper weight distribution saves you from unexpected suspension repairs and dangerous highway sway.
Owners interested in long-term efficiency often study toyota rav4 2016 hybrid gas mileage patterns to evaluate long-term operating costs across generations.
Practical DIY Maintenance Procedures and Torque Specifications
Performing basic scheduled service on your 2003 RAV4 saves significant money over inflated dealership service bills.
Proper mechanical assembly requires following factory torque specs to prevent loose fasteners or damaged aluminum threads.
Wheel lug nuts require exactly 76 lb-ft of torque applied in a star pattern using a calibrated torque wrench.
Oil pan drain plug torque specs call for 28 lb-ft when replacing the crush washer during routine oil changes.
Spark plugs on the 2.0L 1AZ-FE engine should be torqued precisely to 14 lb-ft into the aluminum cylinder head.
When servicing electrical systems, inspect battery terminals for corrosion and secure holding brackets properly to avoid vibration damage.
If you own newer family vehicles alongside your 2003 model, reviewing our 2019 toyota rav4 battery replacement guide gives crucial insight on modern sensor resets.
Official Toyota owner’s manuals recommend changing engine oil every 5,000 miles or 6 months using 5W-30 weight motor oil.
According to consensus across the RAV4World forum community, sticking to disciplined fluid maintenance prevents costly internal engine wear.
Overcoming Common DIY Mistakes on Second-Gen RAV4s
Working on aging vehicles requires caution to avoid breaking fragile plastic interior clips or stripping soft metal bolts.
One major error owners commit is neglecting automatic transmission ECU solder issues common on 2001 through 2003 model years.
Faulty ECU solder joints cause harsh 2-3 gear shifts, which some repair shops misdiagnose as complete transmission failure.
Always inspect electrical connections and test ECU circuits before spending thousands on unnecessary replacement gearboxes.
Another common mistake involves using incorrect power steering fluids; Toyota specifies DEXRON III ATF rather than conventional steering fluid.
When troubleshooting electronic or mechanical glitches, review known platform trends like problems with 2009 toyota rav4 to spot multi-generational Toyota design patterns.
Avoiding these simple mistakes delivers immense peace of mind and keeps your hard-earned cash in your wallet.
Frequently Asked Questions
Will modifying my 2003 RAV4 suspension alter exterior dimensions?
Yes, installing aftermarket lift kits or larger off-road tires increases overall height and ground clearance directly.
A standard 2-inch suspension lift raises the roofline to 68.1 inches and alters drive shaft operating angles slightly.
Can I fit a standard 4×8 sheet of plywood inside a 2003 RAV4?
No, a full 4×8 plywood sheet will not lay flat inside the cabin due to interior wheel well arch intrusions.
The interior width between wheel arches measures 41.3 inches, requiring plywood sheets to be transported on a roof rack.
How do 2003 RAV4 cargo limits compare to modern compact crossovers?
The 2003 model offers up to 68.3 cubic feet with rear seats removed, competing surprisingly well with modern crossovers.
Its removable rear seat design creates a flat loading floor that rivals newer utility vehicle layouts.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Understanding exact 2003 Toyota RAV4 dimensions ensures optimal garage storage, cargo loading, and confident daily driving. Team Vroomdan is dedicated to keeping your classic SUV running reliably with practical maintenance advice and honest owner tips.
Ready to get the most out of your RAV4? Check out more guides on Vroomdan or email us at contact@bryansgarage.com — our team is here to help you discover more SUV secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels (LE, XLE, Adventure, TRD, Hybrid, Prime), and individual modifications.
