Replacing your 2012 toyota camry spark plugs is one of the most effective DIY maintenance tasks you can perform to restore engine responsiveness and fuel economy. At Vroomdan, we help Toyota drivers master routine vehicle maintenance so they can eliminate expensive dealership repair bills. Swapping out worn ignition plugs fixes rough idling, hesitation, and poor gas mileage in under an hour. Beyond engine ignition service, your sedan packs clever features that dealership staff often forget to explain to buyers.
Your Camry can remote start using just your key fob.
And 9 other things Toyota never told you.
Key fob remote start · Auto-tilting reverse mirrors · Roll all windows down remotely · Radar cruise settings · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-step DIY spark plug replacement guide for 2.5L and 3.5L engines
- Factory OEM spark plug torque specifications and electrode gap sizes
- Diagnosing misfire codes, bad ignition coils, and uneven electrode wear
- Essential preventative maintenance tips to keep your Camry running smooth
- Answers to top frequently asked owner maintenance questions
Step-by-Step 2012 Toyota Camry Spark Plugs Replacement Guide
Replacing your ignition components requires basic hand tools and minimal automotive repair experience.
Before beginning the installation, park your vehicle on a flat level surface and engage the parking brake.
Allow the engine bay to cool down completely for at least one hour to prevent severe burn hazards and cylinder head thread damage.
Gather your standard 10mm socket, a 5/8-inch magnetic spark plug socket, a 6-inch socket extension, a torque wrench, and dielectric grease.
Performing a proper 2012 toyota camry spark plug replacement restores crisp throttle response and ensures complete engine combustion.
-
Step 1: Disconnect Power and Remove the Engine Cover
Disconnect the negative terminal on your 2012 toyota camry battery using a 10mm wrench.
This critical step protects sensitive engine control module electronics while servicing ignition wiring.
Grasp the decorative plastic engine cover firmly at both front corners and pull upward to release the rubber grommets.
Store the cover safely away from your working area to prevent accidental scratch marks.
-
Step 2: Unclip Harness Connectors and Remove Ignition Coils
Locate the four ignition coil packs positioned directly on top of the engine cylinder head cover.
Depress the plastic locking tab on each electrical connector and gently slide the harness plug off the coil housing.
Unbolt the single 10mm retaining bolt securing each ignition coil assembly to the valve cover.
Twist the coil boot slightly to break the seal and pull the assembly straight up out of the spark plug tube.
-
Step 3: Extract the Old Spark Plugs and Inspect Tubes
Inspect the interior of each spark plug tube for oil or coolant contamination before inserting your socket tool.
Attach a 5/8-inch deep spark plug socket to a 6-inch drive extension bar.
Lower the socket straight down over the plug until the internal rubber or magnetic holder grips the ceramic insulator.
Turn the socket handle counterclockwise to break the threads loose and unthread the old plug completely from the cylinder head.
-
Step 4: Check Gapping and Install New OEM Spark Plugs
Verify that your new Denso Iridium spark plugs maintain the correct factory gap dimension of 0.043 inches (1.1 millimeters).
Avoid scraping the delicate iridium electrode tip with wire gap tools to prevent microscopic protective coating damage.
Apply a tiny drop of anti-seize compound to the plug threads if recommended by your specific fastener supplier.
Thread the fresh plug carefully into the cylinder head by hand to prevent catastrophic thread cross-threading issues.
-
Step 5: Torque to Specification and Reassemble Coil Packs
Attach your calibrated torque wrench to the extension tool once the spark plug seats flush against the cylinder head.
Tighten the plug to exactly 13 foot-pounds (18 Newton-meters) of rotational force.
Apply a thin layer of silicone dielectric grease inside the rubber ignition coil boot tip.
Reinsert the ignition coil, tighten the 10mm securing bolt to 7 foot-pounds, and reconnect the wiring harness until it clicks.
Mastering routine DIY tasks allows you to enjoy complete driving confidence and long-term Reliability.
Our team at Vroomdan publishes practical repair procedures so every Toyota owner can service their own vehicle without stress.
Checking your 2012 toyota camry oil change intervals alongside spark plug servicing keeps your powertrain operating at peak thermal efficiency.
2012 Toyota Camry OEM Spark Plug Specifications and Gap Standards
Toyota engineers spec high-grade Denso and NGK iridium spark plugs directly from the assembly line.
Using cheap copper or standard platinum plugs reduces fuel efficiency and shortens replacement intervals significantly.
The 2.5-liter four-cylinder 2AR-FE engine requires precise heat ranges to prevent pre-ignition and knocking.
Selecting factory-approved toyota camry spark plugs maintains original fuel economy metrics and smooth idle quality.
| Engine Specification | 2.5L 4-Cylinder (2AR-FE) | 3.5L V6 (2GR-FE) |
|---|---|---|
| OEM Manufacturer | Denso / NGK | Denso / NGK |
| Part Number | Denso FK20HR11 (90919-01247) | Denso FK20HR11 / NGK ILKAR7B11 |
| Electrode Material | Fine-Wire Iridium | Fine-Wire Iridium |
| Plug Gap | 0.043 in (1.1 mm) | 0.043 in (1.1 mm) |
| Torque Specs | 13 ft-lbs (18 Nm) | 13 ft-lbs (18 Nm) |
| Service Interval | 120,000 Miles (192,000 km) | 120,000 Miles (192,000 km) |
According to official Toyota workshop manuals, fine-wire iridium plugs feature an ultra-thin center electrode tip.
This design concentrates electrical spark energy to ensure instantaneous fuel combustion during cold engine starts.
Installing non-standard gap dimensions can trigger subtle engine misfires under heavy highway acceleration load.
Drivers maintaining high-mileage vehicles should inspect their ignition components every 30,000 miles for oil build-up.

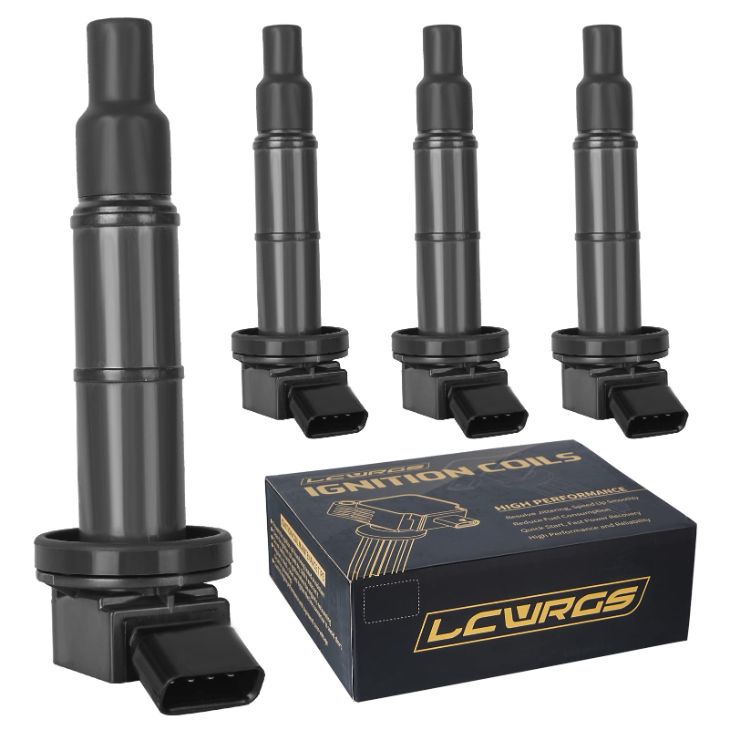

Diagnosing Engine Misfires (P0300-P0304) and Coil Wear
A worn spark plug inevitably triggers a illuminated dashboard indicator, activating an illuminated toyota camry check engine light code on your dash cluster.
Standard Diagnostic Trouble Codes (DTC) range from P0300 for random misfires to P0301 through P0304 for specific cylinder failures.
Experiencing persistent engine shaking during idle typically indicates an unspent fuel charge blowing through the exhaust manifold.
You can diagnose individual ignition coil failure by swapping suspected coils between neighboring engine cylinders.
If the error code migrates from cylinder 1 to cylinder 2, your ignition coil pack requires immediate replacement.
Ignoring continuous misfires causes unburned gasoline to enter your catalytic converter, causing expensive premature exhaust system failure.
Inspect the worn spark plug tip colors carefully to identify broader engine health conditions before installing replacement hardware.
Light tan or grayish deposits indicate balanced fuel mixture ratios and normal combustion chamber temperatures.
Black soot deposits reveal overly rich fuel mixtures, while wet oil accumulation signals valve stem seal or piston ring wear.
Addressing ignition problems promptly delivers total peace of mind on daily highway commutes.
Preventative Maintenance Routines and Long-Term Care
Maintaining a baseline maintenance schedule protects your 2012 toyota camry against sudden component breakdowns.
Combine your ignition service with air filter replacements and throttle body cleaning for maximum power output gains.
Inspect your engine drive belts, cooling hoses, and main battery cables during every major tune-up session.
Check fluid conditions regularly, ensuring your 2012 toyota camry transmission fluid remains clean and free of burnt odors.
Executing continuous preventative maintenance prevents surprise roadside breakdowns while extending vehicle operating life.
Keeping organized maintenance logbooks helps retain higher resale value when trading in your vehicle down the road.
Overcoming Common DIY Spark Plug Installation Mistakes
Novice mechanics often tighten spark plugs without using a calibrated torque wrench instrument.
Overtightening plugs strips delicate aluminum cylinder head threads, creating costly machine shop repair bills.
Under-tightening allows hot combustion gases to blow past the spark plug seal washer during heavy acceleration.
Never drop new spark plugs down the plug tube head wells without holding them securely inside a magnetic tool socket.
Impact forces from dropping plugs bend fragile ground electrodes shut, causing severe cylinder misfires upon startup.
Blow compressed air around the spark plug wells before removal to stop loose dirt particles from falling into cylinders.
Frequently Asked Questions
How often should I change 2012 Toyota Camry spark plugs?
Toyota recommends replacing factory iridium spark plugs every 120,000 miles or 12 years under normal operating conditions.
Severe driving conditions like heavy city traffic or frequent idling may require replacement around 90,000 miles.
Can I use copper spark plugs instead of iridium?
Copper plugs are not recommended because they wear out rapidly within 20,000 miles and alter ignition timing.
Always stick with factory Denso or NGK fine-wire iridium plugs to maintain optimal engine performance.
Do new spark plugs come pre-gapped from the factory?
Yes, factory OEM Denso iridium plugs arrive pre-gapped precisely to 0.043 inches (1.1 mm).
Always check the gap visually using a feeler gauge, taking care not to pressure the fragile center electrode.
What happens if I over-torque my Camry spark plugs?
Excessive torque deforms the spark plug threaded shell and strips the aluminum threads inside your engine cylinder head.
Always use a torque wrench set to 13 ft-lbs to lock the plugs safely in place.
“I’ve driven my Camry for 3 years and didn’t know it could do this.”
— The most common reaction when this article is shared
Did you know your side mirrors can automatically tilt down when you shift into reverse? Or that you can roll down all your windows from 30 feet away before getting in on a hot day?
bryansgarage.com · August 25, 2026
Conclusion
Replacing your spark plugs restores original engine response and maximizes overall fuel efficiency.
Team Vroomdan remains your trusted partner for clear, step-by-step automotive maintenance advice.
Ready to get the most out of your Camry?
Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more Camry secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
