Worn-out chevy silverado ball joints can transform your smooth highway cruiser into a noisy, unsafe handling nightmare. Whether you hear persistent suspension clunks over minor road bumps or notice erratic tire wear on your truck, diagnosing and fixing your front end quickly preserves both safety and wallet balance. Team Vroomdan provides this master-level mechanic breakdown so you can diagnose failure symptoms and perform a complete repair at home before diving into the hidden Silverado features that many owners don’t know about.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Complete step-by-step DIY installation tutorial for Chevy Silverado steering joints.
- Technical symptoms, wear tolerance checks, and physical noise diagnostics.
- Comparison breakdown: Pressed ball joints vs. complete control arm replacement.
- Crucial torque specifications, maintenance routines, and alignment steps.
Chevy Silverado Ball Joints Replacement Step-by-Step Guide
Replacing worn suspension pivots on a half-ton or heavy-duty truck requires the correct sequence and proper shop tools.
Planning ahead saves hours of frustration and prevents damage to wheel speed sensors or steering knuckle threads.
Before beginning your chevy silverado ball joint replacement, gather all necessary tools to ensure a smooth repair.
Prerequisites and Required Tools
You will need a heavy-duty floor jack, two 3-ton minimum jack stands, and wheel chocks.
Obtain a specialized chevy silverado ball joint press tool kit with appropriate receiver cups.
Prepare metric socket sets containing 15mm, 18mm, 21mm, 22mm, and 36mm socket sizes.
Keep a heavy dead-blow hammer, torque wrench rated to 250 ft-lbs, wire brush, and penetrating oil ready.
Expected completion time is approximately 3 to 4 hours for both sides on standard 4×4 models.
-
Vehicle Elevation and Wheel Removal
Park your truck on a level concrete surface and engage the parking brake firmly.
Loosen the front lug nuts slightly before elevating the front end off the ground.
Position heavy-duty jack stands securely under the solid frame rails on both sides.
Lower the truck onto the stands and remove the front wheels completely.
Safety Warning: Never rely solely on a hydraulic jack while working under heavy suspension parts.
-
Brake Caliper and Steering Linkage Disassembly
Unbolt the brake caliper mounting bracket and suspend the caliper using a bungee cord.
Relieve your tension by hanging the heavy caliper so you do not tear the delicate rubber brake line.
Remove the outer brake rotor and disconnect the ABS wheel speed sensor wire clip.
Loosen the outer steering nut connected to the outer chevy silverado tie rod end.
Strike the side of the knuckle boss with a hammer to break the taper free.
-
Separating the Steering Knuckle
Support the lower arm with a jack to prevent sudden coil spring or torsion bar unloading.
Remove the cotter pin or locking nut from the chevy silverado upper control arm ball joint mount.
Unscrew the lower retaining nut until a few threads remain attached to protect the assembly.
Use a ball joint separator or strike the knuckle firmly to release the tapered stud pins.
Carefully guide the heavy steering knuckle off the vehicle and place it aside.
-
Pressing Out Old Joints and Installing New Components
Remove the inner snap ring from the lower housing using snap ring pliers.
Assemble the C-clamp press tool using the exact matching adapter sleeve sizes.
Tighten the press bolt clockwise until the worn joint forces out of the lower arm bore.
Clean all rust scale from the internal sleeve surface using a wire wheel brush.
Press the new joint into place until the mounting flange seats completely tight against the steel.
Reinstall the brand new snap ring firmly into its retaining groove.
-
Final Reassembly and Torque Specifications
Reinstall the steering knuckle over the upper stud and lower stem pins.
Torque the lower nut to 74 ft-lbs and the upper joint nut to 37 ft-lbs plus a final 90-degree turn.
Reattach the steering linkage stem and torque the retaining fastener to 44 ft-lbs.
Remount the brake rotor, caliper bracket bolts to 148 ft-lbs, and attach the wheel assembly.
Tighten the wheel lug nuts in a star pattern to 140 ft-lbs before lowering the truck.
Completing this maintenance project yourself restores precise steering control while saving hundreds of dollars in shop labor costs.
Our editorial team at Vroomdan provides detailed guides to help truck enthusiasts complete repairs safely at home.
Technical Symptoms of Failing Ball Joints on Chevy Silverado 1500 4×4
Recognizing early failure indicators prevents catastrophic suspension separation on high-speed highways.
The most frequent warning sign on ball joints chevy silverado 1500 4×4 models is a loud metallic clunking when striking bumps.
This noise stems from excessive clearance inside the hardened steel socket housing.
As internal grease degrades, metal-on-metal friction generates popping sounds during tight low-speed turns.
A damaged internal nylon race leads to severe steering wheel wander and sloppy highway tracking.
Experiencing your truck drift across road lanes causes unnecessary driving stress and constant wheel corrections.
Uneven tread wear along the inner edge of your front tires indicates improper camber angles caused by severe vertical joint play.
According to official Chevy technical service bulletins, axial play exceeding 0.080 inches requires immediate replacement.
You can check play by placing a pry bar under the raised front tire and levering upward while watching the lower joint socket.
Any visible movement between the knuckle stud and lower body means the component has reached the end of its operational lifespan.

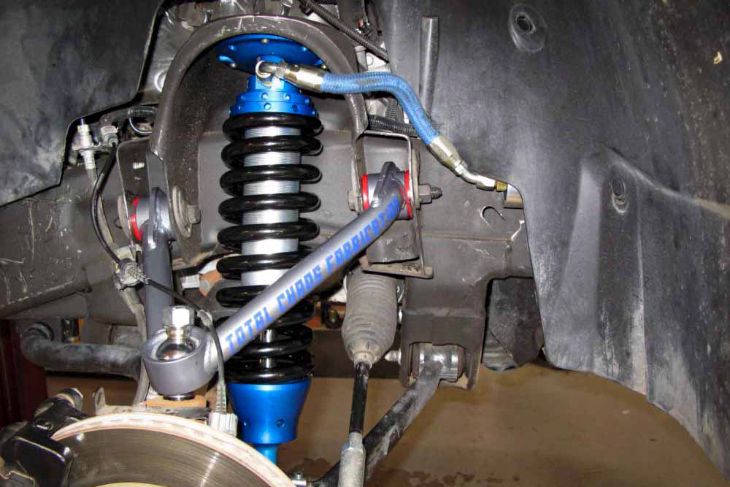

Pressed Joints vs. Entire Upper Control Arm Assembly Replacement
Modern Chevy Silverado trucks feature factory control arm configurations made from cast steel, stamped steel, or aluminum.
On many late-model trucks, replacing ball joints on chevy silverado upper positions requires swapping the complete arm structure.
The upper joint is frequently molded directly into the factory arm housing during initial manufacturing.
Installing a complete chevy silverado upper control arm unit includes pre-installed rubber frame bushings for complete front suspension refresh.
Conversely, lower joints press directly into the heavy cast iron chevy silverado lower control arm structure.
Pressing out individual lower joints remains the most cost-effective path for high-mileage truck owners.
The absolute satisfaction of renewing your front end tightens steering response back to showroom feel.
Evaluating your budget and available shop equipment determines whether pressing individual parts or bolting on arm assemblies works best.
| Repair Approach | Estimated Parts Cost | Installation Difficulty |
|---|---|---|
| Press-In Individual Joints | $30 – $60 per side | Moderate to High (Press Required) |
| Complete Arm Assembly | $110 – $220 per side | Low to Moderate (Simple Bolt-On) |
| Heavy-Duty Aftermarket Arms | $350 – $600 per pair | Moderate (Ideal for Lifted Trucks) |
Maintenance Protocols to Extend Ball Joint Lifespan
Preventative maintenance dramatically extends the life of your steering pivots under heavy towing conditions.
Aftermarket heavy-duty replacement joints often feature a greaseable housing design.
Regularly apply fresh synthetic chassis grease through the chevy silverado ball joint grease zerk fitting during oil changes.
Injecting high-quality grease purges moisture, dirt grit, and road salt away from critical bearing surfaces.
Inspect rubber dust boots during every tire rotation to verify they remain uncracked and sealed.
A torn dust boot allows road grime inside, accelerating internal joint wear within a few hundred miles.
Trucks operating in off-road environments or carrying heavy snowplows require more frequent grease intervals.
Avoiding Expensive Errors During Silverado Suspension Repair
DIY mechanics frequently make avoidable errors during ball joints chevy silverado 1500 4×4 installations.
Never strike thread shafts directly with a steel sledgehammer, which mushrooms delicate steel threads.
Avoid pressing replacement joints at crooked angles into the control arm bore.
Crooked press angles score internal housing walls and ruin the structural interference fit permanently.
Discovering a damaged control arm mid-repair causes immense stress and unexpected replacement expenses.
Always use dedicated press receiving sleeves that rest flat against the outer metal collar during installation.
Always schedule a professional wheel alignment immediately after finishing suspension repairs.
Altering control arm positions alters toe and camber settings, leading to rapid tire destruction without proper alignment calibration.
Frequently Asked Questions
How long do factory Chevy Silverado ball joints usually last?
Original factory suspension joints typically last between 80,000 and 120,000 miles under normal highway driving conditions.
Frequent off-road driving, heavy payload hauling, or aftermarket suspension lift kits reduce service life significantly.
Can I replace lower ball joints without removing the steering knuckle?
While technically possible on certain model years, removing the knuckle provides necessary clearance for pressing tools.
Removing the knuckle prevents accidental damage to wheel speed sensor cables and dust shields.
Is a professional wheel alignment necessary after replacing ball joints on chevy silverado?
Yes, a four-wheel alignment is mandatory after completing any front suspension pivot replacement.
Disassembling knuckle mounting surfaces alters camber, caster, and toe settings slightly.
Driving without an alignment rapidly wears outer tire tread blocks within a few thousand miles.
How do I know if my upper or lower joint is failing?
Upper joint failure generally causes steering wander, uneven upper tire edge wear, and light clicking sounds.
Lower joint failure produces deep metallic clunking over bumps because it supports the vehicle’s structural weight.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Diagnosing worn front end parts and performing a timely chevy silverado ball joint replacement restores factory suspension precision and driving safety.
