In This Guide
- Complete DIY repair procedure for replacing a Silverado HVAC blower fan assembly.
- Diagnostic steps to differentiate motor mechanical failure from resistor module faults.
- Technical cross-generational differences spanning GMT800, GMT900, and K2XX truck platforms.
- Essential preventative maintenance routines to protect your truck’s climate control electronics.
Diagnosing and Replacing Your Chevy Silverado Blower Motor
Replacing the HVAC fan assembly in your truck is a straight-forward repair for DIY mechanics.
Nothing ruins a long highway road trip faster than experiencing unbearable cabin heat because your climate control system stopped working.
Before ordering replacement OEM (Original Equipment Manufacturer) components, gather your tools.
Required Tools and Project Specs
- 7mm socket and 1 / 4 inch drive ratchet
- 10mm socket for battery terminal disconnection
- T15 Torx screwdriver or bit driver
- Automotive plastic trim removal tool
- LED flashlight or headlamp
- Mechanic safety glasses
- Estimated Repair Time: 45 to 60 minutes
Step-by-Step Replacement Guide
Follow these structured steps to safely remove the failed unit and restore full cabin ventilation.
Step 1: Perform System Diagnosis
Start by carrying out a noisy squeaking dead AC fan diagnosis chevy procedure inside your truck’s cabin.
Turn your key to the auxiliary position and turn the HVAC fan dial through every speed setting.
Listen closely for high-pitched chirping noises or grinding sounds coming from behind the lower dashboard.
If the fan stays silent on lower speeds but runs on high, suspect a blown resistor module.
If you hear clicking or experience zero fan rotation on any speed setting, the motor windings have failed.
Safety Warning: Disconnect the negative 10mm battery terminal before touching any under-dash wiring harness.
Step 2: Access the Passenger Under-Dash Area
Next, you must locate blower motor underneath passenger glove box on the passenger side.
Position your LED work light on the passenger floorboard to clearly illuminate the lower kick panel.
Remove the lower plastic kick panel retaining screws using your 7mm socket.
Gently pull down on the trim panel to release the plastic retaining clips without snapping the mounting tabs.
Set the trim panel aside in your truck bed to keep your working space clear.
Step 3: Disconnect Harness and Fasteners
Carefully remove 3 mounting screws wire harness chevy assemblies holding the motor unit in place.
Press the locking tab on the main electrical connector and pull it straight down from the motor housing.
Inspect the plastic connector plug for green corrosion, melted pins, or severe heat discoloration.
If the electrical plug shows heat damage, you must splice in a fresh pigtail connector.
Support the plastic motor housing with your hand while backing out the three T15 Torx mounting screws.
Step 4: Remove Old Motor and Install New Fan Assembly
Lower the old unit straight down and prepare to install replacement blower motor fan cage wheel components.
Inspect the old fan cage for trapped leaves, pine needles, or broken plastic squirrel cage fins.
Vacuum out any residual dust or debris inside the black plastic HVAC air housing duct.
Align the new replacement fan motor into position, ensuring the electrical connector faces the front bumper.
Hand-thread the three mounting screws into place to prevent cross-threading the soft plastic housing.
Tighten the fasteners to approximately 25 inch-pounds of torque using your hand ratchet.
Step 5: Reconnect Power and Verify Operation
Finish up and test all fan speed settings chevy silverado to confirm a complete fix.
Plug the electrical wiring harness securely back into the new motor receptacle until it clicks.
Reconnect your negative battery cable using your 10mm wrench.
Turn the ignition on and switch climate controls through every fan speed setting from lowest to highest.
Reinstall the lower dash trim panel and feel the immense relief of ice-cold air flowing strongly from your dash vents.
Our team at Vroomdan provides detailed guides like this to keep your truck running flawlessly without unnecessary repair costs.
Understanding Chevy Silverado HVAC Electrical Architectures Across Generations
General Motors changed climate control designs across various truck production years.

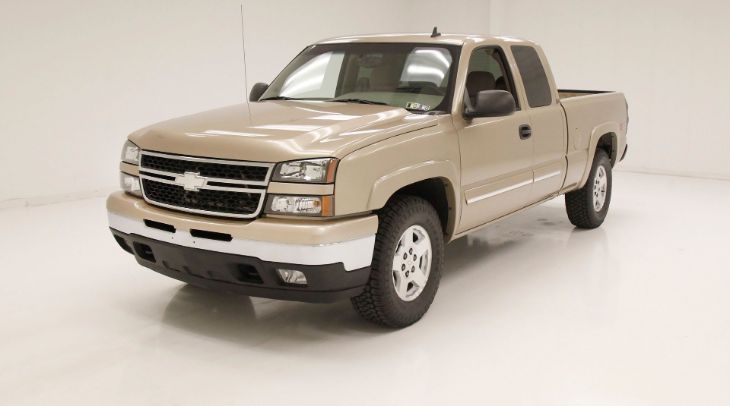

If you own an older classic, a 2006 chevy silverado blower motor system uses a stepped resistor pack.
These older setups send raw electrical current straight through thermal resistor coils located directly in the cold air stream.
However, newer generation trucks utilize pulse-width modulation (PWM) control modules to vary fan speed seamlessly.
For instance, a 2011 chevy silverado blower motor relies on a solid-state control module paired with automatic dual-zone climate controls.
Trucks built on the GMT900 platform, including the popular 2008 Chevy Silverado 1500, commonly experience harness connector overheating.
According to official Chevy service manuals, electrical resistance increases when terminals wear loose over time.
This increased electrical resistance generates high localized heat, melting the plastic connector plug long before blowing the fuse.
Completing a proper chevy silverado blower motor replacement fan fix means checking electrical harness terminals for heat damage.
Blower Motor Resistor vs. Blower Motor Failure: Technical Breakdown
Knowing the precise mechanical difference between a blown resistor and a worn motor saves both money and time.
When electric motor bearings wear out, they create mechanical drag that causes maddening squeaking noises in the cab.
This mechanical resistance draws higher current amperage, triggering diagnostic trouble codes (DTC) or burning out fuses.
| Symptom | Likely Failed Component | Recommended Solution |
|---|---|---|
| Fan operates strictly on High Speed (Speed 5) | Blower Motor Resistor Pack | Replace resistor module and inspect harness connector |
| Squeaking, grinding, or chirping from lower dash | Blower Motor Bearings | Replace complete blower motor assembly |
| Zero fan movement on any speed setting | Blown Fuse, Bad Ground, or Dead Motor | Check HVAC fuse, verify 12V power at plug, replace motor |
| Intermittent fan operation over bumpy roads | Melted Harness Wiring Plug | Splice and install a new heavy-duty pigtail harness plug |
According to master technicians on top Silverado forums, replacing both the motor and resistor simultaneously yields the best long-term reliability.
Preventative Maintenance to Extend Silverado Climate Control Life
Preventative maintenance keeps your HVAC system running quietly through winter cold snaps and summer heatwaves.

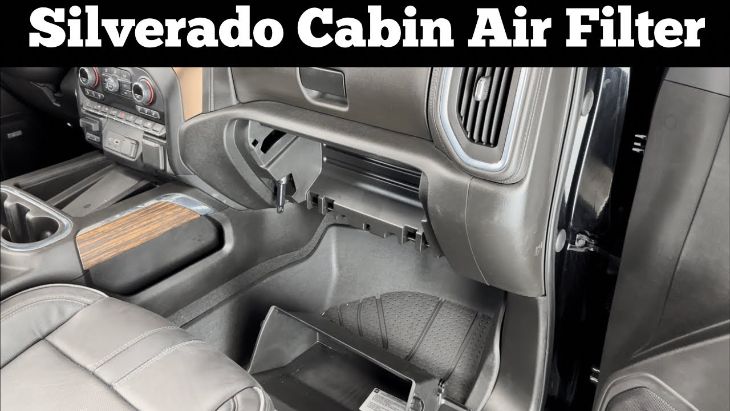

A clogged cabin air filter causes severe restriction in airflow, forcing the fan motor to work drastically harder.
Over time, restricted airflow starves the resistor module of cooling, leading to premature thermal coil burnout.
Replace your cabin air filter every 12,000 to 15,000 miles to maintain optimal system performance.
Additionally, clear fallen leaves, pine needles, and road dirt from the windshield cowl intake area regularly.
Debris falling through the cowl screen drops directly into the fan cage wheel, creating unbalanced vibrations.
Unbalanced vibrations destroy the bronze sleeve bearings inside the motor, triggering costly replacement needs.
Overcoming Common DIY Mistakes
Avoiding simple installation errors prevents unnecessary headaches and repeat repairs.
One common mistake DIYers make is over-tightening the mounting screws into the soft plastic HVAC housing box.
Stripping plastic threads prevents the motor flange from sealing tightly, leading to irritating air leaks under the dash.
Another frequent error is ignoring a slightly discolored or melted electrical wiring harness connector.
Plugging a brand-new fan motor into a heat-damaged electrical plug creates immediate high resistance, ruining your new part quickly.
Always inspect terminal pins carefully and use dielectric grease on the electrical connector during installation.
Frequently Asked Questions
Here are answers to the most common questions truck owners ask about HVAC fan repairs.
Why does my Silverado blower fan only work on high speed?
When the fan runs exclusively on high speed, your blower motor resistor module has failed.
On high speed, the climate system bypasses resistor coils completely, routing full 12-volt battery power directly to the motor fan.
Can I replace the blower motor at home without special tools?
Yes, replacing the motor requires basic hand tools including a 7mm socket, T15 Torx driver, and trim removal tools.
The entire repair takes under an hour in your driveway without requiring professional mechanical equipment.
Does a bad cabin air filter cause the HVAC fan motor to fail?
Yes, a clogged filter starves the system of air and causes the fan motor to overheat rapidly.
Restricted airflow prevents the fan motor and resistor pack from cooling down during continuous operation.
Which Silverado model years use this exact repair procedure?
This general under-dash removal procedure applies to standard Chevy Silverado trucks manufactured from 1999 through 2018.
Always consult your specific model year service manual to verify exact trim panel fastener locations.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Replacing a dead or noisy Silverado climate fan is a simple DIY job that saves hundreds in repair fees.
With basic tools, you can restore full heating and cooling airflow in under an hour.
