Experiencing lifter failure or seeking extra horsepower from your truck requires a solid master plan for your Vroomdan approved project. Tackling a complete factory upgraded chevy silverado camshaft overhaul resolves mechanical engine ticking while eliminating frustrating cylinder deactivation systems once and for all. Navigating torque specs, cam degreeing, and oiling requirements can feel overwhelming, but our step-by-step master guide ensures your V8 engine runs stronger and longer without hidden surprises.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-step camshaft swap and AFM delete installation process.
- Technical torque specs and valve train clearances for GM LS V8 engines.
- AFM and DFM mechanical bypass hardware requirements.
- Engine tuning protocols, break-in steps, and oiling solutions.
- Prevention of common DIY errors during cylinder head and cam removal.
Master Step-by-Step Chevy Silverado Camshaft Swap and AFM Delete Guide
Replacing a factory camshaft on a Gen IV or Gen V GM V8 engine resolves severe valve train failures and unleashes hidden towing power.
Many owners face crushing anxiety when diagnosing engine noise inside their truck engine bay.
A properly executed cam swap permanently restores engine reliability and performance.
Prerequisites and Required DIY Tools
Gather all mechanical hand tools and precision engine measurement instruments before unbolting your vehicle.
You need a 1/2-inch torque wrench, 3/8-inch torque wrench, harmonic balancer puller, pushrod length checker, engine assembly lube, and clean shop towels.
Plan for roughly 12 to 16 hours of total garage labor to finish this job correctly.
-
Step 1: Front Dress, Cooling System, and Cylinder Head Disassembly
Disconnect your negative battery terminal and drain the cooling system completely into a clean pan.
Remove the intake manifold, accessory drive belts, water pump, radiator, and front timing cover.
Unbolt the rocker arms, pushrods, and cylinder heads to expose the factory lifters.
Inspect cylinder walls for score marks or heat stress patterns before moving forward.
-
Step 2: Old Camshaft Extraction and Block Bearing Inspection
Thread long guide bolts into the nose of the factory camshaft to maintain mechanical control.
Carefully slide the stock shaft forward through the block bearings without scoring the soft bearing babbitt surfaces.
Check every cam journal for signs of oil starvation or metal debris contamination.

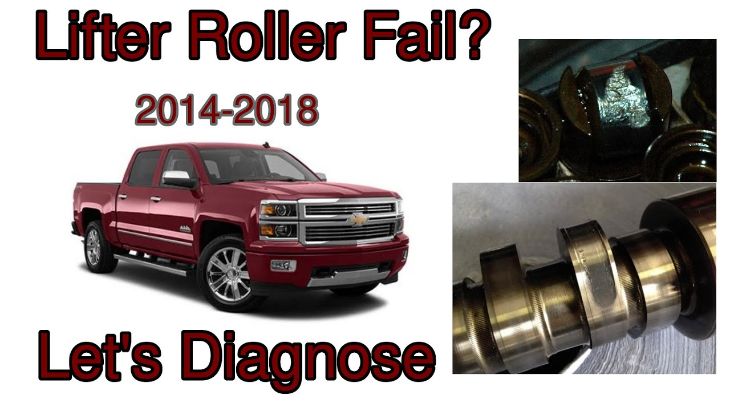

Addressing early mechanical wear caused by a failing chevy silverado lifter tick saves your engine block from total catastrophic destruction.
-
Step 3: Upgraded Camshaft Lubrication and Installation
Coat all lobes and journals of your new performance camshaft generously with high-viscosity assembly lubricant.
Gently slide the replacement shaft into the engine block using smooth rotary motions.
Rotate the shaft manually by hand to verify zero physical resistance or binding against internal bearings.
Install a new camshaft retainer plate with fresh countersunk bolts to secure proper endplay.
-

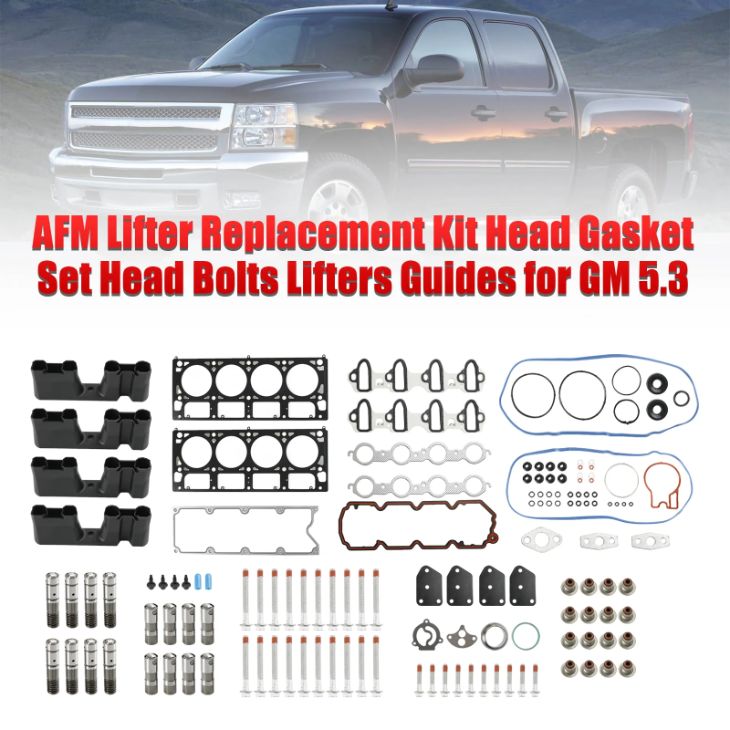

Step 4: Mechanical AFM Lifter Elimination Setup
Extract all collapsible factory lifters along with their plastic guide trays from the engine lifter bores.
Insert non-AFM LS engine lifters pre-soaked in clean motor oil into new plastic guide trays.
Install non-AFM lifter guides onto the block guides to keep lifter rollers aligned perfectly with cam lobes.
Completing a comprehensive chevy silverado afm lifter replacement guarantees lasting reliability under heavy vehicle loads.
-
Step 5: Cylinder Head Torque Sequence and Valve Train Preload
Clean head bolt threads in the block using a thread chaser tool and compressed air.
Place fresh multi-layer steel head gaskets onto block alignment dowels.
Torque new torque-to-yield cylinder head bolts using official three-pass factory torque-angle specifications.
Verify pushrod length with an adjustable checker tool to ensure optimal hydraulic lifter preload.
Executing a detailed chevy silverado cam swap demands patience, precision, and adherence to manufacturer mechanical tolerances.
At Vroomdan, we build detailed step-by-step automotive repair guides to help truck enthusiasts complete complex garage fixes with complete confidence.
Visit Vroomdan for more expert Silverado maintenance tips and detailed drivetrain repair guides.
Technical Engine Specs and Torque Values for LS and LT Engine Builds
Adhering to strict factory torque specifications prevents oil leaks, blown gaskets, and loose internal engine fasteners.
Working on a popular chevy silverado 5.3 block requires accurate torque wrenches to lock down cylinder heads and timing gears safely.
The feeling of turning the key after a clean engine build yields pure emotional exhilaration for every truck builder.
| Engine Component Fastener | Torque Specification | Required Process & Notes |
|---|---|---|
| Camshaft Retainer Plate Bolts | 11 lb-ft (15 Nm) | Apply medium-strength blue threadlocker to bolt threads. |
| Camshaft Sprocket Gear Bolts (3-Bolt) | 26 lb-ft (35 Nm) | Torque in an alternating star pattern to secure gear flat. |
| Cylinder Head Bolts (M11 Primary) | 22 lb-ft, then +90°, then +70° | Must use brand new Torque-To-Yield (TTY) bolts every time. |
| Rocker Arm Trunnion Bolts | 22 lb-ft (30 Nm) | Ensure valve is fully closed on base circle before torquing. |
| Harmonic Balancer Bolt (Final Pass) | 37 lb-ft + 140° angle | Use seating bolt first at 240 lb-ft to seat pulley onto snout. |
Building a street-ready chevy silverado with cam modifications elevates low-end engine torque across all daily driving RPM ranges.
AFM and DFM Mechanical Elimination System Protocols
Active Fuel Management (AFM) and Dynamic Fuel Management (DFM) shut down specific cylinders under light cruising conditions to save fuel.
These complex systems rely on special oil control solenoids and collapsible spring lifters.
Over time, low oil pressure or sludge accumulation causes these mechanical lifters to collapse permanently.
A failed lifter scrapes the camshaft lobe flat and releases metal shavings throughout the crankcase.
Properly bypassing chevy silverado dynamic fuel management requires installing a standard non-AFM oil valley cover board plate.
You must also block off oil riser towers inside the engine valley to prevent internal oil pressure loss.
Replacing spring-loaded factory lifters with solid hydraulic roller lifters secures stable high-rpm valve timing.
Planning a complete chevy silverado cam swap eliminates these high-failure mechanical components entirely.
Engine Tuning Protocols, Break-In Steps, and Maintenance Routine
Installing new mechanical hardware without updating software causes immediate engine misfire diagnostic trouble codes.
Your factory Engine Control Module (ECM) expects cylinder deactivation routines during operation.
Connecting a custom chevy silverado tuner reprograms engine computer maps and disables AFM software toggles.
Proper engine tuning adjusts fuel delivery rates and ignition spark timing for smooth idle stability.
Fill the engine crankcase with high-zinc (ZDDP) break-in oil to protect fresh metal contacts.
Prime engine oil passages manually before cranking the starter motor for the first time.
Run the engine at idle until coolant reaches normal operating temperature while checking for fluid leaks.
Drain the initial break-in oil after 500 miles to remove microscopic assembly particles.
Refill the crankcase with premium synthetic oil to preserve critical engine bearings.
Driving a custom chevy silverado with cam upgrades requires regular oil change schedules every 4,000 miles.
Overcoming Common DIY Installation Mistakes
Skipping precise pushrod length measurements causes noisy valve train clatter or premature valve stem wear.
Never assume stock pushrod lengths match aftermarket camshaft base circle dimensions.
Always use a mechanical checker tool to verify lifter preload between 0.050 and 0.075 inches.
Reusing factory torque-to-yield cylinder head bolts leads to head gasket failure under engine load.
Always buy fresh head bolts engineered for single-use stretch torque procedures.
Failing to clean cylinder head bolt holes allows trapped fluid to crack the cast aluminum engine block under pressure.
Performing a thorough chevy silverado camshaft replacement demands total cleanliness throughout assembly.
Frequently Asked Questions
Will performing a camshaft swap void my truck factory powertrain warranty?
Installing an aftermarket camshaft and altering ECM software voids factory powertrain warranty coverage on modified engine components.
Dealerships will reject warranty coverage for internal engine damage caused by non-OEM parts or custom computer calibrations.
Can I install a performance cam without changing factory valve springs?
High-lift performance cams require upgraded valve springs to prevent coil bind and destructive valve float at higher engine RPMs.
Always match valve spring max lift specs with your camshaft lift rating to maintain correct valve train geometry.
Is engine tuning mandatory immediately after completing an AFM delete?
Engine tuning is strictly required right after completing the mechanical installation process.
Without software updates, the ECM attempts to trigger non-existent cylinder deactivation solenoids, triggering persistent engine misfires.
How long do non-AFM lifters last compared to stock factory lifters?
Standard non-AFM hydraulic roller lifters routinely exceed 200,000 miles when supplied with clean oil changes.
Eliminating complex collapsible springs drastically reduces mechanical failure risks over the lifetime of your truck.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Upgrading your engine valve train eliminates factory AFM lifter failures while unlocking raw engine torque across your entire RPM band.
Mastering mechanical clearance measurements, torque specs, and ECM tuning ensures long-term truck durability.
