Upgrading your factory yellow halogen lamps to modern LED chevy silverado fog lights transforms night driving visibility and gives your front end an aggressive stance. At Vroomdan, we guide truck owners through simple garage projects that eliminate expensive dealership service fees. Replacing dim fog bulbs and running clean wiring is far easier than you think. You can easily master this mechanical upgrade and unlock even more powerful capabilities built right into your Silverado.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Complete step-by-step LED fog light installation and wiring procedure.
- How to properly pin and route the cabin dash switch without damaging trim.
- Understanding BCM relay control, voltage drops, and anti-flicker resistors.
- Beam optics alignment to ensure maximum down-road projection without blinding traffic.
Complete Step-by-Step Guide to Installing Chevy Silverado Fog Lights and LED Upgrades
Installing bright LED fog lamps significantly improves ground illumination during heavy fog, dense rain, and dark trail runs.
Stock halogen housings produce a weak amber beam that struggles to cut through adverse weather.
Upgrading to high-output LED assemblies gives you crisp road clarity and instant confidence behind the wheel.
Before you begin, gather a 10mm socket, a ratchet extension, plastic trim removal tools, wire strippers, and a dozen nylon zip ties.
Set aside roughly 90 minutes of quiet garage time for this complete conversion.
-
Step 1: Disconnect Battery and Access Bumper Cavity
Safety is always paramount when working with sensitive truck electronics.
Disconnect the negative terminal of your 12V battery using a 10mm wrench to prevent short circuits.

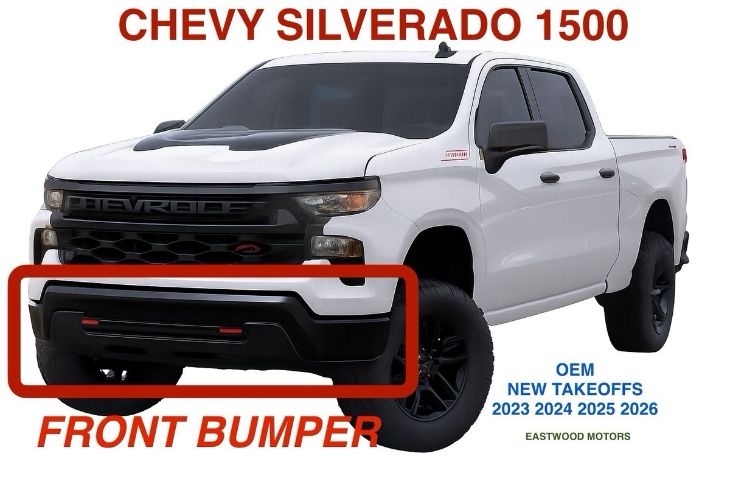

Crawl under the front bumper or loosen the inner fender liner clips using a flat trim tool.
This reveals the backside of the factory fog light mounting brackets and harness connectors.
-
Step 2: Unbolt Factory Housings and Install New LED Pods
Locate the three mounting screws securing the OEM housing to the steel bumper frame.
Carefully remove these fasteners and slide the old halogen unit out from the front.
Align your replacement LED fog housing into the factory slot until it sits flush against the bumper trim.
Hand-tighten the mounting hardware first, then torque specs should be kept low to 35 inch-pounds to avoid cracking plastic mounting tabs.
-
Step 3: Route Harness and Install the Dashboard Switch
If your truck did not feature factory fog lamps from the assembly plant, you must run a fresh relay harness.
Pass the green trigger wire through the rubber firewall grommet located near the brake pedal assembly.
Pop out the blank dashboard plate left of the steering wheel using your plastic trim tool.
Snap the new illuminated switch into place and plug it directly into your fused accessory line.
-
Step 4: Connect Relay, Secure Ground, and Test Polarity
Mount the heavy-duty 40A waterproof relay to an existing bolt on the inner fender wall.
Attach the black ring terminal ground wire to a clean chassis ground point on the frame.
Connect the main power lead with an inline fuse directly to the under-hood power distribution block.
Reconnect your battery and toggle the switch to confirm instant LED illumination.
At Vroomdan, our mission is to empower everyday drivers with practical mechanical skills so you never overpay for basic maintenance.
Electrical Wiring, Relays, and the Chevy Silverado Fog Light Switch Circuit
Understanding how your truck’s Body Control Module (BCM) manages accessory lighting circuits is crucial for a reliable install.
When working on 2004 chevy silverado fog lights, the system uses a ground-switched relay triggered by the headlight control module.
Directly tapping high-draw LED accessories into factory headlight wires causes voltage drops and dangerous thermal buildup.
Always use a dedicated four-pin relay harness to supply raw battery amperage directly to your new lights.
Installing an OEM-style chevy silverado fog light switch inside the dash gives your interior a factory-finished appearance.
According to official Chevy service manuals, matching exact wire gauge sizes prevents electrical resistance issues across long runs.
Use 14-gauge stranded copper wire for the main power feed and 18-gauge wire for the dashboard trigger circuit.
For older GMT800 trucks, including 2005 chevy silverado fog lights setups, verifying pinout locations at the fuse block saves hours of troubleshooting.
If your new LEDs flicker after turning on the engine, you need an anti-flicker pulse-width modulation (PWM) capacitor installed inline.

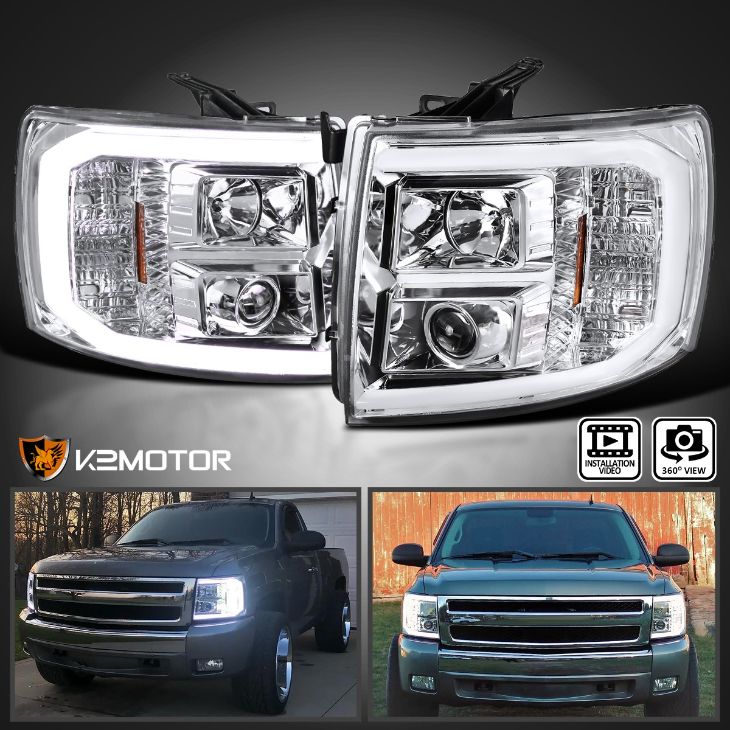

Matching your fog light performance with high-grade chevy silverado headlights ensures uniform color balance and superior night vision.
Beam Optics, Projection Angles, and Color Temperature Dynamics
Fog lights serve a completely different purpose than high-beam or low-beam driving lamps.
Headlights reflect off airborne moisture particles during heavy fog, creating a blinding wall of white glare.
Fog lights are mounted low on the front bumper to cast a wide, flat beam directly under the fog layer.
Aiming your new LED fog housings correctly is essential for maximum safety and road legality.
Park your truck on a level surface exactly 25 feet away from a flat wall or garage door.
Measure the distance from the ground to the center of your fog light lens using a tape measure.
Mark a horizontal piece of painter’s tape on the wall four inches lower than your lens height measurement.
Adjust the rear aiming screw on the housing until the top cutoff line of the beam sits right at the tape line.
Selecting the right light color temperature also drastically changes wet-weather visibility.
Pure white 6000K LED chips deliver a modern luxury look with ultra-sharp contrast on dry pavement.
Selective yellow 3000K lenses perform significantly better in heavy snow, dense fog, and torrential rain.
Yellow light waves carry longer wavelengths that pierce moisture droplets rather than reflecting back into your eyes.
Practical Application Guide and Maintenance Routines
Maintaining your auxiliary bumper lights ensures they operate reliably through harsh winter conditions and off-road trips.
Road salt and mud accumulate rapidly inside lower bumper cavities, corroding exposed electrical plugs.
Apply dielectric grease inside every weather-pack connector during your initial installation to lock out moisture.
Inspect housing seals twice a year to prevent internal lens condensation from ruining LED circuit boards.
Check the torque on your mounting bracket bolts every 10,000 miles to keep vibrations from shifting your beam alignment.
Clean acrylic lenses using gentle automotive soap rather than harsh chemical degreasers that cause micro-cracking.
Routine preventative maintenance preserves your lighting performance and saves you money on replacement parts.
Overcoming Common DIY Installation Mistakes
Avoiding frequent installation errors keeps your truck’s electrical network protected and fully operational.
Many DIY mechanics make simple oversights that lead to blown fuses or dim light output.
Review this technical comparison table before starting your project to ensure you execute every step correctly.
| Installation Factor | Common DIY Mistake | Correct Master Mechanic Solution |
|---|---|---|
| Power Source | Tapping straight into headlight power wires without a relay. | Install a standalone 40A fused relay harness directly to the battery. |
| Wire Routing | Dangling wires near hot exhaust manifolds or steering shafts. | Secure wires along factory wiring looms using UV-resistant zip ties. |
| Lens Alignment | Leaving housings un-aimed, blinding oncoming drivers on rural roads. | Set beam height 4 inches below lens center at a 25-foot distance. |
| Weather Sealing | Leaving electrical connectors exposed to road splash and mud. | Pack all harness plugs with dielectric silicone grease prior to snapping. |
Using improper wire crimp connectors allows water to migrate inside the copper strands over time.
Always use heat-shrink butt connectors and melt them down with a heat gun for a watertight seal.
Never bypass an inline fuse to solve a tripping circuit; investigate the underlying ground fault instead.
Frequently Asked Questions
Here are clear answers to the most common questions Silverado owners ask about fog light upgrades.
Will installing aftermarket LED fog lights void my factory warranty?
No, installing aftermarket accessories does not automatically void your vehicle warranty.
Under the federal Magnuson-Moss Warranty Act, dealers cannot deny coverage unless the aftermarket part directly caused a failure.
Using a clean, fused relay harness protects your original factory wiring from any potential warranty disputes.
Can I install fog lights if my truck came from the factory without them?
Yes, you can easily add fog lights to work truck trims that lacked them from the factory floor.
You will need a complete kit containing bumper bracket inserts, housing units, a wiring harness, and a cabin switch.
Pre-formed knockout panels on your front bumper trim can be popped out in minutes using basic hand tools.
Why are my new LED fog lights flickering when the engine runs?
LED flickering happens because modern truck computers send rapid voltage pulses to monitor bulb status.
Halogen filaments react slowly to these pulses, but fast-acting LEDs flash rapidly in response.
Plugging a small inline LED anti-flicker resistor or capacitor bridge into the harness fixes this issue completely.
What is the difference between spot beams and fog light flood patterns?
Spot beams project a narrow, concentrated pencil beam far down dirt trails for high-speed off-roading.
Fog lights utilize a wide horizontal beam pattern designed to illuminate ditch lines and immediate road edges.
Always select street-legal fog patterns for daily highway driving to avoid blinding other motorists.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Upgrading your fog lights improves safety, visibility, and truck appearance in under two hours.
Team Vroomdan is your trusted partner for hands-on automotive advice and reliable DIY guides.
Ready to get the most out of your truck?
Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more truck secrets and maintenance guides.
Disclaimer: Always consult your official Chevy Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
