A failing steering system in a heavy truck can turn your daily drive into an exhausting struggle. If you are noticing fluid puddles or loose steering response, replacing your chevy silverado rack and pinion will restore solid road control and save you thousands in garage labor fees. At Vroomdan, we break down complex truck maintenance into clear DIY steps so you can conquer tough garage repairs with total confidence before discovering tucked-away truck features.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Complete step-by-step removal and installation walkthrough for your steering assembly.
- Diagnosing fluid leaks, steering slop, and front-end instability.
- Essential post-replacement wheel alignment protocols to prevent severe tire wear.
- Expert tips on choosing remanufactured steering racks and avoiding costly installation mistakes.
Step-by-Step Chevy Silverado Rack and Pinion Replacement
Replacing your steering assembly is completely achievable in a home garage setting.
You can finish this repair in roughly four to six hours using standard hand tools.
Taking on this fix yourself will eliminate exorbitant dealership labor invoices that routinely exceed one thousand dollars.
Before starting, gather a heavy-duty floor jack, jack stands, socket set, tie rod puller, line wrenches, drain pan, torque wrench, and DEXRON VI fluid.
Always work on a level concrete floor with the rear wheels securely chocked for maximum safety.
-
Step 1: Secure the Truck and Lock Steering Shaft
Park the truck on level ground and lock the steering wheel completely straight.
Disconnect the negative battery cable to ensure electronic steering sensors remain safe during service.
Raise the front end of the vehicle using a heavy-duty hydraulic floor jack.
Lower the truck onto solid jack stands and remove both front wheel assemblies.
Securing the steering wheel prevents damaging the delicate clock spring inside the steering column.
-
Step 2: Disconnect Tie Rod Ends and Intermediate Shaft
Remove the cotter pin and castle nut holding the outer tie rod to the steering knuckle.
Use a tie rod puller tool to pop the tapered shaft free from the knuckle.
Inspect the worn chevy silverado tie rod for torn rubber boots or loose ball joints.
Locate the pinch bolt on the intermediate steering shaft coupler near the rack input shaft.
Remove the pinch bolt completely and slide the steering shaft assembly upward off the splines.
-
Step 3: Disconnect Hydraulic Lines and Drain Fluid
Position a large catch pan directly underneath the steering assembly hydraulic line connections.
Use flare nut line wrenches to loosen the high-pressure and return fluid lines.
Allow all remaining power steering fluid to drain completely into your catch container.
Inspect the line fittings for corrosion or stripped threads that could cause future fluid loss.
Keep a clean shop towel handy to prevent dust from entering the open hydraulic ports.
-
Step 4: Unbolt and Remove the Rack Assembly
Locate the main mounting bolts securing the unit to the front frame crossmember.
Use a long breaker bar and heavy socket to break the tight mounting hardware free.
Carefully support the heavy rack assembly as you pull the final mounting bolt through.
Maneuver the entire rack assembly out through the driver side wheel well opening.
Compare your original unit directly with the new unit to verify matching mounting points.
-
Step 5: Mount New Rack and Reconnect Steering Components
Slide the new steering unit into place through the lower frame crossmember opening.
Insert the main mounting bolts and torque them to factory Chevrolet specifications.
Attach the hydraulic lines carefully by hand to avoid cross-threading the fine aluminum threads.
Connect the intermediate steering shaft coupler and torque the pinch bolt tightly.
Reattach the outer tie rods to the steering knuckles and secure them with fresh cotter pins.
-
Step 6: Refill Hydraulic System and Bleed Air
Fill the fluid reservoir with fresh DEXRON VI power steering fluid.
Raise the front wheels off the ground and turn the steering wheel lock-to-lock twenty times.

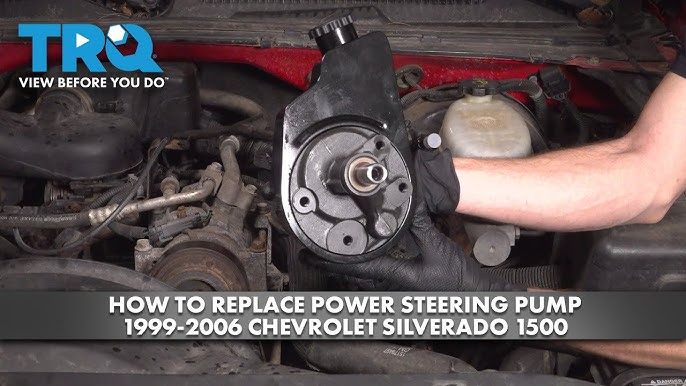

This manual purging process forces trapped air pockets out without overworking the chevy silverado power steering pump.
Start the engine and check fluid levels while watching closely for active leaks.
Top off fluid as needed until the power steering reservoir maintains a steady operating level.
At Vroomdan, our team brings real wrenching experience to every repair guide we publish.
Our practical step-by-step approach gives truck owners the exact confidence needed to handle complex garage projects safely.
Understanding Rack and Pinion Mechanics vs Steering Gear Box
Evaluating steering slop requires understanding how different Silverado generations handle front-end geometry.
Older light trucks utilized an older heavy-duty chevy silverado steering gear box paired with pitman arms and center links.
Modern half-ton Silverado platforms transitioned to a rack and pinion chevy silverado system for sharper response and lighter weight.
When internal seals wear out on these rack assemblies, hydraulic fluid quickly migrates into the rubber dust bellows.
This internal seal failure creates a persistent chevy silverado power steering leak that eventually starves the pump of vital fluid.
Truck owners working on a 2000 chevy silverado rack and pinion setup often encounter heavy rust on frame mounting hardware.
Similarly, replacing a 2004 chevy silverado rack and pinion requires careful attention to line fittings to prevent slow fluid weepage.
According to Chevrolet service documentation, replacing worn rack bushings eliminates mysterious front-end clunks over road obstacles.
Experiencing precise steering feedback after a grueling repair brings incredible satisfaction and pride to any truck enthusiast.
Crucial Wheel Alignment Protocol Post-Replacement
Installing a new steering assembly alters your front suspension toe settings immediately.
Driving your truck without performing a wheel alignment will cause rapid tire tread destruction within a few hundred miles.
You must perform a rough tape-measure alignment before driving your truck down to a professional alignment shop.
Measure the distance between the front edge of the front tires and compare it with the rear edge distance.
Adjust the outer tie rod shafts until the front wheels sit roughly parallel with total toe close to zero degrees.
Refer to factory Chevrolet torque specifications during final hardware tightening to maintain structural safety under heavy loads.
| Component / Fastener | Torque Specification (ft-lbs) | Maintenance Service Notes |
|---|---|---|
| Rack Mounting Bolts | 85 ft-lbs | Use new locking nuts or blue threadlocker upon installation. |
| Outer Tie Rod Jam Nut | 50 ft-lbs | Hold inner tie rod flat with wrench while torquing jam nut. |
| Tie Rod to Knuckle Nut | 44 ft-lbs | Tighten further only to align cotter pin hole; never loosen. |
| Intermediate Shaft Pinch Bolt | 35 ft-lbs | Verify full spline engagement before securing pinch bolt. |
Practical Application and Maintenance Protocol
Proactive steering maintenance protects your mechanical investment and keeps your truck handling predictably on long highway hauls.
Check power steering fluid color and level every oil change interval to catch tiny leaks early.
Dark, burnt fluid indicates thermal breakdown that rapidly degrades internal rack seals and pump vanes.
Inspect outer tie rod dust boots for cracks or grease loss whenever you rotate your tires.
Addressing small steering anomalies early prevents sudden mechanical failures while towing heavy cargo trailers.
Eliminating loose steering play restores tremendous confidence behind the wheel during stormy driving conditions.
Overcoming Common DIY Installation Mistakes
The most frequent DIY mistake is failing to bleed trapped air from the hydraulic lines before starting the engine.
Dry-running a power steering system creates intense pump cavitation and damages brand-new rack seals instantly.
Another common mistake is forcing cross-threaded hydraulic line fittings into soft aluminum housing threads.
Always start every fluid line fitting by hand for three full turns before applying line wrenches.
Forgetting to lock the steering wheel leads to expensive clock spring breakage when the wheel spins freely during service.
Avoiding these simple oversights saves you from devastating financial setbacks and wasted weekends in the garage.
Frequently Asked Questions
Can I replace a Silverado rack and pinion without removing the front axle?
Yes, on 4WD Silverado models, you can maneuver the rack out without pulling the front differential axle shafts.
Unbolting the front sway bar links provides sufficient clearance to slide the rack out through the driver side wheel well.
Should I choose a remanufactured steering rack or a new OEM unit?
New OEM units offer maximum reliability and factory warranty protection for long-term vehicle ownership.
High-quality remanufactured steering rack units from reputable manufacturers provide reliable performance while offering substantial cost savings for budget-conscious truck owners.
How do I know if my inner tie rod ends are bad versus the rack itself?
Lift the wheel off the ground and shake it side-to-side while holding the inner tie rod boot.
If you feel clunking movement inside the boot shell, the inner tie rod ball joint requires replacement.
If fluid is leaking out of the rubber boot bellows, the internal hydraulic seals of the rack have failed completely.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Replacing your steering assembly brings back tight, precise control to your Chevy Silverado while saving significant money on repair bills.
Team Vroomdan is dedicated to giving you clear, reliable garage knowledge for every truck maintenance project.
Ready to get the most out of your truck? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more truck secrets and maintenance guides.
Disclaimer: Always consult your official Chevy Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
