- Step-by-step teardown and setup for a complete rebuild of a chevy silverado rear end.
- How to identify 10-bolt versus 14-bolt differential setups across popular model years.
- Decoding glove box RPO codes to select the right gear ratios for towing and efficiency.
- Preventative fluid changes and breaking in new ring and pinion gear sets.
- Avoiding costly backlash and gear contact pattern mistakes during DIY assembly.
Complete Guide to Rebuilding Your Chevy Silverado Rear End
Rebuilding a differential assembly requires precise measurements, correct specialty tools, and patient attention to detail.
Experiencing persistent gear hum or metal shavings in your differential fluid indicates that internal bearings or gear teeth have failed.
Performing a full overhaul restores quiet operation and protects your axle housing from catastrophic structural damage.
To complete this project safely, gather a torque wrench, socket set, dial indicator, micrometer, gear marking compound, carrier shims, and a specialized chevy silverado rear axle bearing puller tool.
Expect this job to take roughly six to eight hours in a home garage setting.
Step 1: Drain Differential Fluid and Remove the Axle Cover
Position your truck on level ground, engage the emergency brake, and securely elevate the rear frame on heavy-duty jack stands.
Place a broad drain pan directly under the rear axle assembly.
Loosen the half-inch cover bolts starting from the bottom, allowing the fluid to drain completely out of the housing.
Inspect the inside of the stamped steel cover for metal flakes or broken gear teeth.
Step 2: Axle Shaft Disassembly and Carrier Clearance
Remove the rear brake calipers, brake brackets, and brake rotors from both wheel hubs.
Rotate the differential carrier to access the small lock bolt securing the main pinion shaft.
Unscrew the lock bolt, slide out the shaft, and perform a clean chevy silverado axle c clip removal by gently pushing the axle shafts inward toward the center spool.
Slide both axle shafts completely out of the axle tubes.
Step 3: Extract Carrier, Pinion Gear, and Outer Bearings
Mark the carrier bearing caps to ensure they return to their exact original sides and orientation during reassembly.
Unbolt the bearing caps and carefully pry the carrier assembly out of the housing using a brass pry bar.
Unscrew the rear driveshaft, remove the pinion nut with an impact wrench, and drive the pinion gear backward into the axle housing.
Use a heavy slide hammer to pull the old race cups and shaft bearings out of the axle ends.
Step 4: Press New Bearings, Set Backlash, and Paint Gear Pattern
Press brand new tapered roller bearings onto the pinion shaft and carrier body using a mechanical hydraulic press.
Install the new pinion gear into the housing using fresh crush sleeves to achieve the correct rotational preload.
Reinstall the carrier with selected side shims to set carrier bearing preload and align tooth backlash.
Mount a dial indicator against a ring gear tooth to verify that backlash falls strictly between 0.006 and 0.010 inches.
Step 5: Replace Outer Seals, Seals, and Reassemble
Drive a fresh chevy silverado rear axle seal into each side of the outer axle housing to prevent oil leaks onto your rear brakes.
Reinsert the axle shafts, reinstall the retention C-clips, slide the central lock shaft back into place, and torque the retaining pin.
Apply high-temp RTV silicone sealant to the cleaned cover surface, bolt the cover back down, and fill the differential with gear oil.
At Vroomdan, we believe truck owners should never feel intimidated by complex mechanical repairs or forced to pay excessive dealership labor rates. You can find comprehensive repair walkthroughs, torque charts, and maintenance advice directly on Vroomdan to keep your truck running smoothly for hundreds of thousands of miles.
Identifying 10-Bolt vs 14-Bolt Axles Across Silverado Model Years
General Motors installed various differential configurations into Silverado trucks depending on payload ratings, engine sizes, and model generations.
The standard 8.5-inch or 8.6-inch 10-bolt differential setup served as the foundation for light-duty half-ton trucks for decades.
If you own a 2000 chevy silverado 1500 rear end assembly, it likely features an oval-shaped 10-bolt differential cover housing an 8.6-inch ring gear.
Heavy-duty packages and trailering trims were frequently upgraded with larger 9.5-inch or 10.5-inch 14-bolt semi-floating and full-floating rear axles.
Replacing components on a 2001 chevy silverado rear end requires verifying bolt patterns because 10-bolt and 14-bolt parts are not interchangeable.

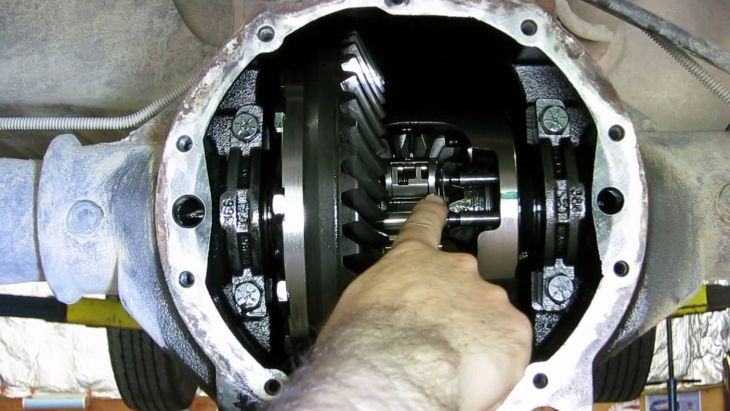

Many half-ton models feature an factory Eaton G80 automatic chevy silverado locking differential that uses flyweight latches to lock both rear wheels when traction drops.
Inspecting your differential housing shape before purchasing replacement parts prevents frustrating project delays caused by receiving incorrect components.
Understanding Differential Gear Ratios and RPO Glove Box Codes
Selecting the correct ring and pinion gear ratio determines your truck’s off-the-line towing power and overall highway fuel efficiency.
When searching for a replacement rear end for 2005 chevy silverado trucks, matching your factory gear ratio is critical for maintaining correct speedometer readings and transmission shift points.
You can identify your factory axle ratio by opening your glove box and locating the white Regular Production Option (RPO) sticker.
| RPO Code | Differential Gear Ratio | Primary Performance Trait |
|---|---|---|
| GU6 | 3.42 : 1 | Balanced highway cruise RPM and fuel efficiency |
| GT4 | 3.73 : 1 | Optimal combination of acceleration and towing capacity |
| GT5 / GT8 | 4.10 : 1 | Maximum low-end pulling torque for heavy trailer loads |
| G80 | Mechanical Locker | Automatic full axle locking engagement under wheel slip |
Installing numerically higher gears like 4.10s improves heavy trailer acceleration but increases engine RPM at highway speeds.
Installing a 2000 chevy silverado 1500 rear end with 3.42 gears keeps highway cruising RPM low, saving fuel during daily commutes.
Four-wheel-drive trucks require identical gear ratios in both front and rear differentials to avoid destroying transfer case components.
Practical Application Guide & Differential Maintenance Protocols
Proper maintenance prevents early bearing failure and protects differential gears from extreme heat and friction.
Performing a routine chevy silverado rear differential fluid change every 45,000 miles clears out tiny metal particles and preserves internal gear coatings.
Always fill your differential housing with high-quality synthetic 75W-90 or 75W-140 gear lube according to GM vehicle specifications.
Servicing a 2001 chevy silverado rear end after severe off-road driving or water crossings prevents water contamination from rusting precision internal bearings.
Newly installed ring and pinion gear sets require a strict break-in procedure during their initial 500 operating miles.
Drive gently for short 15-minute intervals, allowing the gears to cool completely between cycles to set smooth gear patterns.
Avoid heavy towing or full-throttle acceleration until you change the fluid following the 500-mile break-in period.
Maintaining a heavy-duty rear end for 2005 chevy silverado trucks ensures dependable performance during demanding work cycles.
Overcoming Common DIY Mistakes During Rear End Overhauls
One common mistake during a differential rebuild is incorrectly setting the pinion gear bearing preload.
Under-tightening the pinion nut leaves rotational play that quickly destroys ring gear teeth under heavy torque loads.
Over-tightening crushes the crush sleeve too far, forcing you to throw it away and restart assembly with a new sleeve.
Skipping gear marking compound leads to improper backlash settings that cause loud gear whine at highway speeds.
Failing to add limited-slip friction modifier additives to G80 clutch systems causes aggressive chattering during tight parking turns.
Frequently Asked Questions
How do I know if my rear end needs a rebuild or total replacement?
Persistent howling noises that change tone during acceleration usually indicate worn carrier or pinion bearings that can be rebuilt.
Severe clunking, missing gear teeth, or cracked outer housings mean replacing the entire axle assembly is the most cost-effective path forward.
Can I change my rear gear ratio without altering the front differential on a 4WD Silverado?
No, you must never operate a 4WD truck with mismatching front and rear differential gear ratios.
Binding will destroy your transfer case instantly when 4WD is engaged on loose surfaces.
What specialized tools are required for a differential gear gear overhaul?
You will need a dial indicator with a magnetic base, gear marking compound, a bearing separator, a torque wrench, and a specialized puller set.
How much gear lube does a Silverado 1500 rear end hold?
Most standard 10-bolt rear differentials require approximately 2.1 to 2.4 quarts of synthetic gear lubricant to reach the fill plug line.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Rebuilding your Chevy Silverado rear end restores quiet operation, delivers smooth towing performance, and saves you money on service center fees.
Taking time to set correct backlash tolerances ensures your truck stays reliable for years to come.
