Hearing a harsh grinding noise or staring at a dreaded Service 4WD warning light can trigger immediate dread for any truck owner. At Vroomdan, we know how vital your chevy silverado transfer case is when tackling tough jobs, towing heavy trailers, or navigating icy winter highways. Nothing beats the absolute relief of fixing a stubborn four-wheel drive shift issue yourself without paying steep dealership labor fees. Let us walk you through the precise mechanical solutions to restore your truck’s transfer case while unlocking high-value maintenance secrets today.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-Step Replacement: How to diagnose and swap an encoder motor safely at home.
- Diagnostic Insights: Understanding front axle engagement and actuator electrical faults.
- Preventative Solutions: Preventing pump rub pinhole leaks and selecting correct fluids.
- Maintenance Specs: Essential torque ratings and fluid capacity charts.

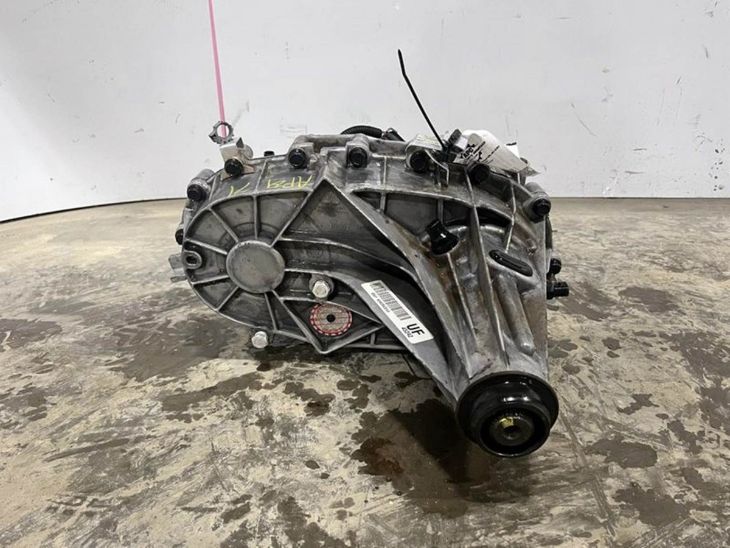

How to Replace Your Chevy Silverado Transfer Case Encoder Motor
Replacing a failed encoder motor is one of the most effective DIY repairs for restoring your four-wheel drive system.
When the internal position sensor fails inside the motor housing, your dash switch will flash relentlessly and lock out gear selection.
Experiencing this unexpected lock-out can cause intense frustration when you need traction most.
Fortunately, you can complete this repair in your garage with standard hand tools in under two hours.
Required Tools and Preparation
Before getting under the vehicle, gather your required tools to ensure a seamless repair process.
You will need a 10mm socket, a 15mm socket, a torque wrench, a flathead screwdriver, and wire cleaner.
Make sure to wear approved eye protection and secure your truck on level ground using heavy-duty wheel chocks.
If you drive a 2004 chevy silverado transfer case model, ensure your vehicle is parked in Neutral with the parking brake firmly set.
Step 1: Safety Disconnection and Underbody Access
Always disconnect the negative battery terminal before touching any electronic drive control components.
Locate the protective skid plate underneath the midsection of your chevy silverado 1500 transfer case assembly.
Use your 15mm socket to unbolt the retaining fasteners holding the metal skid plate to the frame rails.
Set the skid plate aside carefully to reveal clear access to the transfer case side housing.
Step 2: Disconnecting Electrical Connectors
Locate the electrical harness attached directly to the encoder motor housing.
Gently pull back the locking plastic safety tab using a small flathead screwdriver.
Press the release lever and pull the wiring connector straight out from the motor body.
Inspect the harness pins thoroughly for any signs of green corrosion or bent terminal contacts.
Step 3: Removing the Driveshaft and Motor Bolts
On specific AutoTrac configurations, unbolt the front driveshaft yoke to gain extra hand clearance.
Support the motor housing with one hand while using a 10mm socket to remove the mounting bolts.
Carefully slide the old encoder motor off the splined selector shaft extending from the transfer case.
Avoid forcing or twisting the internal splines during this removal process.
Step 4: Aligning and Installing the New Unit
Compare the selector shaft position on the new motor to ensure it matches the physical shaft position on the transfer case.
Never manually force the splines on the transfer case shaft to fit a misaligned motor.
Slide the new encoder motor smoothly onto the splined shaft until it sits completely flush against the mounting surface.
Hand-tighten the mounting bolts before torquing them to exactly 15 ft-lbs using your torque wrench.
Step 5: Reconnecting and System Calibration
Apply a thin layer of dielectric grease to the harness pins to prevent future moisture intrusion.
Plug the electrical harness connector back in until you hear an audible click from the locking tab.
Reattach the front driveshaft if it was removed, torquing yoke straps to 19 ft-lbs.
Reconnect your negative battery cable to restore power to the transfer case control module.
Turn the ignition key to ON without starting the engine, and allow the system 30 seconds to self-calibrate.
Cycle through 2HI, 4HI, and 4LO to verify smooth engagement without error messages.
At Vroomdan, we believe that taking control of your truck maintenance yields unbeatable satisfaction and massive long-term financial savings.
Explore more technical guides and step-by-step repair walkthroughs at Vroomdan to keep your Silverado running at peak performance.
Diagnosing Service 4WD Warnings and Axle Actuator Glitches
When your dashboard illuminates the dreaded warning light, getting to the root cause requires systematic elimination.
According to official Chevy service bulletins, shift refusal is frequently caused by a faulty front differential actuator rather than the transfer case itself.
A failed 4wd actuator chevy silverado unit prevents the front axle from locking when four-wheel drive is requested by the driver.
If you hear the transfer case click but the front wheels do not pull, test the thermal front axle actuator using a multimeter.
Checking electrical continuity ensures you do not waste money replacing functional components unnecessarily.
Addressing a persistent chevy silverado service 4wd message promptly prevents potential damage to front differential locking gears.
Silverado forum members often highlight ground wire corrosion located under the driver-side frame rail as another hidden cause of shift refusal.
Cleaning this frame ground restores clear voltage signals between the dash selector switch and the transfer case control module.
Understanding Pump Rub and Essential Transfer Case Specifications
One of the most insidious problems affecting GMT800 and early GMT900 trucks is internal fluid loss caused by pump rub.
Inside models like the NP261HD and NP263HD, the internal oil pump tabs slowly wear through the magnesium rear housing over time.
This creates a microscopic pinhole leak high on the case that drains fluid unnoticed while driving down the road.
Running out of fluid starves internal planetary gears, resulting in catastrophic structural failure at highway speeds.
Installing a specialized chevy silverado transfer case pump rub kit protects your housing permanently with reinforced contact plates.
Regular maintenance is equally crucial, requiring periodic fluid drainage and level inspections.
When performing maintenance, always inspect the threads on your chevy silverado transfer case drain plug for metallic shavings or fluid contamination.
Using improper fluid types can destroy internal friction clutches inside modern automatic transfer case assemblies.
Refer to the official factory specification table below to choose the precise fluid and torque settings for your truck:
| Transfer Case Model | Recommended Fluid Type | Fluid Capacity (Quarts) |
|---|---|---|
| NV246 / NP246 (AutoTrac) | GM AutoTrac II Fluid | 2.0 Quarts |
| NP261 / NP263 (Manual/HD) | Dexron VI ATF / Synthetic 5W-30 | 2.0 – 2.4 Quarts |
| MP3023 / MP3024 (2007+) | Dexron VI Automatic Transmission Fluid | 1.6 Quarts |
Completing a full chevy silverado transfer case fluid change every 45,000 miles guarantees smooth shifting and extends internal component lifespan.
If you frequently tow heavy trailers or operate in severe conditions, reduce that fluid replacement interval to 30,000 miles.
If you own an older 2004 chevy silverado transfer case unit, double-check that your housing has not already suffered structural pinhole leaks.
Practical Driving Practices and Preventative Maintenance
Adopting proper shift habits preserves the mechanical integrity of your four-wheel drive drivetrain for hundreds of thousands of miles.
Never engage 4HI or 4LO on dry asphalt roads, as driveline bind can shatter internal transfer case chains and output shafts.
When engaging 4LO, always stop the truck completely and shift your transmission into Neutral before pressing the dash button.
If you operate a chevy silverado 4×4 in wet or patchy snow conditions, Auto mode provides seamless torque distribution without manual gear switching.
Periodically exercise your transfer case by shifting into 4WD once a month on dirt trails to keep internal seals properly lubricated.
Overcoming Common DIY Maintenance Mistakes
Many home mechanics make the critical mistake of over-tightening aluminum case drain plugs during routine fluid changes.
Over-torquing the drain or fill plug can easily crack the fragile magnesium or aluminum housing, resulting in expensive replacement bills.
Always use a manual torque wrench set precisely to 15 ft-lbs when re-installing transfer case fill and drain plugs.
Another frequent mistake is failing to replace sealing washers or using generic automatic transmission fluid in AutoTrac transfer cases.
Standard ATF lacks friction modifiers required for AutoTrac clutch packs, leading to severe chatter and premature internal clutch burn out.
Lastly, ensure the replacement 4wd actuator chevy silverado housing is fully seated before securing retaining bolts to prevent crooked installation.
Frequently Asked Questions
Can I drive my Silverado if the transfer case encoder motor is unplugged?
Yes, you can drive safely in two-wheel drive mode if the encoder motor electrical connector is completely disconnected.
However, your four-wheel drive system will remain entirely disabled, and a warning message will persist on your instrument cluster.
Ensure the exposed harness connector is protected from road salt and moisture using electrical tape until repairs are finished.
How do I know if my transfer case fluid is low?
Low fluid manifests as a whining noise under acceleration, sluggish gear engagement, or elevated floorboard operating temperatures.
To verify fluid level, park on a level surface, remove the top fill plug, and check if fluid rests just below the fill hole edge.
Which transfer case models are installed in the chevy silverado 1500 transfer case lineup?
Half-ton Silverados typically feature NP246 AutoTrac units in earlier models or Magna Powertrain MP3023/MP3024 units in modern generations.
Heavy-duty trucks utilize manual shift NP261 or electronic NP263 transfer cases designed for extreme torque demands.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Conclusion
Maintaining your transfer case encoder motor and fluid health ensures reliable four-wheel drive capability whenever severe weather strikes.
By executing these straightforward mechanical repairs yourself, you protect your truck drivetrain while avoiding thousands in repair expenses.
