In This Guide
- Step-by-Step DIY Tutorial: Clear, highly detailed mounting process for standard truck beds.
- Bed Dimensions Validation: Ensure your truck box configuration matches your chosen cover flawlessly.
- Water Intrusion Solutions: Pro techniques to seal rubber gaskets and connect water drain tubes.
- DIY Pitfall Prevention: Avoid stripped aluminum clamps, crooked rails, and warped panels.
Complete Ford F150 Bed Cover Installation Steps and Tutorial
Completing this project at home will save you substantial dealership service fees.
You will need a standard socket set with a 10mm socket, a T30 Torx driver, and a spring-loaded tape measure.
A reliable utility knife and a clean microfiber cloth with rubbing alcohol are also essential.
Set aside approximately 45 to 60 minutes of uninterrupted garage time to complete this job.
Make sure your truck bed is completely clean and dry before unboxing your new cover components.
Follow these structural steps to achieve a robust mount that handles highway wind and heavy rain with ease.
Step 1: Clean and Prepare the Bed Rails
You must remove all debris, dust, and wax from the top of the metal bed rails first.
Wipe the surface thoroughly using isopropyl alcohol on a clean microfiber towel.
Skipping this crucial cleaning step will cause your weather stripping adhesive to fail prematurely, leaving your expensive gear vulnerable to moisture.
Allow the metal surfaces to dry completely for five minutes before applying any rubber seals.
Step 2: Position the Side Mounting Rails
Place the left and right mounting rails on top of your utility bed cap.
Push the rails forward until they butt firmly against the front bulkhead nearest to the cab.
Use a spring clamp to hold the rails temporarily in place while you prepare the mounting clamps.
Ensure the rails remain perfectly level and flat along the entire length of the bed box.
Step 3: Secure the Mounting Clamps to the Bed Outer Lips
Space your clamps evenly according to the manufacturer specifications for your specific bed length.
Hand-tighten the mounting bolts first to prevent cross-threading the aluminum brackets.
Use a manual torque wrench to tighten the bolts to the recommended torque specs of 75 inch-pounds.
Overtightening these clamps is a common mistake that can permanently warp your metal rails and cause a frustrating misalignment.
Step 4: Place and Align the Main Tonneau Assembly

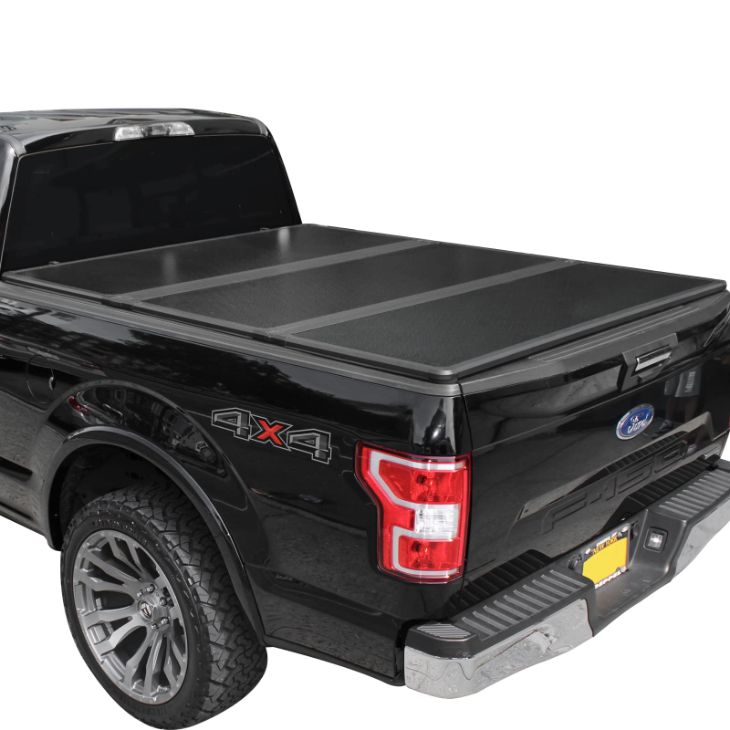

Lift the main ford f150 tri fold tonneau cover assembly onto the front rails near the cab.
Center the cover housing perfectly between the left and right rails using a tape measure.
Fasten the front storage straps and latch mechanisms securely to the integrated mounting points.
Unfold or roll out the cover slowly to verify that it meets the rear tailgate with a tight seal.
Step 5: Install the Water Drain Tubes
Locate the pre-drilled drain holes near the front cab corners of your truck bed.
Insert the plastic drain tubes into the bottom of the tonneau rail channels.
Route the other end of the tubes through the factory plastic bed plugs or the gap in the bed floor.
Neglecting these drain tubes will result in standing water pooling inside your truck bed, causing rust and mold.
At Vroomdan, we are dedicated to helping you protect your truck while saving money on simple garage projects.
Our deep technical guides walk you through every aspect of F-150 maintenance so you can avoid overpriced dealer work.
Understanding Your F-150 Bed Dimensions and Cover Compatibility
Before ordering any ford f150 tonneau covers, you must verify your exact bed length.
Ford designs the F-150 with three primary bed sizes across various model years: the 5.5-foot short bed, the 6.5-foot standard bed, and the 8-foot long bed.
You should measure from the inside of the bulkhead to the inside of the tailgate to get accurate ford f150 bed dimensions.
Choosing between a ford f150 soft roll up cover and a hard folding option depends heavily on your daily storage needs.
A soft roll-up style offers full bed access and a sleek profile without breaking your budget.
Meanwhile, premium hard shells provide ultimate security against theft and harsh winter blizzards.
Completing a tonneau cover install f150 project successfully requires using specific hardware that matches your exact truck generation.
Always review the vehicle fitment notes carefully because mounting setups can shift between different model years.
| Cover Type | Primary Benefit | Security Level |
|---|---|---|
| Soft Roll-Up | Low budget, quick bed access | Basic weather protection |
| Hard Tri-Fold | Heavy load capacity, sleek look | High security lock system |
| Retractable | Smooth rolling, low profile | Maximum security metal construction |
Water Intrusion Prevention: Advanced Seals and Bed Liners
Keeping your truck bed completely dry requires understanding how water moves around the tailgate area.
A quality ford f150 roll up tonneau cover relies on a rubber bulb seal along the front bulkhead to block high-speed rain.
If you have installed plastic or spray-in ford f150 bed liners, you may need to modify the weather seal thickness.
Some drop-in liners cover the factory drainage channels, which can cause water to collect at the cab corners.
Finding wet cargo in your truck bed after a long road trip is incredibly frustrating and entirely preventable.
We recommend installing an additional tailgate seal kit to block water and dust from entering through the rear side gaps.
Take your time during a tonneau cover install f150 process to check that the perimeter seal is compressed evenly by approximately fifty percent.
This balance ensures the cover stays waterproof without straining the locking latches.
Practical Application Guide and Tonneau Cover Maintenance
Proper preventative maintenance will extend the life of your vinyl or aluminum bed cover by several years.
You should wash your cover with mild car soap and warm water at least once a month.
Avoid using petroleum-based conditioners on vinyl covers, as they can accelerate UV damage and cause cracking.
Regularly spray a dry silicone lubricant into the aluminum track channels of retractable covers to maintain smooth operation.
Inspect all mounting clamps and track bolts every six months to ensure they remain secured to the correct torque specs.
Taking ten minutes to check your clamps before a long highway trip provides immense peace of mind and prevents a catastrophic cover loss on the road.
Keep these technical tips in mind to protect your investment and maintain a clean cargo space.
Overcoming Common DIY Installation Mistakes
Many truck owners make the critical error of using power impact wrenches to tighten aluminum clamps.
Impact tools will strip the soft aluminum threads instantly, requiring you to buy expensive replacement OEM parts.
Another mistake is forgetting to align the cover perfectly square with the tailgate before tightening the front bolts.
If the cover is crooked, the locking latches will bind, making it difficult to open or close the unit.
Dealing with jammed latches in cold weather is an exhausting experience that can easily be avoided by double-checking your alignments during setup.
Always double-check that your rails are perfectly level to prevent binding during daily operations.
Finally, make sure the cover does not obstruct your third brake light or rear view camera field of vision.
Frequently Asked Questions
Will installing a tonneau cover void my Ford factory warranty?
No, installing an aftermarket bed cover will not void your vehicle warranty under the Magnuson-Moss Warranty Act.
However, if a poorly installed cover causes direct damage to your truck body or bed rails, Ford will not cover those specific repairs.
Using professional guides ensures you complete the install safely without compromising any factory components.
Can I install a tonneau cover if I have a drop-in plastic bed liner?
Yes, but you may need to trim small notches into the plastic liner near the clamp locations.
This trimming allows the metal clamps to grab the underlying metal bed lip directly for a secure mount.
Spray-in bed liners do not require any modifications and are fully compatible with all standard clamps.
How do I choose the right cover for my specific F-150 model year?
You must select a cover that is explicitly rated for your truck generation, such as 2015-2020 or 2021-2026 model years.
Ford updated the tailgate profiles and bed configurations during these generation transitions, meaning older covers will not seal correctly on newer beds.
Always match your model year and bed length exactly when placing your order to avoid painful returns.
