Troubleshooting unexpected ford f150 electrical issues can quickly turn your truck ownership pride into pure frustration. Fortunately, the mechanical experts at Vroomdan have mapped out the exact diagnostics you need to conquer these issues without paying steep dealership rates. Your electrical system is complex, but understanding it allows you to unlock hidden features designed to rescue you from stressful roadside failures.
Your F-150 has a secret slot that starts the truck when your key fob dies.
And 8 other things Ford never told you.
Dead fob fix · Remote window trick · 7.2 kW generator hiding in your bed · Tailgate ladder · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Systematic Troubleshooting: Step-by-step instructions to isolate and solve core F-150 electrical anomalies.
- Smart Sensor Calibration: Deep dive into the Battery Management System (BMS) and common battery drainage.
- Harness and Wiring Diagnostics: Locating water intrusion points in critical frame connectors.
- Preventative Care Protocols: Proactive measures to secure your alternator, starter, and heated accessories.
Diagnosing and Resolving Your Ford F150 Electrical Issues
Many common f150 electrical problems start with loose connections or weak ground returns.
To safely begin your diagnostic routine, make sure you gather a digital multimeter, a 10mm socket wrench, a Torx T20 driver, safety glasses, and a can of electrical contact cleaner.
You will need approximately 45 minutes of quiet garage time to complete these electrical diagnostic steps thoroughly.
Step 1: Inspect the Ford F-150 Battery and Voltage Terminals
First, turn off your engine and pop the hood to access your ford f150 battery assembly.
Connect your digital multimeter leads directly to the positive and negative terminals to check the resting voltage.
Diagnosing f150 electrical problems requires a systematic plan, so write down each voltage reading you obtain.
A healthy resting battery must read between 12.4 and 12.6 volts to power the complex on-board computers.
If you see a voltage reading below 12.2 volts, your truck is suffering from a deeply discharged battery that requires a slow charge.
Be extremely cautious to avoid touching metal tools across both terminals simultaneously, as this can create a dangerous short circuit.
Step 2: Clean the Body Control Module and Frame Grounds
Many mysterious dashboard glitches stem from high resistance in your ground connections.
Locate the primary ground strap near the battery tray and unscrew the 10mm mounting bolt.
Use a wire brush to scrub away any rust, paint, or white corrosion from the frame contact point.
This resolves various electrical problems f150 owners struggle to fix on older truck generations.
Spray the bare metal surfaces thoroughly with electrical contact cleaner before reassembling the ground connection.
This simple cleaning process instantly restores a clean return path for your truck’s sensitive sensors.
Step 3: Perform an Alternator Diode and Output Test
Start your engine and let the truck idle to test your charging system output under load.
Switch your multimeter to Direct Current (DC) voltage mode and measure across the battery terminals again.
A functional alternator should output between 13.5 and 14.8 volts depending on your load demands.
Reviewing the ford f150 alternator specs helps you confirm if your generator output meets original factory requirements.
If the reading remains under 13.0 volts, your alternator is failing to charge the system properly.
Step 4: Analyze Starter Draw and Cranking Drop
Next, monitor the battery voltage drops during an active engine starting cycle.
Have an assistant crank the engine while you observe the lowest voltage dip on your multimeter screen.
The voltage should not dip below 9.6 volts during the cranking phase.
Conducting a proper ford f150 starter motor test reveals whether the starter is drawing excessive current.
A sluggish crank combined with a massive voltage drop indicates a failing starter motor winding.
At Vroomdan, we are fully committed to helping truck owners resolve complex ford f150 starting issues diagnostics without paying expensive shop rates.
Our massive library of step-by-step guides makes it simple to troubleshoot even the most stubborn automotive puzzles at home.
We encourage you to bookmark our site for direct access to reliable truck maintenance solutions whenever you face a mechanical hurdle.
Understanding the Battery Management System (BMS) and Overnight Drain
Many modern f150 electrical problems are actually caused by a miscalibrated Battery Management System (BMS).
Ford utilizes this smart sensor to actively monitor battery state of charge and adjust alternator output accordingly.
According to the official Ford service manual, replacing a battery without resetting this system causes the alternator to overcharge your brand new unit.
This oversight quickly ruins your battery life and leads to frustrating overnight power drains.
Always perform a BMS reset using a diagnostic tool or by executing the manual headlight-and-brake flashing sequence detailed in our guides.
Keeping this smart module calibrated is vital to prevent ongoing charging system faults.
Solving Wiring Harness Corrosion and Water Intrusion
Persistent electrical problems f150 owners complain about often point to the rear frame wiring harness.
Water and road salt frequently bypass the weather seals in connector C408 located near the spare tire.
This intrusion causes severe corrosion that disrupts your backup camera, trailer brake lights, and parking sensors.
ASE Certified Mechanics report that packing this connector with dielectric grease is the best long-term shield against moisture.
Regularly inspecting this rear frame harness can save your weekend from being ruined by trailer connection failures.
Take time to inspect the wiring clips along your frame rail to ensure they have not rubbed raw against the metal chassis.
Fixing Smart Access Failures and Key Fob Inactivity
When your smart entry system stops responding, the culprit is often a dead transmitter battery or local RF interference.
You can quickly restore your truck’s remote functionalities by reading our guide on ford f150 remote start systems.
If you have recently replaced your battery, you might also need to execute a manual ford f150 key fob programming routine to resync the signals.
These simple DIY fixes can prevent the sheer panic of being locked out of your own vehicle in a dark parking lot.
Our team always recommends carrying a spare CR2032 coin cell battery inside your glovebox just in case.
Practical Maintenance Protocols to Protect Your Truck
To protect your truck from unexpected system failures, establish a quarterly preventative electrical inspection routine.
Apply a thin layer of terminal protection spray to prevent acid scale buildup on your battery posts.
This simple task prevents several electrical problems f150 trucks develop in winter.
In cold winter months, monitor the current draw of high-load accessories like your ford f150 heated steering wheel element.
Heavy use of heated accessories without running the engine can quickly overwhelm a weak charging system.

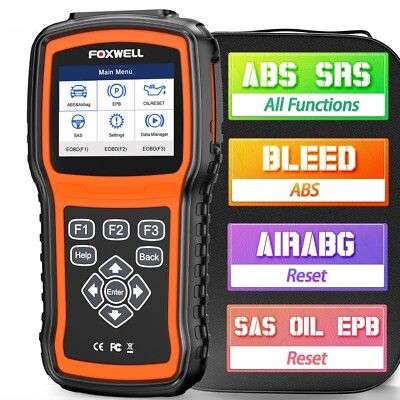

Consider purchasing an inexpensive OBD2 scanner to read Diagnostic Trouble Codes (DTCs) immediately when warning lights appear.
By checking codes at home, you gain total control over your diagnostic process and avoid costly dealership fees.
Overcoming Common DIY Electrical Mistakes
One major pitfall truck owners face is using cheap, non-conductive grease inside critical fuse boxes.
Always choose high-quality dielectric compound and apply it sparingly to avoid insulating the pins entirely.
Another common error is ignoring software updates for your Sync infotainment unit, which can cause severe parasitic draws.
This diagnostic tool helps isolate electrical problems f150 control modules generate when left in sleep mode.
Never jump-start a modern truck using a chassis ground near delicate control computers, as voltage spikes can instantly fry modules.
Always connect your jumper cable grounds directly to the designated engine block ground point away from the battery sensor.
Frequently Asked Questions
Most f150 electrical problems can be diagnosed with simple hand tools and a bit of patience.
Why does my screen flicker when starting the engine?
Your screen flickers because the starter draws massive current, causing the system voltage to dip momentarily.
This indicates that either your battery is weak or your starter motor is beginning to fail.
Can a bad ground wire cause transmission shifting issues?
Yes, bad ground wires can disrupt the delicate communication signals between your engine control module and transmission module.
This disruption leads to rough shifts, erratic speedometer readings, and sudden fail-safe engine modes.
Does disconnecting the battery reset the BMS?
No, simply disconnecting your battery will not reset the stored battery age data in your truck’s computer.
You must manually perform the reset sequence or use a diagnostic scanner to inform the system that a new battery is installed.
“I’ve driven an F-150 for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know which button on your fob opens the tailgate when your hands are full? Or the button combo to reset CarPlay in 15 seconds without turning off the engine?
bryansgarage.com · June 24, 2026
Conclusion
Resolving your truck’s electrical issues is entirely within reach with a methodical approach. Vroomdan remains your ultimate mechanical companion for avoiding expensive dealership diagnostic fees. Ready to get the most out of your truck? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you.
Disclaimer: Always consult your official Ford Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
