Resolving the Ford F150 Exhaust Manifold Tick Noise

If you are startled by a metallic f150 exhaust manifold ticking sound during startup, you are not alone. That annoying sound is a classic sign of a warped manifold or broken studs on your truck. Let the experts at Vroomdan walk you through this guide to save money and frustration, but first, did you know your truck hides some jaw-dropping secrets you can unlock right now?

Diagnosing and Fixing Your f150 exhaust manifold ticking sound

A ticking sound on startup is one of the most widespread ford f150 common problems reported by truck owners today.

Hearing that persistent tapping can cause intense frustration and worry about your engine’s long-term health.

This sound typically stems from a warped exhaust manifold that pulls away from the cylinder head.

When this warping occurs, exhaust gases escape past the gasket, producing a rhythmic ticking.

Fortunately, you can perform a ford f150 exhaust manifold leak repair at home if you have the right tools and patience.

Addressing this issue early will save you from insanely expensive professional repair bills down the road.

Understanding these thermal dynamics helps you realize that a cold start exhaust tick repair f150 is a necessary correction of a factory design limitation.

Prerequisites and Tools Required for Repair

To successfully complete a cold start exhaust tick repair f150 job, you must gather specialized tools beforehand.

You will need a standard 3/8-inch socket set, metric wrenches, and a high-quality penetrant spray.

Additionally, having a broken stud removal kit f150 is absolutely critical for this project.

Most F-150 owners spend roughly 6 to 10 hours of active labor completing this teardown and reassembly.

Make sure you have an auxiliary heat source like a propane torch to help loosen stubborn hardware.

Step-by-Step Instructions

1. Step 1: Disconnect the Battery and Safely Jack Up the Vehicle

   Park your F-150 on a flat, level concrete surface and engage the parking brake fully.

   Disconnect the negative battery cable to prevent any accidental electrical shorts during the repair.

   Raise the front of the truck using a heavy-duty hydraulic floor jack and secure it with high-tonnage jack stands.

   Remove the front passenger or driver-side wheel, depending on which side of the engine is ticking.

2. Step 2: Remove the Inner Fender Liner for Complete Access

   Locate the plastic retaining clips securing the inner fender well liner to the truck frame.

   Use a trim panel removal tool to carefully pop these clips without snapping them.

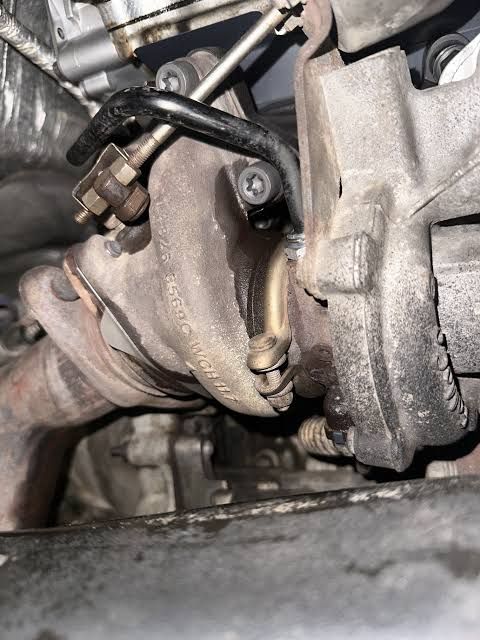

   Carefully pull the liner out of the wheel well to expose the exhaust manifold and steering shaft.

   This provides a clear, straight-line shot to the manifold studs, which makes your work much easier.

3. Step 3: Apply Penetrating Oil and Heat to Stubborn Studs

   Saturate every single exhaust manifold nut with a specialized penetrating oil like Kroil or PB Blaster.

   Let the chemicals sit for at least thirty minutes to dissolve rust and corrosion deep within the threads.

   Use a propane torch to heat the cylinder head surrounding the studs if they refuse to budge.

   Applying localized heat will cause the metal to expand slightly, which makes extraction much safer.

4. Step 4: Extract Broken Manifold Studs Carefully

   If you find snapped studs, you must extract f150 manifold studs without damaging the aluminum cylinder head threads.

   Mount a guide template tool over the broken stud to ensure your drill bit remains perfectly centered.

   Drill into the center of the broken stud using a hardened carbide left-handed drill bit.

   Insert an extractor tool into the pilot hole and slowly back the broken stud out.

   This delicate process requires supreme patience to avoid the absolute nightmare of ruining your engine head.

5. Step 5: Prep the Head Surface and Install the New Gasket

   Use a gasket scraper or brass wire wheel to clean the mating surface of the aluminum cylinder head.

   Ensure the surface is completely flat and free of old gasket material, soot, or deep scores.

   Slip a new multi-layer steel gasket onto the replacement studs and verify proper alignment.

   Avoid using cheap paper gaskets, as they will quickly burn out and cause another leak.

6. Step 6: Install the Manifold and Torque to Factory Specs

   Position the new or resurfaced manifold onto the cylinder head studs carefully.

   Hand-tighten all the nuts first to prevent any cross-threading of the soft aluminum threads.

   Using a calibrated torque wrench, tighten the nuts in a crisscross pattern starting from the center outward.

   For most F-150 engines, the factory torque specification is exactly 18 to 22 foot-pounds.

7. Step 7: Reassemble the Fender Liner and Test the Truck

   Reinstall the inner wheel well liner using the plastic retaining clips you removed earlier.

   Mount the wheel back onto the hub and torque the lug nuts to 150 foot-pounds.

   Lower the vehicle off the jack stands and reconnect the negative battery cable.

   Start the engine and listen closely to enjoy the immense satisfaction of a dead-silent cold start.

Here at Vroomdan, we are dedicated to helping you tackle complex maintenance tasks like this at home.

We provide real, practical advice so you can skip the dealership and maintain your truck on your own terms.

You can explore our deep library of mechanical tutorials at Vroomdan to unlock even more ways to care for your vehicle.

Planning your steps carefully ensures your cold start exhaust tick repair f150 is completed with absolute precision.

Why the ford f150 ecoboost exhaust manifold leak Occurs

Many F-150 owners wonder why their trucks develop this annoying tick in the first place.

According to reports on the popular F150Forum community, the issue is rooted in thermal dynamics.

The exhaust manifolds are made of heavy cast iron, while the cylinder heads are lightweight aluminum.

These two metals expand and contract at vastly different rates as the engine heats up and cools down.

This constant differential expansion puts incredible shear stress on the steel mounting studs.

Over time, this stress causes the rear studs—specifically on cylinder number four and cylinder number eight—to snap off completely.

Once the studs break, the manifold warps slightly under the extreme heat of the exhaust gases.

The resulting gap allows hot gases to blow past the gasket, creating that rhythmic ticking noise.

This failure is particularly common on the 3.5L EcoBoost engines due to the extreme heat generated by the twin turbochargers.

Additionally, the 5.0L Coyote V8 and old 5.4L Triton V8 engines are highly susceptible to this design flaw.

Using higher quality components during your cold start exhaust tick repair f150 prevents future issues and makes your truck run much smoother.

Comparing ford f150 exhaust manifold repair cost and Aftermarket Upgrades

When faced with this repair, you must decide whether to use OEM parts or upgrade to aftermarket alternatives.

Choosing the right option depends heavily on your budget, DIY skill level, and long-term vehicle goals.

Let’s look at the three primary pathways you can take to resolve this issue permanently.

Option	Average Cost Range	Pros & Cons
OEM Factory Manifolds	$800 – $1,200	Direct fit, but prone to warping again over time due to thermal stress.
Upgraded Cast Iron Manifolds	$900 – $1,400	Thicker flanges that resist warping, highly durable, and cost-effective.
Shorty Exhaust Headers	$1,200 – $1,800	Maximum exhaust flow, eliminates warping, improves performance.

If you take your truck to a dealership, the professional ford f150 exhaust manifold repair cost can easily exceed $2,000 per side.

Dealerships charge premium labor rates because extracting broken studs from aluminum cylinder heads is extremely tedious.

You can slash this cost dramatically by purchasing aftermarket parts and performing the work in your own garage.

Upgrading to heavy-duty cast iron manifolds with Grade 8 stainless steel studs is the most cost-effective permanent fix.

Alternatively, installing high-quality shorty headers from premium ford f150 exhaust systems completely eliminates the risk of future failures.

In the long run, investing in a cold start exhaust tick repair f150 pays off immediately in improved gas mileage and engine performance.

Practical Application Guide & Maintenance Tips

Preventative maintenance is your best defense against developing an exhaust manifold leak.

Always allow your engine to idle for a minute or two after heavy towing or high-speed highway driving.

This cool-down period allows the turbochargers and exhaust manifolds to shed heat gradually and evenly.

Rapid thermal shock is the leading cause of warped manifolds and snapped mounting hardware.

Additionally, you should inspect your exhaust hangers and motor mounts regularly during routine oil changes.

Worn motor mounts can cause the engine to twist excessively under acceleration, putting physical strain on the exhaust connections.

Keeping your cooling system in peak condition also helps regulate overall engine bay temperatures.

Many owners agree that tackling a cold start exhaust tick repair f150 is a highly rewarding DIY weekend project that saves massive amounts of money.

Overcoming Common DIY Mistakes

One of the biggest mistakes DIY mechanics make is rushing the stud extraction process.

Using a cheap drill bit or drilling off-center will ruin the aluminum threads in your cylinder head.

Always use a high-quality guide template to keep your drill bit perfectly aligned.

Another common error is reusing old manifold nuts or using cheap, low-grade hardware.

Always replace all mounting hardware with Grade 8 stainless steel studs and self-locking nuts.

Additionally, ignoring the factory torque sequence can cause uneven pressure, leading to premature gasket blowout.

Finally, be careful not to damage the fragile oxygen sensors or plastic electrical clips in the wheel well during teardown.

Taking your time and using the right techniques will guarantee a successful, long-lasting repair.

Frequently Asked Questions

Is it safe to drive with an F-150 exhaust manifold leak?

While your truck will run, driving with a leak for extended periods is not recommended.

Escaping hot exhaust gases can damage surrounding plastic components, wiring harnesses, and oxygen sensors.

Additionally, a leak can introduce fresh air into the exhaust stream, tricking the computer into running a rich fuel mixture.

Will an aftermarket exhaust manifold void my factory warranty?

No, installing high-quality aftermarket parts will not void your vehicle warranty under the Magnuson-Moss Warranty Act.

The manufacturer can only deny warranty coverage if they can prove the aftermarket part directly caused a specific failure.

Upgrading to more durable manifolds actually protects your engine from future damage.

Why does the ticking sound disappear after the engine warms up?

The metal of the manifold expands significantly as it absorbs intense heat from the running engine.

This thermal expansion temporarily closes the gap between the warped manifold flange and the cylinder head gasket.

Once the metal expands to seal the gap, the ticking sound diminishes or disappears completely until the next cold start.

Conclusion

Resolving your ticking exhaust manifold restores your F-150’s performance and cabin comfort while preventing costly engine bay damage.
