In This Guide
- Quick step-by-step DIY walkthrough for spacer installation.
- Expert suspension analysis comparing spacers with full lift kits.
- Accurate torque specifications and safety measures to protect components.
- Essential post-installation alignment instructions and professional cost comparisons.
The Ultimate Ford F150 Leveling Spacer Install Steps and Guides
Prerequisites & Tools Needed
Before beginning this project, you must gather the correct tools to avoid mid-install frustration.
You will need a high-quality metric socket set, including 15mm, 18mm, and 21mm sockets.
A heavy-duty floor jack and heavy-tonnage jack stands are mandatory to support your truck’s massive frame safely.
Do not attempt this install without a calibrated torque wrench to secure critical suspension fasteners back to OEM (Original Equipment Manufacturer) specifications.
Additionally, prepare a pry bar, a hammer, and a penetrating fluid like WD-40 to loosen stubborn, rusted bolts.
The typical installation time ranges from two to four hours depending on your mechanical experience level.
Step-by-Step Instructions
-
Step 1: Secure the Vehicle and Remove Front Tires
Park your F-150 on a flat, level concrete surface and engage the parking brake.
Loosen the front lug nuts slightly before lifting the truck off the ground.
Place the jack stands securely under the frame rails and lower the jack slowly.
Remove the lug nuts completely and pull the front wheels off to expose the suspension assembly.
-
Step 2: Disconnect the EPAS and Sway Bar Links
You must disconnect the battery to protect the delicate EPAS (Electronic Power Assist Steering) system from internal electrical damage.
Remove the nut securing the outer tie rod end to the steering knuckle.
Strike the knuckle with a hammer to break the taper loose, taking care not to damage the threads.
Disconnect the sway bar end links from the lower control arm to allow the suspension to droop fully.
-
Step 3: Detach the Upper Control Arm and Brake Lines
Remove the brake line bracket bolts from the knuckle to prevent stretching the rubber hoses.
Unbolt the ABS (Anti-lock Braking System) sensor wire bracket and pull it safely out of the way.
Support the lower control arm with a floor jack to hold the tension.
Loosen the upper ball joint nut, then strike the knuckle to separate the upper control arm from the assembly.
-
Step 4: Extract the Strut Assembly and Mount the Spacer
Remove the three upper strut mounting nuts located inside the engine bay.
Unbolt the two lower strut mounting bolts from the lower control arm.
Carefully pry the entire strut assembly out of its pocket and place it on a clean workbench.
Bolt the new leveling spacer onto the top of the OEM strut mount using the provided hardware.
Torque these spacer nuts to 47 lb-ft to ensure they never back out under load.
-
Step 5: Reinstall the Strut and Torque Fasteners
Slide the modified strut back into the upper frame mount and hand-tighten the top nuts.
Realign the bottom of the strut with the lower control arm and push the mounting bolts through.
Use your floor jack to lift the suspension knuckle back up to meet the upper control arm.
Secure the upper ball joint nut and torque it to 46 lb-ft, then reinstall the wheels.
Lower your truck to the ground and perform a final torque sequence on all major suspension bolts.
At Vroomdan (Vroomdan), we want to make DIY truck maintenance accessible to everyone.
We provide accurate, step-by-step repair walkthroughs so you can skip the overpriced service bays entirely.

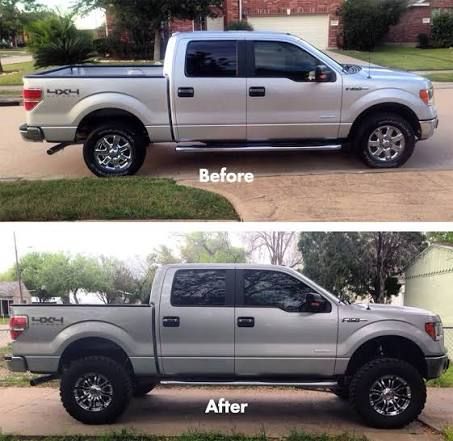

Understanding the Real Suspension Impact: Spacers vs. Lift Kits
Many truck owners ask if they should choose a basic front spacer or go with a full suspension lift kit.
Spacers are highly cost-effective and preserve your factory ride quality because they do not change the spring rate.
If you choose ford f150 leveling spacer install steps, you simply extend the physical height of your existing factory strut.
A suspension lift kit, on the other hand, replaces your shocks, springs, and control arms entirely.
This provides better off-road articulation but alters the factory handling dynamics significantly.
For daily drivers, executing a ford f150 leveling kit install is usually the best middle ground.
It gives you room for larger 33-inch or 35-inch tires without making your truck ride like a stiff military vehicle.
Critical Alignment Adjustments After a Front Leveling Kit
Once you modify your front suspension height, your steering geometry shifts dramatically.
This height change alters the toe-in angle and pulls the camber out of factory specifications.
Driving without a proper ford f150 front leveling kit alignment will destroy your expensive all-terrain tires in a matter of months.
According to seasoned experts on the F150Forum community, you must let the suspension settle for 50 miles before taking it to a shop.
This brief settling period allows the rubber bushings to return to their natural resting state.
Make sure you get a professional ford f150 alignment after level kit to restore handling safety and highway stability.
| Alignment Spec | Factory Spec (OEM) | Post-Level Kit (Unadjusted) |
|---|---|---|
| Camber Angle | -0.1° to +0.3° | Stretching to -1.2° (Severe Wear) |
| Toe-In | +0.10° to +0.20° | Outward Toe-Out (Vague Steering) |
| Caster Angle | +3.5° to +4.5° | Reduced Angle (High-Speed Wander) |
Calculating the DIY vs. Professional Installation Costs
Deciding between a DIY weekend project and a professional shop install comes down to budget and tools.
When you handle the ford f150 leveling spacer installation yourself, you only pay for the physical spacer parts.
Quality aluminum or polyurethane spacers usually cost between $50 and $150.
If you take your truck to a local off-road shop, the total ford f150 leveling kit install cost climbs quickly.
You can expect to pay between $300 and $600 for professional ford f150 leveling spacer install labor.
This premium labor charge does not always include the critical post-install wheel alignment.
By choosing the DIY route, you save hundreds of dollars that can be spent on better tires or engine upgrades.
Overcoming Common DIY Mistakes
One of the most expensive mistakes DIY mechanics make is damaging the IWE (Integrated Wheel End) system.
These vacuum-operated hubs lock the front axles for four-wheel drive and are incredibly fragile.
If you pull too hard on the steering knuckle, you can crack the internal plastic IWE housing easily.
The resulting repair bill at a dealership will completely wipe out any DIY savings.
Another frequent error is failing to unplug the EPAS system before working on the suspension.
A sudden strike with a hammer to loosen ball joints can send a shockwave through the steering rack.
This physical impact can fry the internal electronic sensors, requiring a complete steering rack replacement.
Always take your time, use the right tools, and never force a stubborn component with excessive brute strength.
Frequently Asked Questions
Q: Will installing a front leveling spacer void my factory Ford warranty?
A: Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your entire warranty simply because you installed aftermarket spacers.
However, if a spacer directly causes a suspension component like a ball joint to fail, Ford can deny coverage for that specific repair.
Q: Can I complete this installation at home without a spring compressor?
A: Yes, front leveling spacers bolt directly onto the top of the fully assembled strut mount.
You do not need to compress or disassemble the high-tension coil springs to complete this install.
Q: Which F-150 model years does this step-by-step guide apply to?
A: This installation guide applies to all modern Ford F-150 trucks built between 2004 and 2026.
While subtle steering knuckle designs changed over these generations, the basic strut-suspension layout remains identical.
“I’ve driven an F-150 for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know which button on your fob opens the tailgate when your hands are full? Or the button combo to reset CarPlay in 15 seconds without turning off the engine?
bryansgarage.com · June 24, 2026
Conclusion
Upgrading your F-150’s stance with a leveling spacer is a highly rewarding weekend project.
With the right tools and safety steps, you can save money and achieve the perfect truck profile.
