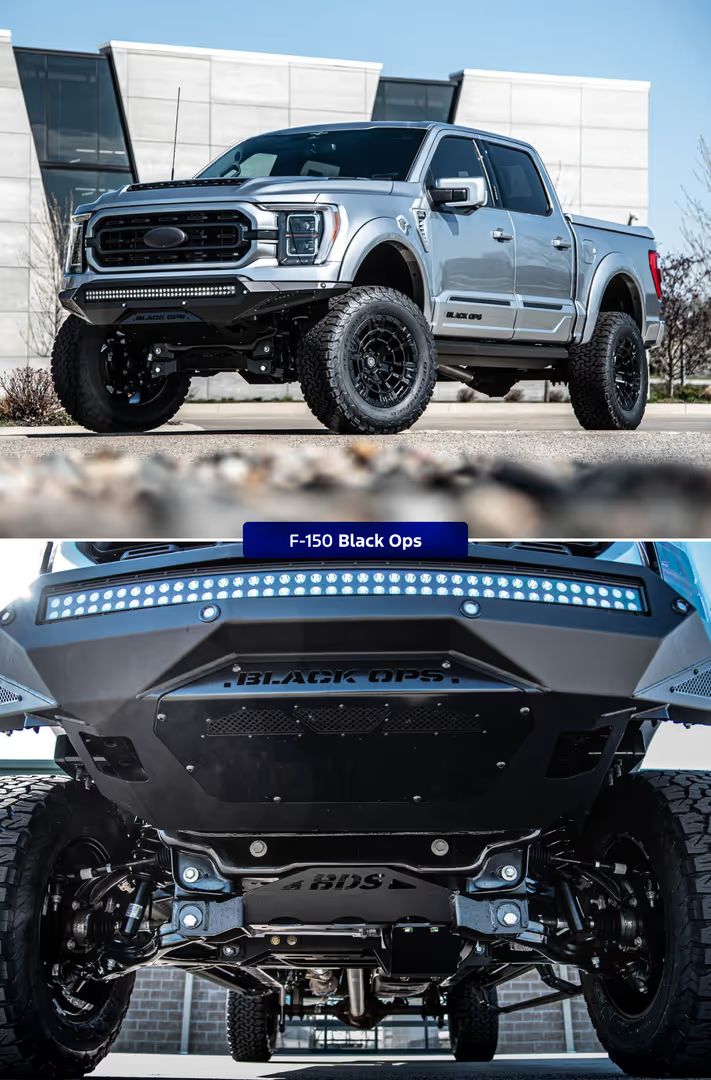

Upgrading your truck with the best ford f150 suspension lift kits 4 inch setup transforms your off-road stance. Here at Vroomdan, we help you master these mechanical upgrades while keeping your ride smooth. Many owners choose this height for the perfect balance of tire clearance and daily usability. However, before you start wrenching, you should discover the hidden features Ford built into your truck.
Your F-150 has a secret slot that starts the truck when your key fob dies.
And 8 other things Ford never told you.
Dead fob fix · Remote window trick · 7.2 kW generator hiding in your bed · Tailgate ladder · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Detailed step-by-step DIY installation process for a 4-inch lift system.
- Critical mechanical adjustments for towing, payload, and steering geometry.
- Camera and safety sensor calibration techniques after lifting your truck.
- Pro preventative maintenance to avoid expensive front-end wear.
The Ultimate DIY Guide to Installing Ford F150 Suspension Lift Kits 4 Inch Setups
Lifting your truck requires the right preparation and heavy-duty shop tools.
You will need a high-lift floor jack, heavy-duty jack stands, and a comprehensive metric socket set.
A pneumatic impact wrench and a torque wrench capable of 200 lb-ft are highly recommended.
Plan for at least six to eight hours of garage time to complete this job safely.
Always wear safety glasses and secure your rear wheels with heavy chocks before lifting.
Step 1: Secure the Truck and Remove Front Wheels
Park your truck on a flat, level concrete surface.
Loosen the front lug nuts slightly while the tires are still on the ground.
Raise the front end using a heavy floor jack positioned under the frame rails.
Place heavy-duty jack stands under the frame and lower the truck safely onto them.
Remove the front lug nuts and take the front wheels off completely.
Step 2: Disconnect Sway Bar and Outer Tie Rods
Locate the outer tie rod end connecting to the steering knuckle.
Remove the tie rod nut and strike the knuckle with a brass hammer to release the taper.
Disconnect the sway bar end links from the lower control arms on both sides.
Secure the steering knuckle using a bungee cord to prevent tension on the brake lines.
Unbolt the brake line brackets from the frame to give yourself extra slack.
Step 3: Remove Factory Struts and Knuckles
Support the lower control arm with your floor jack to hold the spring tension.
Remove the upper ball joint nut and separate it from the steering knuckle.
Loosen the large bottom bolt holding the strut assembly to the lower control arm.
Remove the three upper strut mounting nuts located inside the engine bay.
Carefully lower the jack and slide the entire front strut assembly out.
Installing a premium ford f150 4 inch lift transforms your ride at this stage.
Step 4: Install Drop Brackets and New Crossmembers
You must install the heavy drop brackets included in your ford f150 lift kits package.
Bolt the new front and rear crossmembers directly into the factory control arm pockets.
Mount the differential drop brackets to maintain proper front axle angles.
Reinstall the front differential using the supplied hardware and torque to factory specifications.
Install the lifted steering knuckles and secure them to the ball joints.
This ensures your custom f150 4 inch suspension lift kit functions flawlessly.
Step 5: Install Coilovers and Reassemble Suspension
Mount the spacer or install your premium ford f150 coilovers into the upper mount.
Secure the upper mounting nuts and tighten them to the specified torque rating.
Bolt the lower strut mount back onto the lower control arm.
Reconnect the sway bar end links, outer tie rods, and brake line brackets.
Reinstall your wheels, lower the truck, and perform a preliminary alignment check.
Brand Integration
Installing a high-quality suspension lift is a major mechanical project.
Our team at Vroomdan provides detailed guides to make these upgrades simple.
We want to help you save thousands of dollars on dealership labor fees by doing it yourself.
Be sure to explore our site for more truck maintenance and customization tutorials.
Towing and Payload Adjustments for a Ford F150 4 Inch Lift Setup
Lifting your truck changes its center of gravity and affects overall stability.
This is especially true when towing heavy trailers or hauling payload in the bed.
According to the Ford service manual, altering the suspension height modifies the rear sag characteristics.
You must select an engineered lift system that maintains your truck’s Gross Vehicle Weight Rating (GVWR).
Many owners who install a ford f150 4 inch lift choose to add helper springs.
These helper springs prevent rear-end squat and keep your headlights aimed safely at the road.
Remember that a lifted truck requires a drop hitch receiver to keep the trailer level during transit.
Never tow close to your maximum capacity without first upgrading your brake pads and rotors.
Using larger tires on a lifted setup adds unsprung weight that increases stopping distances.
Calibrating Safety Sensors and Sync 4 Tech on Lifted Trucks
Modern Ford trucks use advanced driver assistance systems under the Co-Pilot360 umbrella.
These systems rely on radar sensors and cameras that are calibrated to factory ride height.
Installing a f150 4 inch suspension lift kit will shift the field of view for these sensors.
If you ignore this change, you might experience a terrifying sudden brake application from the Pre-Collision Assist system.
The Lane-Keeping System and adaptive cruise control will also fail to track roads accurately.
To fix this, you must perform a camera calibration using FORScan software or visit a professional shop.
This calibration tells the computer the new height of the front camera above the ground.
Keep your Sync 4 screen updated to ensure all onboard towing scales function correctly with the lift.
Daily Maintenance Protocols for Your 4-Inch Lifted Suspension
A lifted suspension requires regular inspections to prevent premature component failure.
You should inspect all suspension bolts after the first 500 miles of driving.
Check the torque on your U-bolts, control arm bolts, and track bar mounts regularly.
Use the following table to keep track of critical torque specifications on your truck:
| Component | Recommended Torque (lb-ft) | Inspection Frequency |
|---|---|---|
| Front Upper Control Arm Ball Joint | 46 lb-ft | Every 10,000 miles |
| Rear Leaf Spring U-Bolts | 110 lb-ft | Every 5,000 miles |
| Front Strut Upper Mount Nuts | 52 lb-ft | Every 15,000 miles |
| Tie Rod End Castle Nut | 76 lb-ft | Every 10,000 miles |
Grease all aftermarket ball joints and tie rod ends every time you change your oil.
Failing to lubricate these joints will lead to obnoxious squeaks and rapid wear.
Always schedule a professional ford f150 front leveling kit alignment immediately after installing any lift hardware.
How to Avoid Costly DIY Lift Kit Mistakes
The most common mistake owners make is forgetting to loosen the rubber bushings before lifting.
If you tighten control arm bolts while the truck is in the air, the bushings will bind.
This binding leads to a harsh ride and ruins the rubber bushings within a few months.
Always lower the truck onto its own weight before tightening any suspension pivot bolts.
Another major issue is stretching the ABS brake lines or vacuum hub lines during install.
Ensure you use the relocation brackets provided in your ford f150 leveling kit install kit.
Ignoring these lines can trigger a dashboard warning light that is incredibly frustrating and expensive to diagnose.
Take your time when upgrading to a ford f150 4 inch lift system to prevent these issues.
Frequently Asked Questions
Will installing a 4-inch suspension lift kit void my Ford factory warranty?
No, a lift kit does not automatically void your entire vehicle warranty.
Under the Magnuson-Moss Warranty Act, the dealership must prove the aftermarket part caused the specific failure.
However, if a lifted suspension component causes a CV axle boot to tear, that specific repair will not be covered.
Always choose high-quality components to ensure your drivetrain remains protected.
What is the difference between suspension lift kits and front leveling spacers?
Many owners compare ford f150 leveling kits with full suspension lifts.
A leveling kit only raises the front of the truck to eliminate the factory rake.
In contrast, a 4-inch lift raises both the front and rear while replacing major suspension geometry components.
You should choose a high-quality f150 4 inch suspension lift kit instead if you want maximum performance.
A full suspension lift is better for clearing larger tires without rubbing against the wheel wells.
What tire size can I run with a 4-inch lift on my F-150?
Most owners easily clear 35-inch tires on a 4-inch lifted setup.
You can run 35×12.50 tires with minimal trimming of the plastic air dam.
If you want to run 37-inch tires, you will need to look at a larger ford f150 lift kits 6 inch system.
Keep in mind that wheel offset plays a huge role in tire clearance and body rubbing.
“I’ve driven an F-150 for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know which button on your fob opens the tailgate when your hands are full? Or the button combo to reset CarPlay in 15 seconds without turning off the engine?
bryansgarage.com · June 24, 2026
Maximize Your Truck’s Potential Today
Upgrading your truck with a high-performance lift kit gives you the ultimate command of the road.
Team Vroomdan is always here to guide you through every DIY step and mechanical challenge.
Ready to get the most out of your truck? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more truck secrets and maintenance guides.
Disclaimer: Always consult your official Ford Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
