In This Guide
- Step-by-Step Diagnostic Tutorial: How to isolate the overheating issue in your driveway.
- Understanding the 10R80 Heat Spikes: Exploring the mechanics behind thermal valves and fluid dynamics.
- Towing & Payload Management: How keeping within parameters prevents expensive internal damage.
- Common DIY Pitfalls: Critical slip-ups to avoid when changing or checking your transmission fluid.
Diagnosing and Troubleshooting Ford F150 Transmission Fluid Overheating
A flashing high transmission temperature warning on your dashboard can trigger immediate diagnostic panic.
Fortunately, you can isolate the cause of this high-heat issue before paying a dealership diagnostic fee.
This tutorial is designed for DIY beginners to safely check their truck’s transmission cooling system step-by-step.
Prerequisites and Tools Needed
- An OBD-II (On-Board Diagnostics) scanner capable of reading live transmission fluid temperatures.
- An infrared non-contact temperature gun.
- Safety glasses and heat-resistant mechanic gloves.
- Estimated Time Required: 45 to 60 minutes.
-
Scan for Transmission Diagnostic Trouble Codes
Plug your OBD-II scanner into the diagnostic port located beneath the steering column.
Turn your ignition to the “On” position without starting the engine.
Scan for any active Diagnostic Trouble Code (DTC) stored in the Transmission Control Module (TCM).
Look specifically for codes related to the thermal bypass valve or shift solenoid failures.
-
Check Fluid Level and Fluid Condition
Park your truck on a completely level surface and set the parking brake.
Locate the mini dipstick assembly under the vehicle next to the exhaust pipe.
Wear your heavy-duty safety gloves to avoid severe burns from the nearby catalytic converter.
Verify that the fluid level sits within the crosshatched hot zone on the dipstick.
Inspect the fluid on a clean white paper towel to check if it looks dark brown or smells burned.
-
Verify Thermal Bypass Valve Operation
Start your engine and let your truck idle until it reaches operating temperature.
Use your infrared temperature gun to measure the steel lines going into the transmission cooler.
One line should feel significantly hotter than the other if the bypass valve is opening correctly.
If both lines remain cool while the transmission temp gauge climbs, your thermal bypass valve is likely stuck closed.
-
Inspect the Auxiliary Cooler Fins
Locate the transmission fluid cooler mounted behind the front grille.
Inspect the metal cooling fins for any accumulated road debris, mud, or leaves.
Carefully clean the fins using low-pressure water to wash away blockages.
Straighten any bent cooling fins using a specialized plastic radiator fin comb tool.
At Vroomdan, we are dedicated to helping you save money by mastering DIY truck maintenance.
You can find more detailed walkthroughs on our main site at Vroomdan.
Why the 10R80 Transmission Fluid Temp Spikes: Mechanical Causes
The modern Ford 10-speed transmission is a highly advanced piece of engineering.
However, many owners report that their ford f150 10-speed transmission problems are directly connected to heat management issues.
Understanding what controls your ford f150 transmission temperature normal parameters is the key to preventing major failures.
The primary mechanical culprit in most sudden heat spikes is the factory thermal bypass valve.
This valve is designed to restrict fluid flow to the cooler until the oil reaches roughly 195 degrees Fahrenheit.
When this valve malfunctions and sticks in the closed position, the hot fluid is continuously recirculated back into the gears.
This causes a rapid and dangerous rise in the 10R80 transmission fluid temp.
Additionally, electrical issues can lead to high thermal loads.
An internal solenoid failure can prevent the torque converter clutch from locking up correctly.
This failure causes constant fluid shearing inside the torque converter, which generates massive amounts of friction heat.
If you suspect an electrical issue, you may need to plan a ford f150 shift solenoid replacement to restore proper shifting and cooling.
Towing Limits, Radiators, and Upgrades to Prevent Overheating
Towing heavy loads uphill is the absolute ultimate test of your truck’s cooling system.
Exceeding your truck’s rated towing capacity will quickly cause severe mechanical distress.
You must always calculate your true towing limit by cross-referencing your truck’s Gross Vehicle Weight Rating (GVWR).
Be sure to check our guide on the ford f150 towing capacity before hookup.
If you regularly tow heavy trailers, having the factory ford f150 towing prep package is incredibly helpful.
This package includes an upgraded, high-efficiency radiator and an auxiliary oil cooler to shed heat faster.
For trucks operating in hot climates, upgrading your stock components with aftermarket gear is a wise choice.
Installing a ford f150 deep aluminum transmission pan adds valuable extra fluid capacity to your system.
The aluminum construction of these deep pans acts as an additional heat sink to drop temperatures further.
This extra cooling capacity will give you absolute peace of mind during tough mountain climbs.
Overcoming Common DIY Mistakes When Managing High Heat
Many truck owners accidentally cause their own heating issues by making simple mistakes during maintenance.
The most common error is adding the completely incorrect fluid type during service.
Ford’s 10-speed gearboxes require specialized Mercon ULV fluid to function correctly.
Using older Mercon LV or generic fluids will lead to internal friction and rapid component wear.
Another costly mistake is neglecting the correct procedure when refilling the system.
The 10R80 transmission has strict fill level requirements that must be checked while the fluid is fully hot.
Underfilling the system will cause the fluid to foam, which destroys its ability to transfer heat effectively.
F-150 Transmission Temperature & Fluid Specification Reference
| Transmission Type | Recommended OEM Fluid | Normal Operating Temp Range |
|---|---|---|
| 6-Speed (6R80) | Mercon LV | 180°F – 200°F |
| 10-Speed (10R80) | Mercon ULV | 195°F – 215°F |
| Heavy-Duty Towing Max | Mercon ULV / LV | Up to 225°F (Max Limit) |
Frequently Asked Questions
What is the absolute maximum safe temperature for the 10R80 transmission?
Based on official Ford service guidelines, the maximum safe operating temperature limit is 225 degrees Fahrenheit.
If your digital dashboard gauge shows temperatures exceeding 230 degrees, you must pull over safely and let the engine idle.
Allowing the transmission to run hotter than 230 degrees will rapidly accelerate fluid breakdown and cause structural damage.

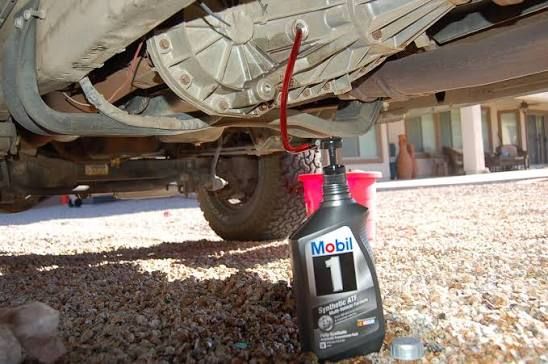

Can I perform a transmission fluid change at home without special tools?
Yes, you can absolutely complete a ford f150 transmission fluid change in your home garage.
However, because the 10R80 does not have a traditional dipstick under the hood, you must crawl underneath to verify the levels.
Using a fluid transfer pump is highly recommended to easily fill the pan from below.
How can I monitor my transmission temperature in real time while towing?
The easiest method is to configure your truck’s productivity screen to display the exact digital temperature gauge.
Alternatively, you can use FORScan software with a compatible OBD-II adapter to read live data stream outputs.
This allows you to track exactly how hard your transmission is working on steep highway inclines.
“I’ve driven an F-150 for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know which button on your fob opens the tailgate when your hands are full? Or the button combo to reset CarPlay in 15 seconds without turning off the engine?
bryansgarage.com · June 24, 2026
Conclusion
Managing your F-150’s transmission temperature is vital for protecting your truck’s durability.
By checking your thermal valve and using correct fluids, you avoid expensive shop bills.
Ready to get the most out of your truck?
Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more truck secrets and maintenance guides.
Disclaimer: Always consult your official Ford Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
