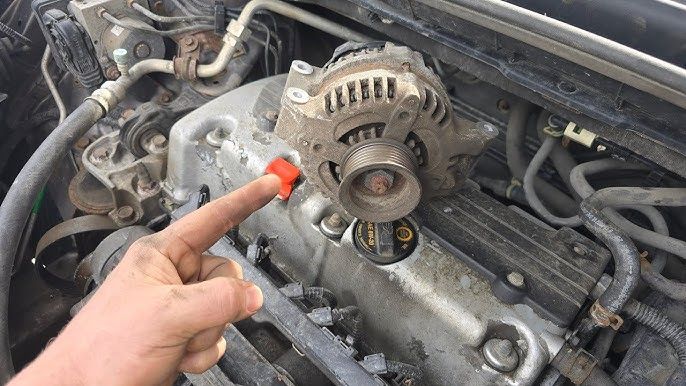

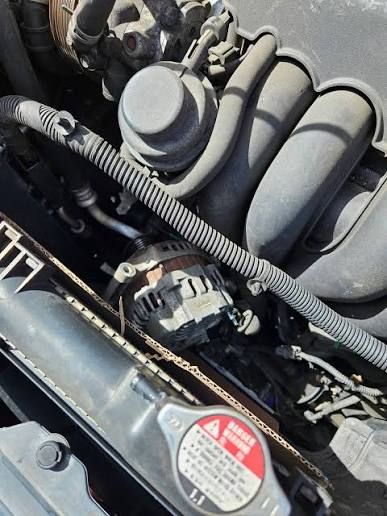

Honda CRV Alternator Test Voltage Guide: Complete Step-by-Step DIY Diagnostics
A failing alternator can quickly leave you stranded on a dark highway without warning.
Fortunately, testing your alternator charging system is a straightforward process that anyone can complete with a simple Digital Multimeter (DMM).
This guide will teach you how to test alternator honda crv systems accurately without visiting an expensive auto shop.
Prerequisites and Tools Needed
- Digital Multimeter (DMM) with a DC voltage setting
- Safety glasses and clean protective gloves
- Wire battery brush (for cleaning corroded terminals if necessary)
- Estimated Time Required: 15 minutes
Step-by-Step Instructions
-
Test the Battery State of Charge First
Park your Honda CR-V on a flat surface and turn off the engine completely.
Set your digital multimeter to the DC Voltage mode at the 20V threshold.
Touch the red positive probe to the positive terminal of your honda crv battery and the black probe to the negative terminal.
A healthy resting battery should display between 12.4 and 12.6 volts.
If your reading is below 12.2 volts, charge the battery before conducting further charging system tests.
-
Measure the Engine Idle Charging Voltage
Start the vehicle’s engine and let it run at a warm idle in Park.
Place your multimeter probes back onto the positive and negative terminals of the battery.
Observe the voltage reading on your digital display screen carefully.
Under standard charging conditions, a functioning alternator should generate between 13.5 and 14.5 volts.
This measurement is a vital step during your routine crv alternator voltage check.
-
Perform a Comprehensive Load Test
Keep the engine running at idle and turn on your high-beam headlights, cabin heater fan to maximum speed, and rear defroster.
These heavy electrical accessories place a high load demand on the charging system.
Check the multimeter display again while these electrical systems draw current.
The charging system must maintain a minimum output threshold of at least 13.5 volts under load.
If your multimeter drops below 13.0 volts, your charging system is struggling and requires closer inspection.
-
Check for AC Voltage Ripple Leakage
Switch your digital multimeter setting over to the AC (Alternating Current) voltage mode.
Touch your test probes to the running battery terminals to measure residual AC ripple.
A properly functioning alternator diode should show less than 0.05 volts AC on your digital display.
Any reading higher than this indicates that a internal diode is leaking raw AC voltage into your electrical system.
This unwanted voltage can easily damage your expensive vehicle electronics and cause persistent dashboard glitching.
At Vroomdan, we are dedicated to helping family SUV owners master their own preventative vehicle maintenance.
Our library of interactive resources offers comprehensive honda crv alternator testing guidance to keep you ahead of mechanical failures.
Regularly checking your electrical system will save you from unexpected towing bills and high dealership diagnostic charges.
Decoding Honda’s Smart Charging and ELD Technology
Many vehicle owners feel frustrated by confusing readings when diagnosing modern Honda vehicles.
Honda utilizes an advanced Electronic Load Detector (ELD) system to maximize fuel efficiency.
This system actively commands the engine computer to reduce alternator charging when the electrical demand is low.
Consequently, you may witness the charging output drop down to around 12.5 volts during a warm engine idle.
This lower reading does not necessarily mean your alternator is failing or broken.
To bypass this smart-charging power-saving state, simply switch on the high beams to force the system back to full charging output.
Understanding this ELD system behavior will prevent you from making costly diagnostic mistakes on healthy vehicles.
Honda CR-V Charging System Specifications by Generation
It is important to evaluate your charging system against specific model year parameters.
Always verify your target honda crv alternator test voltage specs before assuming a component is faulty.
The table below outlines factory specification guidelines based on the official Honda service manual:
| Honda CR-V Generation | Idle Voltage (Low Load) | Charging Voltage (High Load) |
|---|---|---|
| Second Gen (2002-2006) | 13.5V – 14.5V | 13.8V – 14.6V |
| Third & Fourth Gen (2007-2016) | 12.5V – 14.5V (ELD Active) | 13.5V – 14.8V |
| Fifth & Sixth Gen (2017 – Present) | 12.2V – 14.7V (Smart Charge) | 13.8V – 14.9V |
Our custom honda crv alternator test voltage chart serves as a quick reference tool for home garages.
If your readings consistently fall below these factory ranges, you are likely dealing with an aging alternator.
Warning Signs and Preventive Charging System Maintenance
Your vehicle will usually give clear signs of trouble before a complete charging system collapse occurs.
Pay close attention to slowly rising power windows, dimming dashboard displays, or a whining noise under the hood.
If your battery dashboard warning indicator light illuminates, you should immediately run a professional test.
Executing a quick honda crv battery light output test will reveal if the alternator or the battery is failing.
Clean your battery cable clamps every six months to prevent resistive corrosion buildup.
Inspect the drive belt regularly for surface glazing, deep cracks, or tension loss.
We recommend replacing the serpentine accessory belt every 60,000 miles to maintain optimal pulleys and charging rotation.
Common DIY Mistakes to Avoid During Alternator Diagnosis
Testing your vehicle’s electrical components at home requires careful adherence to safety rules.
The most dangerous mistake is disconnecting a battery cable while the engine is running to test alternator power.
This old diagnostic trick can send a massive voltage surge through the vehicle wiring harness.
This electrical spike will instantly destroy modern computer modules and leave you with massive replacement bills.
Additionally, always remember to inspect the heavy grounding strap connected to your engine block.
A rusted, loose, or corroded ground connection often mimics the exact symptoms of a bad alternator.
Consulting our complete used honda crv alternator test voltage guide can save you from buying parts you do not need.
If your alternator requires replacement, review our professional honda crv alternator replacement guide to execute the repair safely.
Frequently Asked Questions
How long does a typical Honda CR-V alternator last?
Most original equipment manufacturer alternators last between 100,000 and 150,000 miles under normal driving conditions.
Extreme engine temperatures, severe winter climates, and water exposure can reduce this lifespan significantly.
Can a weak battery damage a perfectly healthy alternator?
Yes, a failing battery with bad internal cells forces your alternator to work at peak output continuously.
This prolonged maximum load generates excessive heat and eventually burns out the internal electrical brushes.
Why does my battery warning light stay on after installing a new alternator?
This symptom typically points to a blown fuse, a bad connection to the engine computer, or a faulty ELD module.
Make sure you thoroughly clean all connections and verify that all charging system fuses are fully intact.
What is the typical cost of replacing a Honda CR-V alternator?
A professional repair shop replacement usually ranges between $450 and $750 for parts and labor.
By purchasing the parts online and doing the job yourself, you can easily save more than $300 in labor costs.
