A Complete Step-by-Step Honda CRV Battery Bracket Replacement Guide
A loose or degraded honda crv battery hold down bracket is more than just an eyesore.
Over time, road vibrations will slowly destroy the delicate lead plates inside your honda crv battery, causing a sudden loss of cranking power.
Fortunately, securing this component is an easy weekend project that any DIY enthusiast can master.
Prerequisites and Tools Needed
To successfully perform this job, you will only need about 20 minutes of free time.
Ensure you gather a standard 10mm socket, a deep socket extension, and safety glasses before starting.
If your vehicle has experienced winter salt, keep some high-strength penetrating fluid nearby.
Using a wire brush will also help clean off any stubborn corrosion built up on the tray.
Step-by-Step Instructions
-
Step 1: Park Securely and Prepare Your Workspace
Park your SUV on a flat, level concrete surface and engage the parking brake firmly.
Pop the hood and allow the engine bay to cool down for at least fifteen minutes.
Slip on your thick protective gloves to guard against toxic battery acid deposits.
Nothing ruins a weekend project faster than getting painful chemical burns on your hands.
-
Step 2: Disconnect the Battery Terminals
Locate the black negative terminal on your battery casing first.
Use your 10mm wrench to loosen the retaining nut and slide the cable completely off the post.
Secure the negative cable far away from the battery to prevent any accidental re-connection.
Repeat this exact process for the red positive terminal clamp.
-
Step 3: Remove the Old J-Bolts and Bracket
Identify the two metal J-bolts hooking into the bottom of the battery tray.
If you are struggling with heavily rusted threads, executing a honda crv rusted battery bracket J-bolts replace process will require a heavy spray of penetrating fluid.
Loosen the 10mm top hex nuts slowly to avoid snapping the thin J-bolts.
Unclip the hooks from the bottom tray holes and lift the old bracket clear of the battery.
A loose crv battery hold down bracket clamp allows the heavy battery to slide around, damaging nearby electrical harnesses.
-
Step 4: Clean the Battery Tray and Terminals
A heavy accumulation of white honda crv battery hold down bracket rust can eat through steel body panels.
Mix a simple solution of warm water and baking soda to neutralize the harmful acids.
Scrub the plastic tray thoroughly with your stiff wire brush until all corrosion is gone.
Wipe the entire area dry with a clean shop towel before installing any new components.
-

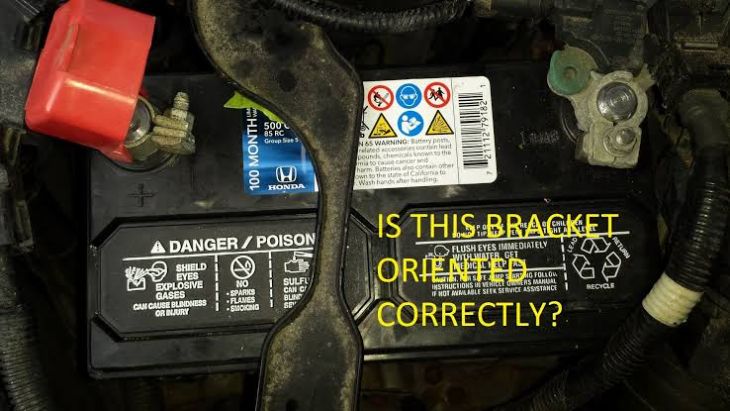

Step 5: Install the New Bracket and J-Bolts
Position your brand-new, rust-resistant bracket evenly across the top of the battery casing.
Hook the long J-bolts back into the dedicated anchor slots located in the plastic lower tray.
Adjusting the tension of your new crv battery hold down bracket clamp prevents excessive vertical play.
Thread the 10mm hex nuts onto the bolts by hand to ensure they do not cross-thread.
Tighten the nuts evenly on both sides until the hold down bracket is completely snug.
Avoid using heavy power tools here, as overtightening will quickly crack the fragile plastic battery casing.
Vroomdan Professional DIY Ethos
At Vroomdan, we are fully committed to helping everyday SUV owners bypass overpriced mechanic shops.
By taking control of these minor maintenance tasks, you protect your wallet while developing true mechanical confidence.
Discover our comprehensive library of maintenance guides at Vroomdan to keep your family cruiser running flawlessly.
Understanding the Mechanical Importance of the J-Bolt and Clamp Assembly
The J-bolt and clamp system might look like a simple piece of metal, but it serves a vital mechanical function.
According to official Honda service manuals, the battery must remain completely static during vehicle operation.
An unsecured battery can tip forward, shorting the positive terminal against the metal hood.
The resulting massive electrical short can instantly fry your CR-V’s expensive engine control module.
Furthermore, engine vibrations shake the internal lead plates, leading to active material shedding and premature cell failure.
Investing a few dollars in robust hardware prevents these catastrophic electrical disasters from ever happening.

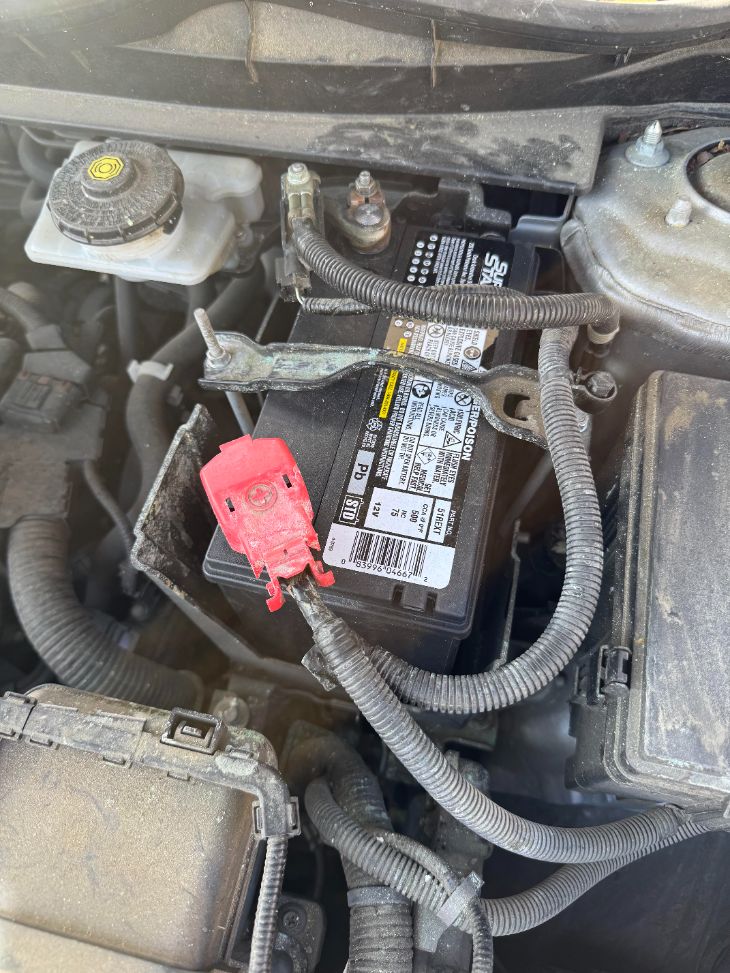

Custom Modifications: The Honda CR-V Larger Battery Tray Mod
Many fourth and fifth-generation Honda CR-V owners complain about the small, factory-installed Group 51R battery.
This undersized battery often struggles to turn the engine over during freezing winter mornings.
Performing a honda crv battery upgrade is a highly popular project among the CR-V Owners Club community.
By executing a honda crv larger battery tray bracket mod, you can successfully install a much larger Group 24F or Group 35 battery.
This modification replaces the factory plastic tray with an OEM (Original Equipment Manufacturer) Honda Odyssey battery tray.
You will also need to adjust your J-bolts to accommodate the taller and wider dimensions of the upgraded casing.
Check out our detailed guide on honda crv custom modifications to learn more about optimizing your electrical setup.
For those on a strict budget, sourcing parts for a used honda crv battery bracket replacement from a donor vehicle is a highly cost-effective alternative.
Prevention of Rust and Corrosion on Battery Brackets
The charging process naturally releases tiny amounts of sulfuric acid vapor into the engine bay.
These acidic fumes quickly attack bare steel, resulting in thick, flaky rust on your hold-down hardware.
To prevent this, apply a thin coat of automotive grease or anti-seize lubricant to the J-bolt threads.
Using stainless steel aftermarket hardware is another fantastic way to ensure your brackets remain rust-free forever.
A rusty bracket is the main reason why owners look into a used honda crv battery bracket replacement to keep their engine bay looking neat.
There is nothing more satisfying than opening your hood to find a clean, rust-free engine bay.
Long-Term Battery Maintenance Protocols for Families
As a busy family driver, your Honda CR-V must remain reliable every single day.
We recommend inspecting the battery clamp tightness during every routine oil change.
Give the bracket a firm tug to ensure it does not wiggle or slide on its mounting points.
A proactive honda crv battery tie down bracket replacement is cheap insurance against road vibration cracking internal battery plates.
Additionally, always clean off any blue or white powdery buildup around the terminals immediately.
Keeping your electrical connections clean guarantees your starter motor always receives maximum current.
Common Pitfalls to Avoid During Installation
The most common mistake amateur mechanics make is overtightening the hold-down hex nuts.
Using a heavy-duty impact wrench will crush the battery housing and cause a catastrophic acid leak.
Another frequent error is dropping the small J-bolts into the bottom engine splash shield during removal.
To avoid this, keep a telescoping magnetic pickup tool close by to catch any falling hardware.
Finally, never skip cleaning the rust off the battery tray before putting the new components in place.
Ignoring this step ensures that the new bracket will begin rusting within just a few months.
Frequently Asked Questions
Q: Will replacing the battery bracket myself void my Honda factory warranty?
A: No, performing a basic battery bracket replacement will not void your vehicle’s factory warranty.
Under the Magnuson-Moss Warranty Act, manufacturers cannot void warranties simply because you installed aftermarket or non-OEM hardware.
However, if you damage the battery casing or drop a tool that shorts out the electrical system, that specific damage will not be covered.
Q: What is the exact torque specification for the battery bracket nuts?
A: According to the Honda factory workshop manual, the bracket hex nuts should be tightened to approximately 8 to 10 foot-pounds.
This is equivalent to “hand-snug plus one quarter-turn” using a basic hand ratchet.
Never exceed this rating, as the plastic top edge of the battery is very easy to warp or crack.
Q: Can I complete this DIY project without any special automotive tools?
A: Absolutely, this is one of the easiest DIY projects you can perform on your Honda CR-V.
All you need is a basic 10mm socket wrench or even a simple adjustable hand wrench.
No expensive diagnostic scanners or specialized mechanic tools are required to get the job done right.
Q: Does this bracket installation process apply to Honda CR-V Hybrid models?
A: Yes, but keep in mind that the auxiliary 12V battery on Hybrid models is often located in a different compartment than traditional gasoline models.
Always consult your official Honda Owner’s Manual to locate the exact position of your 12V battery before turning any wrenches.
The physical bracket clamping mechanics remain identical, but access clearances may vary slightly between trim levels.
“I’ve driven a CR-V for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know your backup camera has a hidden top-down ‘drone view’? Or that your cruise control automatically downshifts on steep mountain hills to save your brakes?
bryansgarage.com · Bryan Mark
Conclusion
Replacing a worn or rusted battery bracket is a quick, inexpensive way to protect your Honda CR-V’s electrical heart.
By taking action today, you prevent costly breakdowns and extend the overall lifespan of your battery.
