In This Guide
- Discover how to replace failing underbody rivets step-by-step.
- Identify the absolute best hardware options to prevent future rattling noises.
- Understand how heat shield issues connect to broader exhaust system maintenance.
- Learn how to protect your catalytic converter from environmental wear and theft.
How to Replace Your Honda CRV Catalytic Converter Shield Rivets
Your honda crv catalytic converter shield is exposed to extreme heat cycles, road debris, and winter salt.
Over time, the original aluminum rivets stretch, corrode, and inevitably fail.
This failure results in a metallic buzzing sound that can make your reliable SUV sound completely broken.
Fortunately, carrying out a honda crv cat guard rivets replacement is an easy task you can perform in your driveway.
You do not need to purchase expensive, temporary used honda crv catalytic converter shield rivets from a salvage yard.
Instead, sourcing the best pop rivets for crv catalytic cover shield repairs ensures a permanent, rust-free fix.
Required Tools and Parts
| Tool / Part | Recommended Specification | Purpose |
|---|---|---|
| Pop Rivet Gun | Heavy-Duty Hand Riveter | Sets the new rivets securely |
| Replacement Rivets | 3/16-inch Aluminum or Stainless Steel | Secures the metal shield plates |
| Power Drill | With 3/16-inch Cobalt Drill Bit | Extracts old, seized rivets |
| Safety Gear | ANSI-Approved Eye Protection | Protects eyes from falling rust scale |
Step-by-Step Installation Instructions
-
Step 1: Elevate Your CR-V Safely
Park your Honda CR-V on a flat concrete surface and firmly engage the emergency parking brake.
Use a heavy-duty hydraulic floor jack to raise the front end of the vehicle.
Place certified jack stands under the factory-approved frame lifting points.
Never work underneath a vehicle supported only by a hydraulic jack, as sudden failure can be fatal.
-
Step 2: Drill Out the Damaged Rivets
Locate the loose section of your catalytic cover shield.
Use your power drill and a sharp cobalt drill bit to drill straight through the center of the old, spinning rivet heads.
Apply moderate pressure to prevent the drill bit from slipping off the smooth rivet face.
Be extremely careful not to drill too deep and puncture the precious metal converter casing directly behind the shield.
-
Step 3: Clean the Mounting Flanges
Use a wire brush to remove rust scale, road grime, and corrosion from around the mounting holes.
A clean surface prevents the new rivets from seating unevenly or loosening prematurely.
Apply a light coat of high-temperature anti-seize lubricant to the freshly cleaned mounting holes.
-
Step 4: Align the Shield and Insert New Pop Rivets
Align the shield mounting tabs with the corresponding holes on the lower exhaust frame hanger.
This is where learning how to install rivets on crv cat shield housings becomes incredibly simple.
Insert your new 3/16-inch rivet into the nozzle of your heavy-duty pop rivet gun.
Push the rivet mandril firmly through both aligned holes until the rivet shoulder sits completely flush.
Squeeze the handles of the rivet gun firmly until the mandril snaps off, locking the shield in place.
-
Step 5: Inspect and Vibe-Test the Shield
Gently pull on the outer edges of the heat shield to confirm that there is absolutely zero play or movement.
If you need to re-rivet catalytic converter shield on honda crv components that still wiggle, add a stainless steel backing washer to bridge enlarged mounting holes.
Carefully lower the vehicle back to the ground and start the engine to check for any remaining rattles.
Here at Vroomdan, we are fully committed to helping you tackle these easy maintenance tasks at home.
You can find more detailed vehicle maintenance tutorials by visiting our homepage at Vroomdan.
Understanding Your Honda CR-V Exhaust System Vibrations
The honda crv exhaust system operates under extreme physical stress.
According to official Honda service documentation, your exhaust pipes can quickly reach operating temperatures of over 1,200 degrees Fahrenheit.
These intense thermal fluctuations cause constant expansion and contraction of the exhaust metals.
This cycle weakens the original mounting rivets holding the heat shield assembly together.
If you ignore a rattling heat shield, the metal plate can break free entirely while driving.
This can result in physical road hazards or severe damage to underbody wiring looms.
Furthermore, constant vibration can trigger an unexpected check engine light, throwing a painful honda crv code p0420 due to oxygen sensor readings being thrown off by localized cooling leaks.
Preventing Costly Damage and Securing Your Honda CR-V Catalytic Converter
The honda crv catalytic converter is one of the most targeted components on family crossovers today.
Thieves target these parts because they contain valuable precious metals like platinum, palladium, and rhodium.
A standard catalytic converter can be stolen in less than sixty seconds using a simple battery-powered reciprocating saw.
If your converter is stolen, the total honda crv catalytic converter replacement cost can easily exceed $2,500 at a licensed dealership.
While installing the best pop rivets for crv catalytic cover shield repairs stops annoying rattles, you might want to upgrade your security.

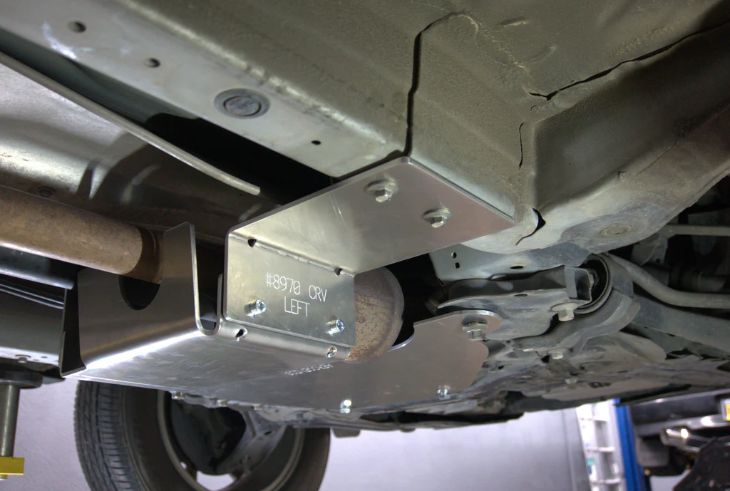

Installing a specialized honda crv catalytic converter lock provides a robust physical barrier that deters thieves.
These security plates utilize high-grade aircraft cables and security hardware that are incredibly difficult to cut through silently.
Practical Exhaust Maintenance for Daily CR-V Commuters
To avoid sudden, noisy exhaust failures, perform a visual check under your car during every oil change.
Look for signs of white oxidation around the aluminum rivet points, which signals galvanic corrosion.
If you live in the Rust Belt, wash your vehicle’s undercarriage thoroughly after driving on salted winter roads.
Road salt accelerates the chemical breakdown of the metal flanges, causing shields to detach prematurely.
Taking five minutes to rinse your underbody can save you hundreds of dollars in exhaust system repairs.
Common DIY Mistakes to Avoid When Re-Riveting Your Shield
The most common mistake home mechanics make is using standard steel hardware on aluminum shields.
Mixing dissimilar metals triggers rapid galvanic corrosion, causing your brand-new rivets to fail within months.
Always use premium aluminum or pure stainless steel pop rivets to match the shield’s metallurgy.
Another major mistake is drilling too aggressively into the factory mounting holes.
If you slip or push too hard, you can easily puncture the thin walls of your catalytic converter.
A tiny pinhole leak in the converter casing will trigger immediate emissions codes and require costly professional welding to fix.
Frequently Asked Questions
Q: Will replacing my heat shield rivets void my Honda factory warranty?
A: No, replacing missing or broken shield rivets with aftermarket aluminum rivets will not void your factory vehicle warranty.
The Magnuson-Moss Warranty Act protects consumers, meaning the manufacturer cannot void your warranty unless your specific repair actively caused damage to the exhaust system.
Q: Can I do this repair at home without a professional car lift?
A: Yes, you can safely complete this entire repair in your driveway using a set of sturdy jack stands and standard hand tools.
Always make sure to block the rear wheels and work on a perfectly level concrete surface before lifting your SUV.
Q: What size drill bit and rivet diameter does the Honda CR-V heat shield require?
A: Most model years of the Honda CR-V utilize standard 3/16-inch diameter rivets for the factory exhaust heat shields.
Using a matching 3/16-inch cobalt drill bit allows you to quickly clean out the old rivet holes without enlarging them.
Q: Can I use heavy-duty zip ties or wire instead of pop rivets?
A: No, you must never use plastic zip ties or thin copper wire to secure your underbody heat shields.
The extreme heat produced by your catalytic converter will instantly melt plastic and quickly snap thin copper wire, creating a serious road hazard.
“I’ve driven a CR-V for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know your backup camera has a hidden top-down ‘drone view’? Or that your cruise control automatically downshifts on steep mountain hills to save your brakes?
bryansgarage.com · Bryan Mark
Conclusion
Replacing your damaged heat shield rivets is a simple DIY job that keeps your commute quiet and protects your exhaust.
