How to Calibrate Your Honda CRV Headlight Assembly Adjustment Height
Properly setting your honda crv headlight assembly height is crucial for safe driving.
You do not need to tolerate the blinding frustration of oncoming drivers flashing their lights at you.
This step-by-step DIY (Do-It-Yourself) guide will teach you how to aim headlight low beam height honda crv models with factory-level precision.
Prerequisites & Tools Needed
Time Required: 30 minutes
Difficulty: Easy (Beginner-friendly)
Gather the following tools before starting your adjustment project:
- A long-shaft Phillips #2 screwdriver (at least 8 inches long is ideal).
- A standard tape measure (25-foot capacity works best).
- A roll of low-tack painter’s tape.
- A reliable tire pressure gauge.
- A cardboard sheet or dark towel to block one headlight beam.
You must also locate a completely flat driveway with a light-colored vertical wall.
Ensure your vehicle is parked on a level surface to avoid infuriating measurement errors that ruin your calibration.
Step-by-Step Instructions
-
Step 1: Check Tire Pressure and Cargo Load
Before aligning your lights, you must ensure the SUV sits completely level.
Use your pressure gauge to adjust all four tires to their factory-recommended settings.
Remove any heavy items from your rear cargo area to prevent suspension sag.
Confirm that your spare tire, jack, and tools are in their correct factory locations.
This simple setup prevents frustrating leveling errors that can ruin your optical alignment.
-
Step 2: Position the SUV and Mark Centerlines
Park your vehicle on flat ground directly facing a light-colored vertical wall.
Drive forward until your front bumper is nearly touching the flat surface.
Use a piece of painter’s tape to mark the exact vertical and horizontal center of both headlight lenses on the wall.
This initial mark gives you a reliable baseline before you begin to aim headlights on wall target crv setups.
Always perform this step slowly to avoid scratching your bumper against the wall.
Ensure you switch off all fog lights or high-beams during this step so they do not distort your center marks.
-
Step 3: Back Up Exactly 25 Feet
Put your vehicle in reverse and slowly back straight away from the wall.
Stop reversing when the front of your headlight lenses is exactly 25 feet away from the surface.
Ensure the vehicle remains perfectly perpendicular to the wall during this movement.
This distance is the industry standard needed to properly aim headlights on wall target crv alignments.
-
Step 4: Create the Low-Beam Target Line
Measure the vertical height from the ground to the center of your headlight lens.
Go to the wall and measure down exactly two inches from your original tape marks.
Place a long horizontal strip of painter’s tape at this new height across the wall.
This visual indicator represents the proper adjust headlight beam height specs crv standard.
This clear horizontal boundary prevents you from blinding oncoming drivers with excessively high low-beams.
Check that the tape is perfectly level from left to right using a small bubble level.
-
Step 5: Engage the Adjustment Screws

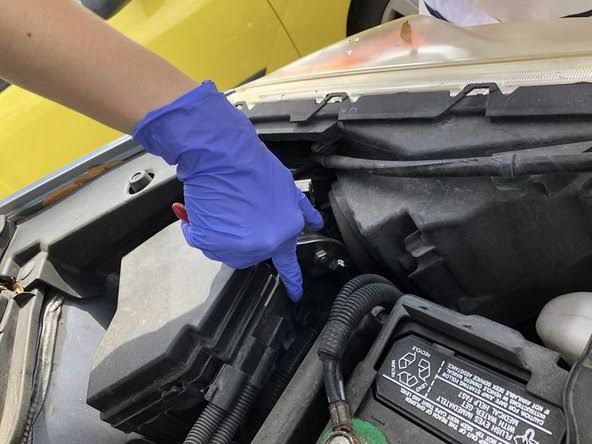

Pop your hood and locate the small geared adjustment wheel on the back of each headlight housing.
Insert your long Phillips screwdriver into the marked vertical alignment guide hole.
Slowly turn the screwdriver clockwise to raise the beam or counterclockwise to lower it.
Align the top edge of the bright light beam with your lower tape line on the wall.
This precise step completes your honda crv headlight adjustment screw vertical alignment routine.
Be careful not to over-tighten the gear, as you can easily snap the soft plastic housing.
At Vroomdan, we are dedicated to helping family SUV owners master their own vehicle maintenance.
By learning how to complete simple tasks like headlight aiming, you save hundreds of dollars in dealership fees.
Discover more practical tips and diagnostic tutorials by visiting our main resource center at Vroomdan.
Understanding CR-V Headlight Aiming Specs and Geometry
Proper headlight alignment is not just a matter of personal road comfort.
Federal safety standards mandate precise drop angles to protect oncoming motorists from glare.
According to official Honda specifications, the low-beam cutoff must sit slightly below the bulb center height.
This geometric drop ensures that the beam strikes the pavement rather than rising into oncoming windshields.
If you have recently completed a honda crv headlight replacement, this calibration is absolutely mandatory.
New OEM (Original Equipment Manufacturer) housings are almost never aligned out of the box, leading to a dangerous lack of road visibility.
Using a clear diagram or a wall targeting chart makes it easy to master how to aim headlight low beam height honda crv systems on your own.
Halogen vs. LED Headlight Adjustments across CR-V Generations
Different generations of the Honda CR-V employ distinct headlight technologies.
Older model years rely on halogen bulbs, which produce a soft, warm glow with a somewhat fuzzy cutoff line.
Newer fifth and sixth-generation models use advanced LED (Light Emitting Diode) projectors that project a bright, white light with a razor-sharp cutoff edge.
Aligning a used honda crv headlight assembly adjustment height setup with halogen bulbs requires locating the center of the soft light pool.
In contrast, the sharp visual edge of LED projectors makes vertical leveling incredibly simple.
Always refer to your owner’s manual to verify if your specific trim features self-leveling capabilities.
How Honda Sensing Radar Integration Affects Aiming
Modern Honda CR-Vs are equipped with the sophisticated Honda Sensing driver assist suite.
This safety package relies on a windshield camera and a front grille radar to detect road signs and obstacles.
If your headlight beams are misaligned, the lane-keep camera may struggle to detect lane markings in dark conditions.
Incorrect beam height can also cause the automatic high-beams to behave erratically or fail to disengage for oncoming vehicles.
By manually centering your headlights, you ensure these intelligent safety features operate flawlessly.
If you ever perform a honda crv tail light replacement, make sure to inspect your vehicle’s overall level and rake angle as well.
Practical Application Guide & Maintenance Tips
Daily road vibrations can gradually shift your headlight alignment over time.
Potholes, speed bumps, and rough terrain can slowly rattle the internal gears out of position.
We recommend checking your beam height at least once a year, preferably before the winter driving season.
Keep in mind that hauling heavy cargo or towing a trailer causes the rear suspension to compress.
This rear sag tilts the front of the vehicle upward, raising your headlight beams into the eyes of other drivers.
If you regularly carry heavy loads, consider setting your light height slightly lower than standard factory specifications.
This small, proactive adjustment prevents stressful confrontations with oncoming drivers who think your high-beams are active.
Overcoming Common DIY Mistakes
Many home mechanics make simple mistakes that can lead to expensive repair bills.
The most common error is using the wrong size screwdriver or applying too much force to the adjustment gears.
These geared alignment mechanisms are made of soft plastic and can strip easily under heavy pressure.
If you feel resistance while turning the gear, stop immediately to avoid breaking the internal leveling bracket.
Another frequent mistake is performing the adjustment on a sloped driveway or uneven ground.
Even a tiny tilt will translate into a massive error over a 25-foot distance.
Taking your time to prepare a level test area saves you from the heartbreaking expense of purchasing an entirely new housing.
Frequently Asked Questions
Will adjusting my headlight height at home void my vehicle warranty?
No, manually adjusting your headlight height will not void your factory Honda warranty.
This task is classified as a standard maintenance adjustment that owners can perform at home.
However, physical damage caused by stripping the plastic gears with incorrect tools will not be covered under warranty.
Why does my headlight beam seem to vibrate when I drive over bumps?
A vibrating headlight beam typically indicates a loose bulb or a broken plastic retaining clip inside the assembly.
Inspect the back of the headlight housing to confirm the bulb is securely locked into place.
If the bulb is tight, the internal leveling cradle may have slipped off its track, requiring professional repair.
Do Honda CR-V headlights require horizontal adjustment?
Most North American Honda CR-V models do not feature a factory horizontal adjustment screw.
Horizontal alignment is set at the factory and rarely changes unless the vehicle suffers front-end collision damage.
Focus exclusively on the vertical adjustment gear to resolve your low-beam height issues.
