Few things match the sheer dread of hearing a rapid clicking noise when turning your SUV key, leaving you stranded in your driveway. At Vroomdan, we know how a faulty honda crv starter motor clicking relay can instantly ruin your day. Fortunately, this starting failure is incredibly common and highly solvable right at home once you know the exact diagnostic steps, starting with some incredible hidden CR-V features that many owners don’t know about.
Your CR-V has a secret trick that starts the SUV when your key fob dies.
And 14 other things Honda never told you.
Dead fob fix · Global window down trick · The hidden folding picnic table · Walk Away Auto Lock · and 11 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark
In This Guide
- Understanding Starter Relay Mechanics: Learn how the relay controls the electrical current flowing directly to your starter motor.
- Step-by-Step Diagnostic Protocol: A clear, simple process to isolate a bad battery, dead relay, or failed solenoid.
- Expert Mechanical Deep-Dive: Technical insights on voltage drop testing and starter solenoid contacts.
- Preventative Maintenance Strategies: How to keep your Honda starting system running smoothly to avoid breakdown anxiety.
Understanding Your Honda CRV Starter Motor Clicking Relay and Power Delivery
When you turn the ignition key or press the start button, your Honda starting system initiates a highly coordinated electrical sequence.
The ignition switch sends a small current to activate the starter cut relay located in the under-hood fuse box.
This critical relay acts as a heavy-duty switch, closing the high-current circuit that connects the honda crv battery directly to your starter motor.
If the electrical pathway experiences resistance or low voltage, you will hear a rapid clicking noise instead of a healthy engine crank.
This is a classic scenario of a honda crv bad starter relay clicks fix guide failure that many owners misdiagnose as a major engine defect.
Understanding whether you have a single loud click or rapid metallic clicks is the secret to isolating the true culprit.
A single heavy click usually points directly to a locked honda crv starter motor or a failing solenoid coil.
In contrast, rapid machine-gun clicking indicates that the relay is rapidly cycling on and off because system voltage is dropping below 10 volts under load.
By following the correct diagnostics, you can avoid paying hundreds of dollars in unnecessary towing and dealership service fees.
The Ultimate Honda CRV Starter Motor Clicking Fix Protocol
Before beginning your diagnostic routine, gather a few basic tools to ensure safety and precision.
Prerequisites and Tools Needed:
- Digital Multimeter (DMM)
- 10mm and 12mm Sockets and Ratchet
- Wire Terminal Cleaning Brush
- Safety Glasses and Work Gloves
- A known-good 12V Jump Starter or Booster Cables
Time Required: Approximately 30 to 45 minutes.
-
Check and Clean the Battery Terminals
Locate your battery under the hood and inspect the metal terminal connections for white or green powdery corrosion.
Use a 10mm wrench to loosen the terminal clamps and pull them off the battery posts.
Thoroughly clean both the post and the inner ring of the clamp with your wire brush to restore metal-to-metal contact.
Tighten the clamps securely so they cannot be rotated by hand, as loose terminals easily lead to a frustrating completely stranded and helpless situation.
-
Measure Static and Cranking Battery Voltage
Set your digital multimeter to the DC Voltage setting and place the red lead on the positive terminal and the black lead on the negative terminal.
A fully charged, healthy battery must read between 12.4 and 12.6 volts with the engine completely off.
Have an assistant attempt to crank the engine while you carefully monitor the multimeter display screen.
If the voltage drops below 9.6 volts during this test, your battery is discharged or damaged and cannot support the starter load.
-
Execute the Starter Relay Swap Test
Open the primary fuse box cover in the engine bay and locate the starter cut relay using the diagram on the lid.
To safely diagnose starter clicks honda crv relay guide steps, pull the relay straight up out of its socket.
Locate a matching relay of the identical size and part number in the fuse box, such as the horn or air conditioning clutch relay.
Insert this known-good relay into the starter position and try cranking your vehicle again.
If the engine fires up immediately, you have successfully isolated a bad relay and can replace it cheaply at any auto parts store.
-
Verify the Ground Cable Integrity
Follow the heavy black negative battery cable down to where it connects directly to the metal engine block or transmission casing.
Ensure the mounting bolt is tight and completely free of rust or road debris that can disrupt the electrical return loop.
A weak ground wire is a notorious culprit behind the honda crv clicking noise on start fix issues that puzzle many DIYers.
At Vroomdan, we believe that simple electrical diagnostics should be accessible to every family SUV owner.
By taking these steps, you can confidently locate the source of your starting issue without guesswork.
For more detailed step-by-step guides, visit our comprehensive home page at Vroomdan.
How to Identify a Failing Honda CRV Starter Motor vs. a Dead Battery
It is incredibly easy to confuse a completely dead battery with a mechanically failed starter assembly.
To differentiate them, turn on your CR-V headlights and look closely at their brightness while trying to start the car.
If the headlights dim to almost nothing when the key is turned, your battery simply lacks the amperage to crank the engine.
However, if the headlights remain perfectly bright and crisp while you hear a heavy, single clacking sound, your honda crv starter motor clicking is caused by internal mechanical failure.
According to certified ASE mechanics, this symptom indicates that the starter internal armature has hit a “dead spot” or the brushes have worn away completely.
While some budget-conscious owners might search for a used honda crv starter motor clicking relay to try and save money, replacing the relay rarely fixes a physically damaged motor assembly.
You can sometimes bypass a dead spot temporarily by tapping on the starter housing with a wooden stick while cranking the key.
This physical shock can shift the brushes back into contact with the armature, offering a temporary honda crv starter solenoid clicking no start fix to get you home.
The Mechanics of the Honda CRV Starter Solenoid Clicking Solenoid System

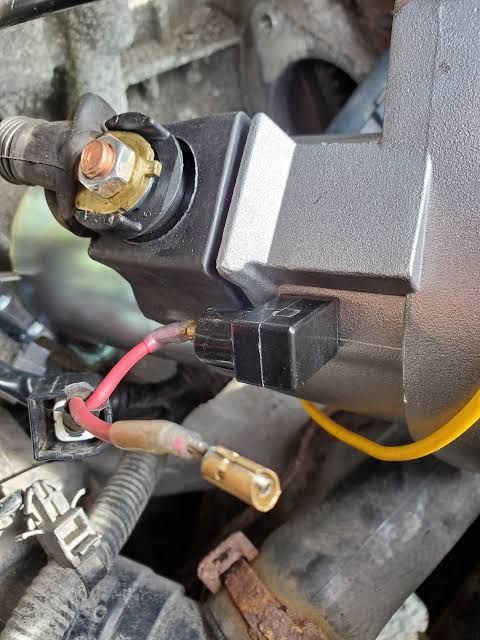

The starter solenoid is an electromagnetic switch mounted directly onto the starter motor assembly.
When current from the ignition switch passes through the honda crv starter motor clicking solenoid, it creates a magnetic field that pulls an iron plunger inward.
This physical movement accomplishes two critical mechanical tasks simultaneously.
First, it pushes the starter drive gear into engagement with the heavy teeth of the engine flywheel.
Second, it bridges two heavy copper contacts to complete the electrical circuit from the battery to the starter motor.
Over thousands of start cycles, these heavy copper contacts degrade, burn, and develop pitted surfaces.
When this happens, the solenoid will physically move and click loudly, but the electric current cannot cross the damaged copper bridge.
For skilled DIY mechanics, a honda crv starter motor rebuild kit can replace just these contacts at a fraction of the cost of a new assembly.
However, if you prefer a permanent solution, referencing a comprehensive honda crv starter replacement guide to install a complete new assembly is highly recommended.
Preventative Maintenance for Your Honda CR-V Starting System
Avoid starting failures by practicing simple, proactive maintenance on your CR-V starting components.
Have your battery tested annually at any local auto care center, especially before winter temperatures arrive.
Apply a high-quality protective sealer spray or terminal grease to the battery posts to keep moisture and corrosion away.
Additionally, pay close attention to how long it takes your engine to fire up on cold mornings.
If you notice a slow or sluggish crank, it is a clear warning sign that either your battery is weakening or your starter motor is beginning to fail.
Taking care of these small symptoms early will save you from being stranded in an emergency.
Common Mistakes to Avoid When Troubleshooting Starter Clicks
One of the most expensive mistakes you can make is purchasing a new starter motor without testing your battery under load first.
This error results in massive disappointment and wasted money when the brand new starter continues to click rapidly.
Another common mistake is failing to clean the mounting surface of the starter motor during installation.
The starter motor casing relies on its metal contact with the engine block to complete its high-current ground connection.
If there is rust, dirt, or grease on the mounting flange, your new starter will lack power and click continuously.
Frequently Asked Questions
Will replacing the starter relay myself void my factory warranty?
No, swapping or replacing a basic starter relay with an OEM part will not void your factory vehicle warranty.
Under federal consumer protection laws, dealerships cannot void your warranty unless they can prove your specific repair work directly caused a system failure.
Can I temporarily jumpstart my CR-V if the starter is clicking?
If the clicking sound is caused by a low or discharged battery, connecting jumper cables will provide immediate glorious relief as the engine starts up.
However, if your starter motor internal components or solenoid contacts are completely dead, jumping the battery will have absolutely no effect.
How long does a typical Honda CR-V starter motor last?
A high-quality original starter motor typically lasts between 100,000 and 150,000 miles under normal driving conditions.
Frequent short trips with constant starting cycles can wear out the solenoid and internal brushes much sooner.
Is a single click different from a rapid clicking noise?
Yes, a single loud metallic clack generally means the solenoid is working but the motor itself is locked or dead.
Rapid machine-gun clicking is almost always a sign of low battery voltage or a severely loose battery terminal connection.
“I’ve driven a CR-V for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know your backup camera has a hidden top-down ‘drone view’? Or that your cruise control automatically downshifts on steep mountain hills to save your brakes?
bryansgarage.com · Bryan Mark
Conclusion: Drive Confidently Without Starting Issues
Diagnosing starting issues is easy once you understand the relay, battery, and starter connection.
Team Vroomdan is always here to help you conquer daily automotive challenges without dealership stress.
Ready to get the most out of your SUV? Check out more guides on Vroomdan or email us at contact@vroomdan.com — we are here to help you discover more hidden diagnostic secrets.
Disclaimer: Always consult your official Honda Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
