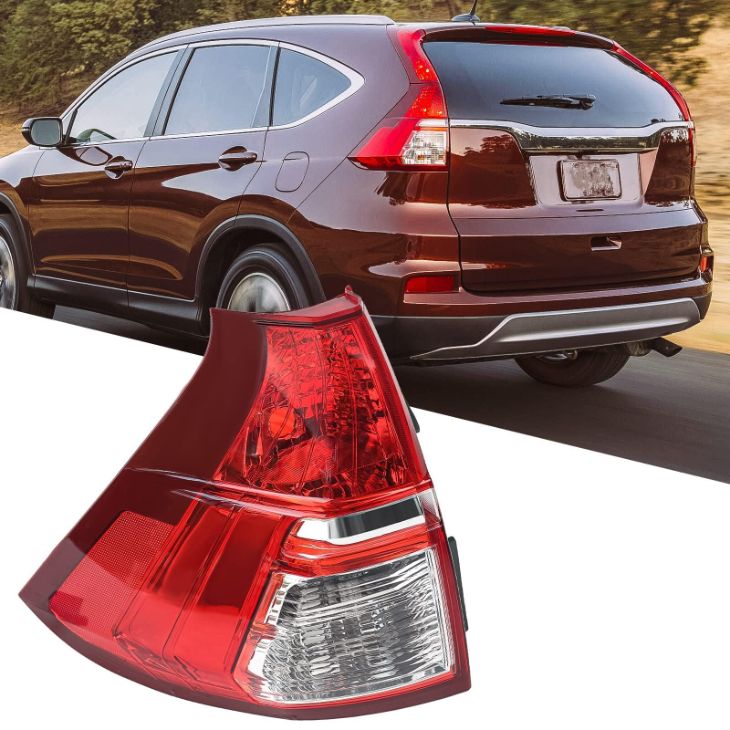

The Complete Honda CRV Tail Light Assembly Replacement Guide
Replacing a damaged light housing is a straightforward job that you can complete in your own garage.
A cracked lens allows moisture to seep inside and destroy your electrical system.
This honda crv tail light assembly replacement tutorial will walk you through the entire process step-by-step.
Prerequisites and Tools Needed
Before you begin, gather the necessary tools to avoid mid-project frustration.
You will need a 10mm socket wrench, a flathead screwdriver, and plastic trim removal tools.
We also recommend wearing safety glasses and mechanic gloves to protect your hands.
The entire job should take no more than 30 to 45 minutes to complete.
-
Step 1: Disconnect the Battery and Secure the Vehicle
Park your SUV on a flat surface and engage the parking brake.
Pop the hood and use your socket wrench to disconnect the negative battery terminal.
This safety step prevents accidental electrical shorts or blown fuses while handling the honda crv tail light wiring harness.
-
Step 2: Access the Tail Light Mounting Screws
Open the rear liftgate to access the plastic trim panels covering the mounting hardware.
Locate the two small plastic cover caps on the inner edge of the light assembly.
Gently pry these caps off using a plastic trim tool to avoid scratching the paint.
Use this how to replace tail light housing honda crv guide to reveal the 10mm bolts underneath.
-
Step 3: Remove the Retaining Bolts
Fit your 10mm socket wrench onto the upper retaining bolt and turn it counterclockwise.
Remove the bolt completely and place it in a magnetic tray so you do not lose it.
Repeat this exact process for the lower retaining bolt on the assembly housing.
-
Step 4: Pull the Housing Straight Back
Grasp the sides of the outer light assembly firmly with both hands.
Pull the unit straight back toward the rear of the vehicle to release the alignment pins.
Do not wiggle the light from side to side because you might snap the plastic mounting tabs.
-
Step 5: Disconnect the Electrical Harness
Locate the electrical connector plug attached to the rear of the housing unit.
Squeeze the release tab on the wiring harness and pull it away from the light assembly.
Now you can completely remove the old, damaged unit from the vehicle body.
-
Step 6: Install the New Assembly
Plug the wiring harness directly into your new honda crv tail light replacement unit.
Align the plastic guide pins on the housing with the grommets on the metal vehicle frame.
Push the assembly forward firmly until you hear it snap securely into place.
Reinstall the 10mm bolts, tighten them snug, and pop the plastic covers back over the screw heads.
At Vroomdan, we want to help you master every aspect of your family vehicle.
Check out our growing library of step-by-step DIY tutorials at Vroomdan to save thousands on maintenance costs.
Expert Deep-Dive: Understanding CR-V Electrical Components
Modern Honda CR-V models feature complex light-emitting diode (LED) systems that demand careful handling.
According to official Honda service manuals, any sudden voltage spike can ruin the sensitive LED boards.
Always inspect the rubber weather stripping gasket around the new housing before mounting it.
ASE certified mechanics warn that a loose seal will let water leak into your cargo area.
This moisture can eventually cause a short circuit in your Honda Sensing safety camera systems.
If your rear lights fail to illuminate after installation, use this honda crv rear light housing unit guide to re-check the socket pin alignment.
Many owners on the CR-V Owners Club forum report that bent metal pins inside the connector are a common culprit.
How Tail Light Failure Affects Your Hybrid System
If you drive a CR-V Hybrid, your electrical system is even more sensitive to resistance issues.
The vehicle’s ECU (Engine Control Unit) monitors voltage draw across all exterior bulbs.
A damaged or low-quality aftermarket housing can trigger diagnostic trouble codes (DTCs) on your dashboard.
To avoid these head-scratching glitches, we highly recommend sourcing certified OEM (Original Equipment Manufacturer) parts.
If you want to save money, utilizing a used honda crv tail light assembly replacement guide can help you find high-quality salvage yard options.
Make sure to verify that any used donor part matches your specific trim level and model year.
Honda CR-V Tail Light Cost Guide and Estimations
Understanding the financial aspects of this repair can help you make the best decision for your family budget.
We compiled real-world data to create this transparent honda crv tail light assembly replacement cost guide.
The table below highlights what you can expect to pay for parts and labor across different options.
| Replacement Path | Estimated Parts Cost | Estimated Labor Cost |
|---|---|---|
| Dealership Service Center | $180 – $350 (OEM) | $120 – $200 |
| Independent Auto Shop | $120 – $250 (Aftermarket) | $80 – $150 |
| Vroomdan DIY Method | $65 – $150 (Aftermarket/Used) | $0 (Free) |
As you can see, performing this repair yourself saves you a significant amount of cash.
You can use those savings to buy high-quality tools or upgrade other features on your vehicle.
If your outer lens is intact but leaking, you might only need to replace cracked tail light housing honda crv guide seals rather than the whole assembly.
Keep in mind that a full honda crv tail light assembly replacement cost guide comparison shows DIY is always the smartest financial choice.
Overcoming Common DIY Assembly Replacement Mistakes
Many backyard mechanics rush through this replacement and make simple errors.
The most frequent mistake is overtightening the 10mm mounting bolts.
Excessive torque will easily crack the delicate plastic mounting tabs on your brand-new housing unit.
Always tighten the bolts by hand until they are snug, then add just a quarter-turn with your wrench.
Another common pitfall is forgetting to swap the existing light bulbs into the new housing.
Some aftermarket assemblies do not ship with bulbs included, leaving you in the dark after installation.
Make sure to clean the metal contact points with electronic cleaner spray before snapping the harness back together.
If you choose to replace cracked tail light housing honda crv guide designs, test the lights before finalizing the assembly seal.
Frequently Asked Questions
No, replacing your light housing with an OEM or high-quality aftermarket part will not void your warranty.
Under the Magnuson-Moss Warranty Act, manufacturers cannot void your warranty unless they prove your aftermarket part directly caused a failure.
However, we recommend avoiding cheap uncertified electrical components to keep your wiring system perfectly safe.
Modern CR-V tail lights are manufactured as completely sealed housing units.
This means you cannot purchase or replace just the outer plastic lens by itself.
You must replace the entire assembly unit if the outer plastic is cracked or shattered.
Condensation occurs when moist air enters the housing through loose gaskets or tiny hairline cracks.
To prevent this, apply a thin layer of high-quality silicone grease around the rubber bulb sockets and mounting gaskets.
This simple mechanic trick creates an airtight seal that blocks out water and ambient humidity.
