Maintaining your steering system is critical for family safety, and a torn honda crv tie rod grease boot replace can quickly escalate into a complete steering failure. Here at Vroomdan, we guide SUV owners through identifying a failing honda crv tie rod end boot before dirt ruins the underlying ball joint. Addressing this early saves hundreds in dealership costs, much like discovering the hidden CR-V features that many owners don’t know about.
Your CR-V has a secret trick that starts the SUV when your key fob dies.
And 14 other things Honda never told you.
Dead fob fix · Global window down trick · The hidden folding picnic table · Walk Away Auto Lock · and 11 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark
In This Guide
- Step-by-Step Replacement: Master the entire mechanical boot swap process safely at home.
- Expert Diagnostics: Identify torn grease seals versus failing ball joints early.
- Preventative Care: Apply simple mechanics tips to extend your steering lifespan.
- Mistake Mitigation: Avoid costly DIY errors that ruin steering geometry.
Honda CRV Tie Rod End Boot Replacement Steering Grease Seal Fix
A torn boot allows abrasive road grit to destroy your inner ball joint rapidly.
Replacing the boot early preserves your steering response and prevents costly tow truck bills.
You will need a replacement rubber boot, high-quality synthetic grease, a tie rod end puller, and basic socket sets.
This project takes approximately one to two hours per side depending on your experience level.
Step 1: Secure the CR-V and Remove the Front Wheel
Park your vehicle on a flat, level concrete surface and engage the emergency brake.
Place solid wheel chocks behind the rear tires to prevent any rolling hazards.
Loosen the lug nuts on your front wheels before lifting the SUV with a heavy-duty hydraulic jack.
Always place robust jack stands under the factory-approved frame rail locations before crawling underneath.
Never rely solely on a hydraulic jack to support your vehicle’s immense weight during suspension work.
Remove the lug nuts fully and pull the wheel off to expose the outer steering assembly.
Step 2: Clean the Joint and Remove the Cotter Pin
Locate the outer tie rod end where it connects directly to the steering knuckle assembly.
Use a wire brush to remove any caked-on road grime and rust scale from the threads.
Spray the mounting castle nut and cotter pin thoroughly with a high-penetration rust solvent.
Allow the solvent to soak for at least ten minutes to ease disassembly.
Use heavy-duty needle-nose pliers to straighten and pull out the old metal cotter pin.
If the cotter pin breaks off inside the hole, you must carefully drill it out or use a punch.
Step 3: Separate the Tie Rod from the Steering Knuckle
Loosen the castle nut using a nineteen-millimeter wrench until it reaches the top of the threads.
Do not remove the nut completely because it protects the delicate metal threads from damage.
Attach your specialized tie rod end puller tool to the knuckle and tighten the center bolt down.
You will hear a loud pop when the tapered shaft finally breaks free from its seating.
Remove the tool and take off the castle nut completely to free the outer tie rod.
Step 4: Clean the Ball Joint and Pack with Fresh Grease
Slide the old cracked rubber boot off the metal joint using a flathead screwdriver.
Wipe away all dirty, gritty grease from the polished ball joint using a clean shop towel.
Inspect the metal surface carefully for deep scoring, rust, or loose steering movement.
Clean the sealing groove on the tie rod body thoroughly to ensure a leak-free fit later.
Pack the joint thoroughly with high-performance lithium grease until it is fully saturated.
Step 5: Install the New honda crv tie rod end boot
Position the new rubber boot over the ball joint and press it firmly into the metal groove.
Verify that the rubber lip seats perfectly to create an airtight, moisture-resistant barrier.
Ensure the boot does not twist or pinch when seating the retaining wire ring.
Use the provided metal spring clips to lock the top and bottom of the boot in place.
Reinsert the tie rod shaft back into the steering knuckle and hand-tighten the castle nut.
Step 6: Torque to Factory Specs and Install a New Cotter Pin
Tighten the castle nut to thirty-five foot-pounds using a calibrated torque wrench.
Align the nut slots with the hole in the ball joint shaft to fit the cotter pin.
Never back off the nut to align the hole; always tighten it slightly further if needed.
Always use a brand-new cotter pin to guarantee the castle nut never backs off while driving.
Bend the legs of the cotter pin around the nut to lock it securely in place.
At Vroomdan, we are dedicated to helping family SUV owners master their own routine maintenance.
We encourage you to visit Vroomdan for more expert step-by-step automotive repair guides.
Understanding the CR-V Steering Grease Boot and Suspension Dynamics
The steering system on your CR-V relies heavily on protected articulation points.
A healthy honda crv tie rod end grease seal prevents dirt from acting as an abrasive sandpaper.
Once the seal fails, a honda crv tie rod boot leak quickly washes away the lubricating grease.
According to certified ASE mechanics, driving with an exposed ball joint can cause severe loose steering.
This issues directly affects your CR-V’s overall handling performance and lane-keeping safety.
Replacing just the boot is a smart way to prevent buying a full honda crv tie rod end replacement.
Keeping the steering assembly sealed preserves tire contact patterns during sharp maneuvers.
Identifying a Torn Boot vs. Failing Outer Tie Rod
You must inspect your crv steering grease boot during every routine oil change.
Look for fresh grease splattering around the inside of your front wheel barrel.
A torn boot requires a quick honda crv outer tie rod grease boot replacement to save the joint.
However, if you feel a distinct clunking when turning, the joint itself is likely already ruined.
In that case, you must budget for a full honda crv tie rod end replacement cost.
Using a used honda crv tie rod end boot is generally not recommended because old rubber degrades rapidly when stored.
This degraded rubber will crack quickly under cold weather and heavy suspension travel.
Always choose a new OEM or premium aftermarket polyurethane boot for long-lasting protection.
Practical Application Guide and Steering System Maintenance
Keep your suspension clean by spraying down the undercarriage after driving on salted winter roads.
Road salt and road debris are the leading causes of dry-rotted rubber boots.
If you notice uneven tire wear, it is highly recommended to schedule a professional honda crv wheel alignment.
An alignment ensures your new steering components wear evenly and tracking stays straight.

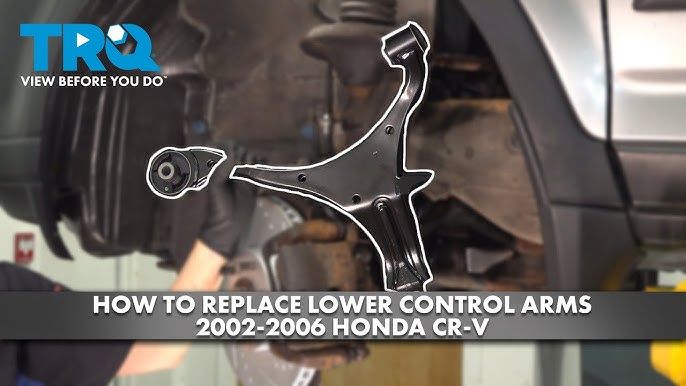

During this inspection, look closely at other components to see if you need a honda crv control arm replacement.
Overlooking a cracked control arm bushing can destroy your newly installed steering components.
Comprehensive honda crv suspension replacement planning saves you money on combined labor costs.
Always check your steering gear boots for tears to prevent hydraulic fluid leaks.
Overcoming Common DIY Steering Repair Mistakes
Many DIYers make the mistake of using aggressive pickle forks to separate the tie rod joint.
A pickle fork will tear the rubber boot instantly if you plan to reuse it.
Always use a specialized puller tool to separate steering components cleanly.
Another critical mistake is ignoring torque specifications when tightening the castle nut.
Over-tightening can strip the threads while under-tightening leads to dangerous steering play.
Finally, never reuse old cotter pins as they can fatigue and snap under stress.
Make sure to apply high-temperature grease designed specifically for steering components.
Frequently Asked Questions
Can I replace just the boot instead of the entire tie rod?
Yes, you can absolutely replace just the boot if the underlying joint is still tight.
Replacing the boot early is a highly cost-effective preventative measure.
However, if the joint has play or makes popping noises, you must replace the whole assembly.
How do I know if my honda crv tie rod boot leak has damaged the joint?
The easiest way to check is by lifting the wheel and checking for play.
Grab the tire at the nine and three o’clock positions and wiggle it back and forth.
If you feel any play or hear clicking, the inner ball joint has already failed.
In this scenario, a simple boot fix will not restore your steering safety.
Do I need a wheel alignment after doing a honda crv outer tie rod grease boot replacement?
If you did not loosen the tie rod jam nut, your alignment should remain unchanged.
Replacing only the rubber boot does not alter the overall length of the steering linkage.
However, getting an alignment checked is always a smart safety precaution after any suspension work.
What is the best way on how to replace tie rod grease boot crv at home?
The best method is to use a dedicated cup-style tie rod separator tool.
This prevents any metal damage to the delicate steering knuckle surface.
Always clean the old joint thoroughly and pack it with high-grade synthetic grease.
“I’ve driven a CR-V for 4 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know your backup camera has a hidden top-down ‘drone view’? Or that your cruise control automatically downshifts on steep mountain hills to save your brakes?
bryansgarage.com · Bryan Mark
Conclusion
Fixing a torn boot early protects your CR-V’s steering and saves your wallet.
Team Vroomdan is always here to provide accurate, real-world DIY solutions.
Ready to get the most out of your SUV? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more SUV secrets and maintenance guides.
Disclaimer: Always consult your official Honda Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
