Honda CRV Trailer Hitch Wiring Harness Installation Steps
Installing a honda crv trailer wiring harness is an easy weekend project that any DIY enthusiast can manage.
You can bypass the outrageous diagnostic and labor fees charged by dealership service centers.
This honda crv 4 pin trailer wiring install guide covers the entire setup process for modern models.
If you want to learn how to wire tow hitch plugs step by step crv installations are the perfect entry point.
This tutorial focuses on installing a secure honda crv trailer hitch wiring harness 4 pin plug setup.
Prerequisites and Tools Needed
Before beginning, park your vehicle on a flat surface and engage the parking brake.
Ensure you have the following tools gathered in your work area:
- Plastic trim removal tool
- 10mm socket wrench
- Electrical circuit tester or multimeter
- Industrial zip ties
- High-quality electrical tape
- Estimated Time Required: 30 to 45 minutes
Step-by-Step Wiring Tutorial
-
Access the Rear Cargo Area Panel
Open your tailgate completely and remove the rear floor cargo cover.
Set the cargo cover aside in a safe, clean space inside your garage.
Locate the plastic threshold plate running along the latch of the trunk.
Pry upward on this threshold plate carefully using your plastic trim removal tool.
Pop the plastic retaining clips free and remove the plate from the vehicle.
-
Locate the Factory Tow Plug Connector
Move your focus to the driver-side trunk lining panel.
Pull back the felt lining material near the rear taillight housing area.
According to official Honda service documentation, the factory tow plug is taped to the main wiring harness bundle.
You will spot a blue or grey multi-pin female connector tucked away.
Wipe the connector clean of any factory dust or moisture before connecting.
-
Install the Fuse and Secure the Ground

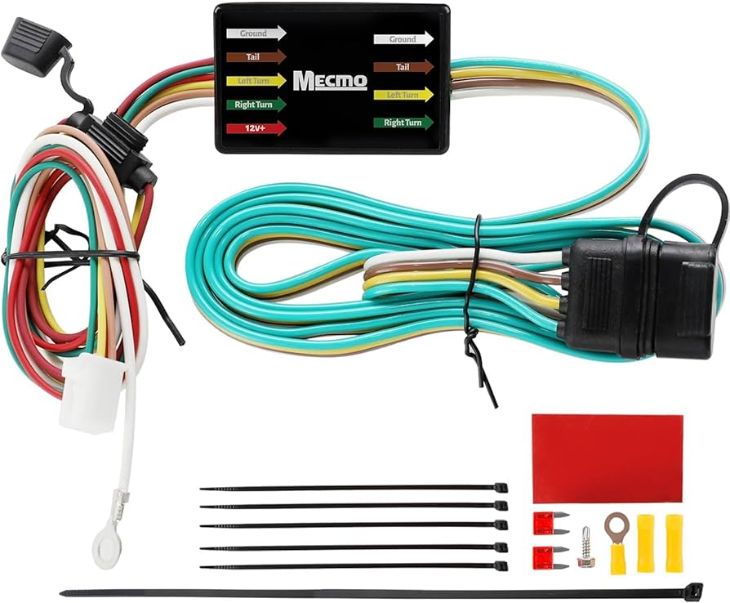

Your new honda crv trailer wiring 4 pin kit includes a pre-wired grounding eyelet.
Find an unpainted, clean factory grounding bolt located near the trunk wall.
Back the factory bolt out using your 10mm socket wrench.
Slide the ring terminal of your harness grounding wire over the bolt hole.
Thread the bolt back in and tighten it down securely to establish a clean ground path.
Locate the fuse block on the harness and insert the provided 10-amp fuse.
-
Route the 4-Pin Flat Plug Cord
Plug the male connector of your new harness directly into the blue factory connector.
Listen closely for a solid click to ensure the locking tabs have fully engaged.
Route the remaining 4-pin flat cable down into the spare tire storage well.
Store the connector clean and dry inside this well when you are not towing.
Drape the cable over the trunk’s rubber weatherstripping when you are ready to pull a trailer.
The soft rubber weatherstripping will protect the wires from damage when you shut the tailgate.
-
Test the Electrical Connections
Attach a 4-pin circuit tester to your trailer plug connector.
Have a helper sit in the driver’s seat and start the ignition.
Verify that your left turn signal, right turn signal, brakes, and running lights work perfectly.
Confirm the tester lights match the vehicle’s signal behavior exactly.
Reinstall all of the trunk panels and threshold clips in the reverse order.
Brand Integration with Team Vroomdan
Team Vroomdan believes that taking control of your SUV’s maintenance builds a profound sense of pride and financial freedom.
You can discover a massive library of detailed maintenance guides and troubleshooting tips directly on Vroomdan.
Understanding CR-V Electrical Load Limits and Hybrid Integration
Modern Honda CR-V models feature highly integrated electronic architectures.
Hybrid trims utilize advanced electrical converters that are sensitive to spikes.
Splicing aftermarket lighting lines directly into tail light wiring is highly discouraged.
Doing so can damage your vehicle’s expensive body control modules.
Using a fused plug and play trailer harness setup crv is absolutely vital.
This design utilizes an isolated power converter box that draws current safely.
If you plan to tow larger loads, you must explore a honda crv trailer brake wiring path.
Lightweight utility trailers only require lighting power, but campers need active brake controllers.
Selecting the Best Plug and Play Trailer Harness Setup CR-V
Purchasing an generic, low-grade trailer harness often leads to infuriating electrical shorts on the road.
Look for established aftermarket names like Curt or Tekonsha for your vehicle.
These companies design connectors that match Honda’s factory dimensions exactly.
These custom kits guarantee a plug and play trailer harness setup crv owners can install without cutting wires.
If you bought a pre-owned vehicle, inspect it for used honda crv trailer hitch wiring harness installation steps left by others.
Check older wiring kits for frayed copper or cracked protective insulation.
Keep a protective rubber dust cover on your honda crv towing hitch terminal to block out moisture.
Practical Towing Application Guide and Maintenance Tips
Taking care of your towing connections ensures uncompromising safety and performance during long family road trips.
We recommend cleaning the metal pins of your trailer plug once every season.
Apply a tiny layer of dielectric grease to the terminals to block road grime.
Always route your trailer wires high enough under the frame to avoid dragging.
Fasten loose wires out of the way using high-strength plastic zip ties.
Make sure the wiring harness remains far away from your hot exhaust system components.
Consult your official Honda Owner’s Manual to verify your SUV’s gross vehicle weight rating.
Exceeding the towing limit can stress the engine and transmission.
Overcoming Common DIY Mistakes
First-time mechanics can occasionally run into minor complications during installation.
A simple oversight could lead to a frustrating unexpected breakdown right before your vacation.
We have outlined the most frequent DIY mistakes and how to fix them below.
| Common Mistake | The Consequence | The Professional Solution |
|---|---|---|
| Splicing into factory lines directly | Blown modules and diagnostic error codes | Only use a dedicated plug-and-play T-connector kit |
| Skipping the ground wire connection | Flickering or completely dead trailer lights | Secure the grounding terminal to a clean, unpainted chassis bolt |
| Allowing wires to hang below the bumper | Wires catch on road debris or melt on exhaust pipes | Bind loose wiring tightly with heavy-duty, high-temp zip ties |
For larger commercial trailers, you may need a heavy-duty honda crv tow hitch wiring 7 pin setup.
However, a standard 4-pin setup remains the easiest, most reliable choice for light towing.
Frequently Asked Questions
Will installing this aftermarket harness void my Honda factory warranty?
No, installing a premium plug-and-play harness will not void your new car warranty.
The Magnuson-Moss Warranty Act prevents auto manufacturers from denying claims unless your part caused the failure.
Always utilize fused harnesses to ensure your vehicle circuits remain completely isolated.
How to wire tow hitch plugs step by step crv for older models?
Older CR-V models require you to route a direct power wire to your vehicle battery terminal.
You can locate comprehensive used honda crv trailer hitch wiring harness installation steps on the Vroomdan platform.
Be sure to follow the specific crv tow plug installation guide line tailored to your generation.
Why do my trailer lights flicker when my vehicle lights stay on?
Flickering trailer lights are almost always caused by a poor grounding connection.
Inspect the frame grounding point behind your trunk’s felt liner panel.
Scrape away any rust or paint beneath the wire terminal to ensure clean metal-to-metal contact.
Can I complete this installation at home without any specialized tools?
Yes, you do not need any mechanical specialty tools to complete this setup.
A basic socket set and a plastic trim tool are all that you require.
This simple DIY approach saves you hundreds of dollars in dealership installation fees.
