Diagnosing and Repairing the p0230 Chevy Silverado Code
Diagnostic Trouble Code (DTC) P0230 indicates a fuel pump primary circuit malfunction inside your truck engine control architecture.
This diagnostic fault triggers when the Powertrain Control Module (PCM) detects improper voltage command feedback on the fuel pump relay control circuit.
When this control circuit breaks down, your truck engine cranks continuously without delivering fuel pressure to the fuel injectors.
Experiencing this issue delivers a heart-stopping moment of helplessness when your truck fails to start during an important work trip.
Thankfully, resolving this primary circuit fault does not always require replacing the entire electric fuel pump assembly inside the tank.
Required Diagnostics Tools and Equipment
Before beginning your diagnostic process, collect these necessary mechanical tools for effective circuit troubleshooting:
- Digital Multimeter capable of measuring DC voltage and resistance continuity
- 10mm socket wrench and ratchet set
- 12V Automotive Circuit Test Light
- Electrical terminal contact cleaner spray
- Replacement 4-pin or 5-pin ISO automotive relay (30-amp OEM specification)
Estimated Diagnostic Time: 30 to 45 minutes.
Step 1: Locate the Underhood Fuse and Relay Center
Pop your Silverado hood and open the main underhood power distribution electrical fuse box on the driver side wheel well.
Remove the plastic protective lid cover to access the internal relays and blade fuses.

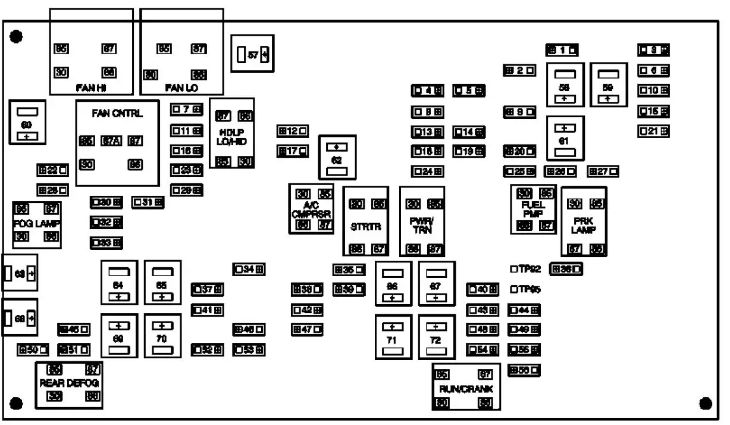

Locate the main fuel pump relay position and check the corresponding chevy silverado fuel pump fuse using the diagram printed beneath the lid cover.
Inspect the fuse filament closely to ensure no electrical melt down has ruptured the metal conductor path.
Step 2: Inspect and Swap the Fuel Pump Relay
Grasp the fuel pump relay firmly and pull it straight upward out of the fuse box socket board.
Examine the electrical spade terminals on the bottom of the relay for white oxidation or dark electrical burn marks.
For a fast field test, swap this relay with a non-critical identical relay such as your horn relay or windshield wiper relay.
Attempt to start your Silverado engine to see if swapping the relay immediately resolves your vehicle no-start condition.
Step 3: Test Power and Ground at the Relay Terminal Socket
Turn your ignition key to the ON position without cranking the engine over.
Set your digital multimeter to DC Volts and insert the red probe into terminal socket 86 (PCM command feed).
Touch the black probe to a clean metallic engine ground to confirm 12 volts of key-on power is delivered.
Next, test terminal socket 30 to verify constant fused battery power is present directly from the main battery terminal line.
Step 4: Perform Control Circuit Wiring Harness Tests
If primary power readings are normal, inspect the wiring harness running beneath the fuse block for pinches or corrosion.
Verify that terminal socket 85 maintains a clean ground path back to the PCM circuit ground network.
Spray electrical contact cleaner directly into the female terminal sockets to eliminate high electrical resistance created by dirt buildup.
Reinstall a functional OEM replacement relay firmly back into its matching socket location.
At Vroomdan, our dedicated team regularly documents simple DIY electrical fixes that keep hardworking truck owners away from greedy repair shops eager to charge thousands for basic work.
Understanding Chevy Silverado Fuel Pump Relay Control Architecture
The fuel delivery system on Chevy Silverado trucks relies on precision electronic signals sent directly from the engine computer.
According to the official Chevy Factory Service Manual, turning your key energizes the PCM to ground terminal 85 of the fuel relay.
This small low-current ground pulse pulls internal mechanical contacts shut inside the relay block housing.
Once closed, high-amperage current flows across terminal 30 to terminal 87 straight down toward the fuel tank.
Finding a fault along this primary control line prevents the in-tank electric pump motor from priming during key ignition.
On model years 1999 through 2006 (GMT800 platform), this relay system operates as a classic electro-mechanical circuit.
On model years 2007 and newer (GMT900 and K2XX platforms), Chevrolet integrated an advanced Fuel Pump Flow Control Module (FPCM).
The FPCM regulates fuel volume output by adjusting pulse-width modulation based on active engine torque demands.
Understanding these mechanical architectural differences helps you isolate whether your error lies in simple primary wiring or module programming.
Distinguishing Code P0230 from Fuel Pressure Hardware Failures
A major point of confusion among truck owners is confusing electrical primary circuit codes with actual mechanical pump failures.
DTC P0230 specifically tracks low or high voltage deviations within the primary control side of the circuit array.
Conversely, mechanical fuel pump wear or clogged fuel filters trigger distinct secondary pressure faults like DTC P0087.
Replacing your fuel pump when code P0230 is present often results in immense frustration when your truck still refuses to start.
Experienced mechanics on leading Silverado forums always recommend validating electrical command signals before dropping your fuel tank.
| Diagnostic Symptom | Primary Circuit Fault (P0230) | Mechanical Pump Failure |
|---|---|---|
| Fuel Pump Prime Sound | Completely Silent at Key-On | Whining or Intermittent Noise |
| Relay Click Audible | No Relay Engagement Click | Relay Clicks Normally |
| Multimeter Voltage | 0V at Relay Terminal 86 | 12V Present at Tank Connector |
Preventative Maintenance and Chassis Ground Wire Care
Corrosion remains the ultimate enemy of electrical circuit reliability in modern pickup trucks.
Underbody road salt and moisture frequently degrade ground connection point G103 and G105 located near the frame rails.
To prevent sudden electrical failures, inspect your chassis ground points during routine oil changes and maintenance sessions.
Unbolt the ground eyelet fasteners using a 10mm socket and sand wire contact faces down to bare steel.
Apply a thick layer of dielectric grease over cleaned ground points to seal out oxidation and moisture intrusion.
Performing this simple preventative task offers complete peace of mind during harsh winter driving conditions.
Overcoming Common DIY Diagnostic Mistakes
One dangerous mistake DIY mechanics make is inserting paperclips or solid jumper wires permanently across relay terminals 30 and 87.
While jumper wires help test fuel pump operation temporarily, leaving them connected forces the pump to run continuously.
This improper bypass drains your battery overnight and creates severe electrical short circuit risks across your vehicle wiring harness.
Another common mistake is purchasing cheap unbranded aftermarket relays from discount online retailers.
Always choose high-grade OEM parts meeting original General Motors electrical amperage and resistance specifications.
Frequently Asked Questions
Can a bad fuel pump relay cause my engine to crank but not start?
Yes, a failed fuel pump relay completely cuts off electrical power to the fuel pump motor inside your tank.
Without fuel pressure reaching the engine fuel rail, your starter will turn the engine over indefinitely without starting.
Where is the fuel pump relay located on my Chevy Silverado?
The fuel pump relay is located inside the main underhood fuse box situated on the driver side engine compartment.
Refer to the interior fuse cover legend diagram to pinpoint the exact 4-pin or 5-pin relay position for your model year.
Will fixing code P0230 clear my Check Engine Light automatically?
Once you fix the electrical short or replace the bad relay, the PCM will recheck circuit voltage during driving cycles.
The Check Engine Light typically clears itself after 3 to 4 successful ignition start cycles without detecting further circuit errors.
Can I test my fuel pump relay using a standard multimeter?
Yes, you can test relay coil resistance by setting your multimeter to Ohms and checking across terminals 85 and 86.
A functional relay typically measures between 60 and 100 Ohms of resistance across the internal coil winding.
