Running into a diagnostic trouble code on your truck can be stressful, especially when your engine stumbles under heavy load. A fault code p0358 chevy silverado indicates an issue with the cylinder 8 ignition coil primary or secondary control circuit. At Vroomdan, our team of experienced truck mechanics helps you diagnose this misfire quickly so you can skip expensive dealership fees. Understanding how your truck works is the key to unlocking its full capability and uncovering hidden features.
Your Silverado has a secret compartment hiding above your glove box.
And 8 other things Chevy never told you.
Hidden dash storage · Key fob window trick · Auto 4WD mode · Buckle to Drive · and 5 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-step diagnostic and repair process for cylinder 8 misfire issues.
- Deep mechanical dive into ignition coil driver circuit architecture.
- Preventative maintenance strategies to avoid recurring truck misfires.
- Common mistakes DIY mechanics make during coil pack testing.
How to Fix the p0358 chevy silverado Ignition Coil Circuit Issue
Diagnosing an engine code requires systematically checking electrical power, ground signals, and component resistance.
Before starting your work, gather the proper tools to complete this job safely in your home garage.
You will need a 10mm socket, a digital multimeter, dielectric grease, safety glasses, and an OBD2 scanner.
Total repair time takes approximately 30 to 45 minutes for intermediate DIY truck owners.
Step 1: Locate Cylinder 8 and Inspect the Wiring Harness
Cylinder 8 is located at the very rear of the passenger-side engine bank near the firewall on Chevy V8 models.
Open your truck hood and locate the rear-most ignition module on the passenger side valve cover.
Carefully press the plastic locking tab and disconnect the electrical connector from the coil assembly.
Inspect the connector terminals for green corrosion, backed-out pins, or cracked wire insulation.
Feeling overwhelmed by complex engine wiring harness issues is normal, but a simple visual inspection solves many electrical problems.
Step 2: Check Power and Ground Terminal Continuity
To pinpoint a persistent p0358 code chevy silverado fault, you must test voltage at the harness plug.
Turn your ignition key to the ON position without starting the engine.
Set your digital multimeter to DC voltage mode and touch the positive probe to the ignition feed pin.
Your meter should display key-on battery voltage of approximately 12.6 volts.
Verify that the ground wire maintains low resistance to the engine block using continuity mode.
Step 3: Remove and Test the Cylinder 8 Assembly
Use your 10mm socket to loosen and remove the retaining bolts securing the coil to the mounting bracket.
Pull the assembly straight off the spark plug boot with a slight twisting motion.
Check the rubber boot for carbon tracking, oil contamination, or heat cracks.
Swap this coil unit with cylinder 6 to determine if the trouble code changes location.
Replacing a failing component brings an incredible sense of relief after dealing with harsh engine vibrations.
Step 4: Clear Error Codes and Test Drive
Connect your diagnostic tool to the OBD2 port located directly beneath the driver-side dash panel.
Clear all active and pending trouble codes stored within the Powertrain Control Module memory.
Start your Silverado engine and monitor live data to ensure smooth cylinder balance across all banks.
Take your truck on a ten-minute test drive under moderate acceleration to verify full power restoration.
At Vroomdan, we provide clear maintenance guides so you can fix your truck with confidence.
Technical Analysis: Understanding Ignition Coil H Primary Secondary Circuit Code
Diagnostic code P0358 directly references an issue within the ignition coil h primary secondary circuit setup on your engine.
In General Motors technical terminology, letter H corresponds directly to cylinder number 8 in the firing sequence.
The Powertrain Control Module triggers this specific code when driver circuit current deviates from programmed parameters.
When the control module detects an open circuit or electrical short, it disables fuel injection to cylinder 8.
This protective strategy prevents unburned fuel from washing down cylinder walls or overheating your catalytic converter.
According to official Chevy technical bulletins, wiring harness friction near firewall brackets causes subtle intermittent shorts.
Nothing compares to the pure satisfaction of solving an elusive electrical headache with standard garage tools.
Exploring EcoTec3 V8 Engine Ignition System Architecture
Modern Chevy Silverado engines utilize dedicated coil-on-plug technology to deliver precise spark timing under varying loads.
Each individual unit relies on four distinct wire connections to operate correctly inside the engine compartment.
These connections include ignition power, chassis ground, low reference ground, and an ignition control driver line.
When replacing worn components, inspect your chevy silverado ignition coil pack for signs of heat cracking near the housing seams.
Because cylinder 8 rests near the rear firewall, heat build-up accelerates insulation degradation over time.

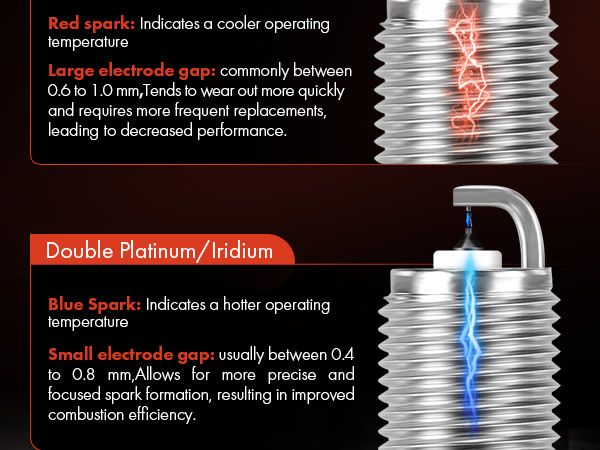

ASE certified mechanics recommend checking spark plug gaps whenever servicing driver circuit components.
Experiencing a sudden loss of towing power can be deeply stressful when pulling heavy trailers uphill.
Understanding your p0358 code chevy silverado driver architecture helps you prevent unexpected breakdowns while trailering.
Preventative Maintenance for Silverado Ignition Systems
Performing routine electrical maintenance protects your engine from unexpected misfires and keeps fuel economy high.
Apply a thin layer of dielectric grease to internal rubber boots to prevent moisture intrusion and boot tearing.
Replace spark plugs every 90,000 to 100,000 miles according to factory service recommendations.
Ensure wire harnesses remain locked into factory retention clips far away from hot exhaust manifolds.
Addressing minor engine stumbles early prevents permanent damage to expensive exhaust catalysts.
Common DIY Repair Errors to Avoid
Many home mechanics swap parts repeatedly without verifying electrical supply at the main connector plug.
Never pull directly on silicone spark plug wires because internal carbon cores break easily under tension.
Avoid over-tightening retaining bolts into delicate aluminum valve cover threads during installation.
Installing cheap unbranded replacement coils often leads to secondary circuit errors within a few months.
Always clear stored computer codes after completing repairs to reset operational fuel trim tables.
Paying attention to your ignition coil h primary secondary circuit integrity ensures long-term truck reliability.
Frequently Asked Questions
Can I continue driving my Silverado with an active P0358 code?
Driving with an active ignition circuit fault sends unburned fuel directly into your exhaust stream.
This unburned fuel ignites inside the exhaust, causing rapid overheating and premature catalyst destruction.
It is best to repair the circuit problem immediately to avoid costly secondary component failures.
What is the difference between fault code P0308 and code P0358?
Code P0308 indicates a general mechanical or combustion misfire detected on cylinder 8.
Code P0358 specifically indicates an electrical fault in the primary or secondary coil control circuit.
Troubleshooting a p0358 code chevy silverado issue requires testing wiring continuity rather than mechanical compression.
How much does it cost to repair a cylinder 8 coil fault?
Replacing the coil pack yourself costs between 40 and 90 dollars for high-quality OEM replacement parts.
Dealership repair costs range between 250 and 450 dollars for diagnostic lab labor and shop supplies.
Completing this straightforward repair at home saves significant money and builds DIY mechanical experience.
“I’ve driven a Silverado for 5 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know there’s a hidden storage compartment behind your rear seats? Or the button combo that switches your digital cluster to a completely different layout?
bryansgarage.com · July 28, 2026
Resolving a cylinder 8 ignition code restores engine power, improves fuel economy, and eliminates rough idling.
Team Vroomdan is dedicated to helping you master DIY repairs and uncover your truck’s true potential.
