How to Locate and Replace Your Toyota Camry Blower Resistor
Replacing a failed resistor block is one of the easiest interior maintenance tasks you can complete.
You do not need advanced mechanical knowledge to finish this repair in under thirty minutes.
Living through sweating through hot summer drives because your fan is stuck on low or off is entirely unnecessary.
Required Tools and Safety Prerequisites
Gather an 8mm socket driver or a standard Phillips head screwdriver.
Obtain a plastic trim removal tool to detach the lower passenger dashboard panel safely.
Keep a bright flashlight or headlamp nearby to illuminate the tight footwell workspace.
Purchase correct OEM parts or high-grade aftermarket replacement modules for your specific vehicle year.
Estimated total repair time is approximately 15 to 25 minutes for standard manual climate systems.
Step 1: Access the Passenger Under-Dash Trim
Park your vehicle on a flat surface and turn off the ignition completely.
Move the front passenger seat as far back as possible to give yourself maximum working space.
Look directly underneath the passenger side glove compartment to locate the plastic kick panel.
Use your plastic trim tool to unclip the retention fasteners holding the lower trim shield.
Gently pull the panel downward and disconnect any footwell light wiring connectors if equipped.
Step 2: Locate the Blower Motor Resistor Unit
Position your flashlight looking upward behind the glovebox toward the HVAC housing.
Identify the blower assembly mounted vertically near the cabin air filter housing.
Look directly adjacent to the main toyota camry blower motor casing.
You will see a small rectangular electrical connector with four thick wires plugged into a recessed block.
This module screwed directly into the plastic ductwork is your target resistor board.
Step 3: Disconnect the Electrical Connector and Mounting Screws
Press the locking tab on the wire harness electrical connector firmly with your thumb.
Pull the connector straight downward to detach it without tugging directly on individual wires.
Inspect the plastic plug interior for melting marks, burned pins, or green corrosion debris.
Use your 8mm socket driver to remove the two hex screws securing the resistor plate.
Set the old mounting screws aside in a secure location for reassembly.
Step 4: Install the New Resistor and Reassemble
Slide the old burnt resistor module out from the HVAC housing slot.
Compare the old component with your new part to verify identical mounting hole positions.
Insert the new resistor assembly into the HVAC housing channel gently.
Hand-thread both mounting screws before applying final low torque specs with your socket driver.
Reconnect the electrical wiring harness plug until you hear an audible click engagement.
Turn the vehicle key to ON and test every climate fan speed setting before reinstalling trim.
Our editorial team at Vroomdan continually tests real-world maintenance techniques on various model years.
We believe every owner deserves direct, transparent knowledge to keep their vehicles running flawlessly.
You can browse our extensive library of maintenance guides at Vroomdan for additional step-by-step automotive solutions.
Understanding Your Camry HVAC System and Resistor Mechanics
The climate control system relies on electrical resistance to step down voltage sent to the fan motor.
When you select fan speeds 1, 2, or 3, electrical current flows through small coiled resistor wires or solid-state thermal traces.
These components dissipate excess electrical energy as heat inside the cold airflow channel.
When speed 4 (maximum high) is selected, current bypasses the resistor entirely via a direct relay connection.
This design explains why a failed resistor leaves only the high-speed setting functioning properly on your toyota camry.
According to the official Toyota service manual, thermal overload protection fuses integrated into the module melt when excessive electrical resistance occurs.
Diagnosing Resistor Failure vs Motor Failure with a Multi-Meter Diagnostic
Before buying replacement parts, performing a multi-meter diagnostic prevents unneeded component purchases.
Set your digital multimeter to ohms resistance testing mode (Ω).
Touch the test probes across the input and output terminal pins of the unclipped resistor module.
An open circuit reading or infinite resistance indicates a blown internal thermal fuse.
If resistance values match factory specifications across all terminals, your issue lies within the fan motor or dash switch.
ASE Certified Mechanics report that high mechanical resistance in aging motor bearings frequently overloads the electrical connector.
Experience the immense relief of restored cold air by correctly identifying the root cause before replacing parts.

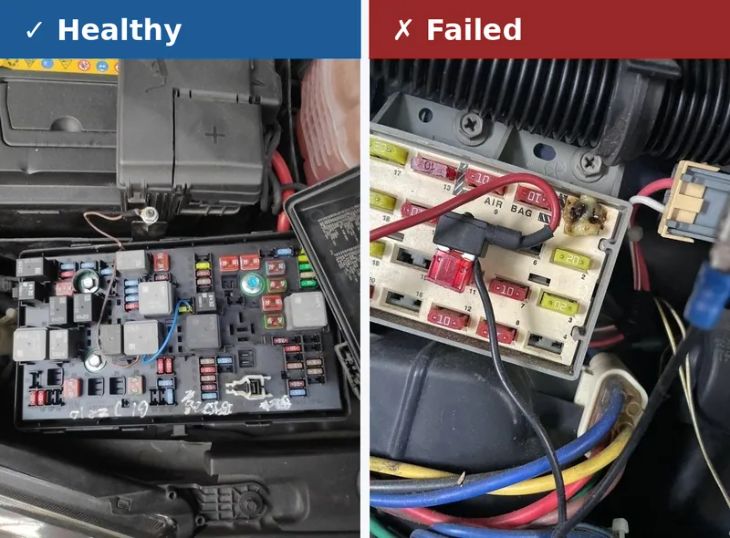

Checking your main toyota camry air conditioning fuses inside the engine bay is also recommended during initial diagnosis.
Practical Maintenance Guide & Cost-Saving Table
Preventative steps drastically extend the operating lifespan of replacement electrical components.
Always replace your cabin air filter every 12,000 to 15,000 miles to maintain optimal airflow across the cooling fins.
Restricted airflow causes severe thermal buildup around the resistor coils, leading to premature thermal trace failure.
| Repair Route | Estimated Cost Range | Time Required |
|---|---|---|
| Official Toyota Dealership Repair | $220 – $350 | 1 to 2 Hours |
| Independent Automotive Repair Shop | $140 – $220 | 45 Minutes |
| DIY Replacement using OEM parts | $25 – $50 | 20 Minutes |
Taking the DIY route yields significant savings while teaching you essential maintenance skills for various model years.
Overcoming Common DIY Replacement Mistakes
One common mistake owners make is ignoring a damaged electrical harness connector plug during assembly.
Plugging a new resistor into a melted plastic socket will cause immediate overheating and component failure.
Always splice in a new pigtail harness if any pins display thermal discoloration or severe corrosion.
Another mistake is over-tightening the mounting screws into the delicate plastic HVAC module housing.
Use light hand pressure to secure fasteners without stripping out the plastic threads.
Installing a low-quality counterfeit component instead of genuine OEM parts can also lead to premature electrical failure.
Avoid frustrating cabin noises by ensuring the under-dash trim panel clips are aligned properly during reassembly.
For newer trim levels, inspect your 2018 toyota camry blower motor wiring for updated automatic climate control harness configurations.
Frequently Asked Questions
Will replacing the blower motor resistor void my manufacturer warranty?
Replacing this component using proper procedures will not void your overarching vehicle warranty.
Magnuson-Moss Warranty Act protections allow vehicle owners to perform routine maintenance using quality parts.
Why does my cabin fan only operate on the highest speed setting?
The highest speed setting bypasses the resistor circuit completely using direct 12-volt power through a relay.
When internal resistor coils burn out, lower speed settings lose continuity, leaving only high speed operational.
Does automatic climate control use the exact same resistor unit?
Vehicles equipped with dual-zone automatic climate control use an electronic blower motor control module instead of a standard manual resistor.
Verify whether your vehicle utilizes manual knobs or digital climate controls before ordering parts.
How can I tell if my blower motor is causing the resistor to burn out?
If your climate fan squeaks, rattles, or draws excess current due to worn bearings, it causes severe electrical resistance.
Spin the motor cage by hand; if it feels stiff or gritty, replace both the motor and resistor simultaneously.
