Finding the exact Vroomdan specification for your toyota camry oil filter should never involve guesswork or unexpected garage mess. Every model generation requires precise filter element dimensions, specific housing torque limits, and the exact wrench tool. In this master guide, we break down part numbers, wrench sizes, and step-by-step filter installation so you can bypass over-priced dealership visits with absolute confidence. Before grabbing your ratchet, check out these hidden Toyota features you might be missing.
Your Camry can remote start using just your key fob.
And 9 other things Toyota never told you.
Key fob remote start · Auto-tilting reverse mirrors · Roll all windows down remotely · Radar cruise settings · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-Step Toyota Camry Oil Filter Replacement Procedure
- Exact OEM Part Numbers Across All Camry Generations
- Proper Oil Filter Wrench Cap Sizes and Torque Specifications
- Preventative Maintenance Strategies to Avoid Oil Leaks
- Critical DIY Mistakes That Cause Engine Damage
Essential Guide to Selecting and Changing Your Toyota Camry Oil Filter
Replacing your oil filter is the most crucial maintenance task for preserving engine longevity.
A fresh filter keeps harmful metal debris out of your engine bearings.
Performing this service yourself provides severe financial savings over dealership rates.
Before starting your DIY project, gather all required tools to avoid unnecessary delays.
Required Tools and Service Supplies
You will need a standard 14mm socket for the oil drain plug.
Acquire a 64.5mm 14-flute specialty cap wrench for the cartridge housing.
Keep a torque wrench capable of measuring 18 foot-pounds handy.
Prepare an approved oil catch basin and fresh shop towels.
Ensure you have the correct replacement filter element and new rubber O-rings.
Set aside roughly 45 minutes for completing the procedure safely.
Step 1: Safely Elevate Vehicle and Drain Engine Oil
Park your car on a level concrete surface and set the parking brake.
Raise the front end using hydraulic jack stands for secure safety clearance.
Remove the lower engine splash shield clips using a trim removal tool.
Position the oil pan underneath the oil pan drain bolt.
Loosen the 14mm drain plug and allow the old engine oil to drain completely.
Step 2: Remove Filter Housing Cap and Old Cartridge
Locate the plastic or aluminum oil filter housing assembly under the engine block.
Attach the 64.5mm 14-flute end wrench tool to your drive ratchet.
Rotate the housing counterclockwise to loosen the filter assembly.
Allow remaining oil from the housing body to drain into your pan.
Remove the spent paper filter element and dispose of it responsibly.
Step 3: Replace Rubber O-Rings and Insert New Filter Element
Locate the rubber O-ring seated in the housing cap grooves.
Pry the old rubber seal off carefully using a non-marring pick tool.
Apply fresh engine oil onto the replacement rubber O-ring.
Seat the new O-ring firmly into the exact lower groove on the cap.
Press the new paper oil filter element straight into the housing stem.
Step 4: Reinstall Filter Housing to Factory Torque Spec
Wipe all surrounding metal threads clean using a clean microfiber cloth.
Thread the filter housing back onto the engine block by hand to prevent cross-threading.
Attach your torque wrench to the 64.5mm flute wrench tool.
Tighten the plastic housing assembly to exactly 18 foot-pounds of torque.
Reinstall the oil pan drain plug with a new crush washer to 29 foot-pounds.

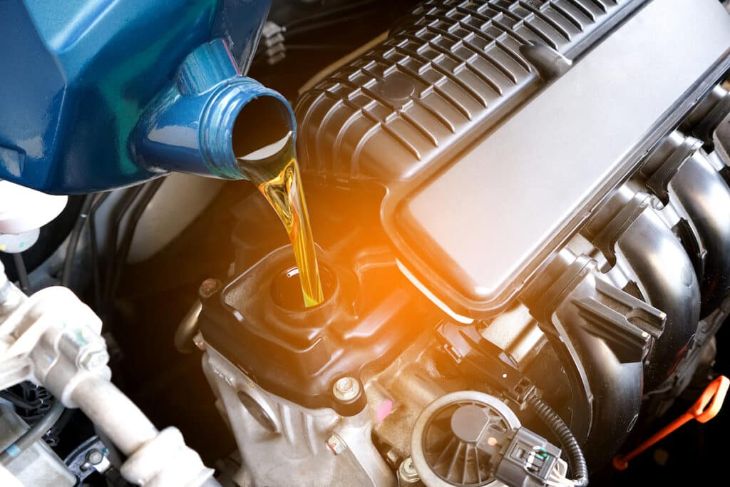

Refill the crankcase with fresh synthetic oil and check for leaks.
At Team Vroomdan, we believe empowering owners with technical mechanical knowledge removes the intimidation of DIY maintenance. You can explore more comprehensive step-by-step procedures in our dedicated toyota camry oil change guide.
Toyota Camry Oil Filter Part Numbers and Year Breakdown
Selecting the exact OEM part number prevents dangerous bypass leaks and internal pressure loss.
Toyota transitioned from traditional spin-on metal canisters to cartridge elements across modern engine families.
Understanding which system your specific toyota camry features ensures correct replacement purchasing.
Below is the master compatibility chart detailing exact factory part numbers across generations.
| Model Years & Engine | Filter Design Type | Toyota OEM Part Number |
|---|---|---|
| 2018–2024 Camry (2.5L 4-Cyl A25A-FKS) | Cartridge Element | 04152-YZZA1 |
| 2018–2024 Camry (3.5L V6 2GR-FKS) | Cartridge Element | 04152-YZZA1 |
| 2010–2017 Camry (2.5L 4-Cyl 2AR-FE) | Cartridge Element | 04152-YZZA1 |
| 2007–2017 Camry (3.5L V6 2GR-FE) | Cartridge Element | 04152-YZZA1 |
| 2002–2009 Camry (2.4L 4-Cyl 2AZ-FE) | Spin-On Canister | 90915-YZZF2 / 90915-YZZN1 |
Finding a genuine 2020 toyota camry oil filter requires verifying your engine displacement trim.
Whether servicing a base model or a 2020 toyota camry se oil filter, both 2.5L engines share the identical 04152-YZZA1 element.
Owners maintaining older generations will find the 2015 toyota camry oil filter uses the same cartridge standard.
Ordering the genuine toyota camry oil filter element guarantees proper pleat count and filtering efficiency.
Toyota Camry Oil Filter Wrench Size and Torque Specifications
Attempting to remove plastic cartridge caps using adjustable strap wrenches frequently destroys the housing tabs.
Toyota utilizes a specialized 64.5mm diameter cap tool fitted with 14 precise flutes.
This tool features slots that align directly with the structural ribbing on the filter cover.
Using an official tool prevents rounding off plastic teeth under high breaking torque.
Proper application of the specialized toyota camry oil filter wrench eliminates expensive tool slip accidents.
When reinstalling the cap, never rely on mechanical intuition or hand tightness alone.
The plastic housing cap requires exactly 18 ft-lbs (25 Nm) of structural torque.
Over-tightening cracks the composite plastic body, triggering massive oil pressure loss while driving.
Under-tightening permits the internal rubber seal to unseat, causing disastrous lower engine oil spraying.
If your housing features a center metal drain plug, torque that plug to 7 ft-lbs (9 Nm).
Owners seeking specific year details can reference our complete 2014 toyota camry oil change walkthrough.
Detailed historical specifications are also covered in our 2012 toyota camry oil change technical resource.
Practical Application Guide & Preventative Maintenance Tips
Executing scheduled filter changes maintains factory engine efficiency and safeguards resale value.
Toyota recommends replacing the filter every 10,000 miles when using full synthetic 0W-20 oil.
Severe driving conditions like heavy city traffic dictate shorter 5,000-mile service intervals.
Always inspect the old filter element pleats for metallic shine or heavy sludge build-up.
Fine metallic flakes inside the paper pleats warn of premature engine component wear.
Always buy Genuine Toyota OEM filters featuring internal bypass valves and high-density media.
Bargain aftermarket filters frequently lack anti-drainback valves, causing severe dry start engine knocks.
For earlier model years, consult our step-by-step 2007 toyota camry oil change procedure.
Adhering to a strict schedule is central to long-term toyota camry maintenance excellence.
Overcoming Common DIY Mistakes
A frequent error DIY mechanics make is misplacing the large outer rubber O-ring seal.
The new O-ring must seat inside the designated lower groove, not against the upper cap threads.
Placing the ring against upper threads pinches the rubber during tightening, causing instantaneous oil leaks.
Another major mistake is forgetting to lubricate the fresh rubber seal prior to thread insertion.
Dry rubber drags against metal engine threads, tearing the seal during final torque seating.
Never reuse old rubber O-rings during regular routine oil maintenance services.
Reused rubber loses elasticity, creating slow leaks that drain crankcase levels over time.
Be careful not to leave the old O-ring stuck on spin-on engine mounting bases.
Double-gasketing a spin-on filter creates immediate seal rupture upon engine ignition.
Frequently Asked Questions
Can I swap my plastic filter housing for an aluminum version?
Yes, many Camry owners replace composite plastic caps with factory Toyota metal housings.
Toyota part number 15620-31060 offers a direct metal upgrade for 2.5L and 3.5L cartridge systems.
This aluminum replacement prevents cracked housing ears caused by stubborn over-tightened plastic caps.
What happens if I over-torque the filter housing cap?
Over-tightening fractures the plastic body housing and strips delicate aluminum engine block threads.
A cracked filter housing causes sudden oil pressure loss, threatening complete engine destruction.
Always utilize an accurate mechanical torque wrench calibrated strictly to 18 ft-lbs.
Are aftermarket oil filters safe to use on my Camry?
High-quality name-brand synthetic filters meet OEM flow specs and offer reliable filtering protection.
However, ultra-cheap off-brand filters often collapse under continuous oil pump flow pressure.
Stick with genuine Toyota OEM elements to guarantee correct bypass pressure settings.
How do I know if my Camry takes a cartridge or spin-on filter?
Camry 2.4L engines from 2002 to 2009 use standard metal spin-on canister filters.
Models from 2010 onward equipped with 2.5L or 3.5L engines utilize cartridge paper elements.
Check under your engine bay for a black plastic or metal cap with a 14-flute top pattern.
“I’ve driven my Camry for 3 years and didn’t know it could do this.”
— The most common reaction when this article is shared
Did you know your side mirrors can automatically tilt down when you shift into reverse? Or that you can roll down all your windows from 30 feet away before getting in on a hot day?
bryansgarage.com · August 25, 2026
Conclusion
Mastering your oil filter replacement keeps your Camry running reliably for hundreds of thousands of miles.
Using correct part numbers, proper wrench tools, and exact torque specs protects your engine block from costly damage.
Ready to get the most out of your Camry? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more Camry secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
