When your dashboard diagnostic light illuminates with a toyota camry p0450 error code, tracking down the underlying fault can feel overwhelming. At Vroomdan, our expert automotive editorial team guides you through diagnosing Evaporative Emission Control System (EVAP) sensor malfunctions at home so you can avoid high repair bills. Before we inspect your vapor pressure sensor circuit, make sure to check out some unbelievable features built into your vehicle.
Your Camry can remote start using just your key fob.
And 9 other things Toyota never told you.
Key fob remote start · Auto-tilting reverse mirrors · Roll all windows down remotely · Radar cruise settings · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Understanding Diagnostic Trouble Code (DTC) P0450 causes and system mechanics.
- Required diagnostic tools and safety preparation for EVAP sensor testing.
- Step-by-step DIY instructions to inspect, test, and replace the vapor pressure sensor.
- Key differences between sensor circuit failures and EVAP system vacuum leaks.
- Proven maintenance habits to prevent recurring EVAP fault codes.

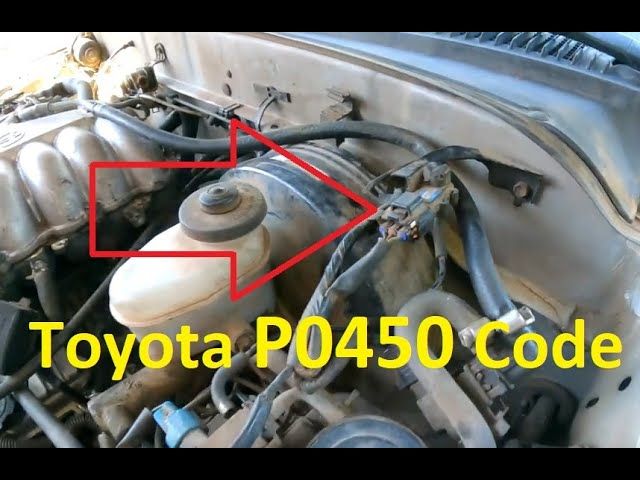

Toyota Camry P0450 Code EVAP Sensor Fix and Diagnosis
Diagnosing an EVAP vapor pressure sensor malfunction requires basic mechanical knowledge and simple hand tools.
You can complete this repair at home in approximately 45 minutes.
Prerequisites and Required Diagnostic Tools
Before beginning your diagnostic routine, gather the following essential tools:
- Digital multimeter capable of measuring Direct Current (DC) voltage and electrical resistance.
- 10mm socket wrench and ratchet set.
- Standard needle-nose pliers for hose clamp removal.
- Electrical contact cleaner spray.
- OBD (On-Board Diagnostics) code scanner.
- Safety glasses and protective mechanic gloves.
Step-by-Step Diagnostic and Replacement Instructions
-
Locate the EVAP Vapor Pressure Sensor Assembly
Park your vehicle on a flat level surface and engage the parking brake firmly.
The vapor pressure sensor monitors air pressure variations within the fuel tank and charcoal canister assembly.
On most model years, this component is mounted near the 2012 toyota camry evap canister behind the rear axle underbody.
Identify the small plastic sensor housing fitted with a three-pin electrical connector plug and a vacuum hose.
-
Inspect the EVAP System Wiring Harness Connector
Press down on the locking tab and disconnect the three-pin harness connector from the sensor.
Inspect the internal electrical terminals closely for signs of green copper corrosion or moisture ingress.
Road salt exposure frequently causes wire insulation chafing along the lower chassis subframe.
Spray the wiring terminals thoroughly with electrical contact cleaner to remove dirt and oxidation.
-
Test Circuit Reference Voltage with a Multimeter
Turn your vehicle ignition key to the ON position without cranking the engine.
Configure your digital multimeter to measure DC voltage across the harness power and ground leads.
Check for a consistent 5.0-volt reference signal supplied by the Engine Control Module (ECM).
If reference voltage is missing entirely, check for damaged wiring upstream in the EVAP system wiring harness.
-
Replace the Faulty OEM Vapor Pressure Sensor
Use needle-nose pliers to release the spring tension clamp on the attached vacuum hose.
Gently twist and pull the rubber vacuum hose away from the sensor nipple.
Remove the single 10mm mounting bolt securing the sensor housing bracket to the frame.
Install a fresh Original Equipment Manufacturer (OEM) vapor pressure sensor and torque the fastener securely.
Replacing a defective sensor eliminates frustration over failed state emissions inspections.
-
Clear Diagnostic Fault Codes and Perform a Drive Cycle Test
Plug your OBD diagnostic scanner into the port beneath the driver-side dashboard console.
Clear all active and pending codes to reset the internal ECM memory system.
Drive your car for 15 to 20 miles under combined city and highway driving conditions.
The ECM will run an automated EVAP monitor test to confirm correct sensor voltage feedback.
Our editorial team at Vroomdan creates comprehensive technical guides to simplify your home auto repairs.
Explore our complete library of maintenance solutions to master your routine toyota camry maintenance schedules easily.
Understanding EVAP Pressure Sensor Circuit Dynamics in Toyota Camry
The Evaporative Emission Control System captures fuel vapors inside the charcoal canister to prevent hydrocarbon leaks.
The vapor pressure sensor converts atmospheric pressure changes inside the canister into an electrical voltage signal.
When solving a p0450 toyota camry diagnostic issue, understanding circuit logic prevents unnecessary parts replacement.
Unlike a vacuum leak code such as a toyota camry p0455 fault, code P0450 indicates an electrical circuit out-of-range condition.
Official Toyota technical repair manuals state that normal output voltage ranges from 0.5 to 4.5 volts DC.
If the sensor output drops below 0.2 volts or exceeds 4.8 volts continuously, the ECM logs code P0450.
Unexpected warning lights can trigger extreme anxiety during daily highway commutes.
Testing output signals with a multimeter confirms whether the sensor membrane or wiring circuit is at fault.
Diagnosing Common Causes of P0450 Code Toyota Camry Issues
Internal diaphragm breakdown inside the OEM vapor pressure sensor is the primary cause of signal failure.
Liquid gasoline entering the charcoal canister degrades delicate silicone seals within the pressure sensor housing.
This failure frequently occurs when drivers consistently overfill their gas tank past the automatic shutoff click.
Underbody corrosion can also damage ground connections near the 2007 toyota camry evap canister mounting bracket.
Cross-referencing secondary fault codes helps pinpoint whether vacuum solenoids or pressure sensors require attention.
Review our detailed reference database covering all common toyota camry obd codes for fast diagnostics.
Practical Application Guide and EVAP Maintenance Tips
Adopting smart fueling habits protects your EVAP components from premature electrical and mechanical failure.
Always stop pumping gasoline immediately after the pump nozzle automatically clicks off.
Inspect rubber vacuum hoses every 30,000 miles for signs of hardening, micro-cracking, or loose fitting connections.
Rinse away winter road salts from underbody electrical wiring harnesses to prevent copper wire corrosion.
Proper maintenance habits give car owners complete confidence in long-term car reliability.
Using genuine OEM replacement parts ensures exact electrical resistance matching with your vehicle factory ECM.
Overcoming Common DIY Mistakes During EVAP Diagnostics
A common mistake when diagnosing a p0450 code toyota camry issue is replacing the gas cap unnecessarily.
Loose or damaged fuel caps trigger vacuum leak codes rather than electrical circuit fault codes.
Replacing components blindly without performing basic electrical checks leads to wasted money on unnecessary auto parts.
Another frequent mistake is applying excessive force to brittle plastic locking tabs on vintage harness plugs.
Always spray dirty connectors with penetrating contact cleaner before attempting to depress locking tabs.
Ignoring active dashboard illuminated warning lamps can prevent your car from passing mandatory safety inspections.
Understand dashboard illumination causes by reviewing our guide on the toyota camry check engine light.
Methodical diagnostic testing ensures a successful repair without causing secondary wiring damage.
Frequently Asked Questions
Can I drive my vehicle safely with an active P0450 code?
Yes, driving with a P0450 code will not cause immediate mechanical engine damage or leave you stranded.
However, your vehicle will fail state emissions inspections and may experience slight drops in fuel economy.
Will a loose gas cap cause a P0450 error code?
No, a loose gas cap typically triggers EVAP leak codes such as P0440, P0442, or P0455.
Code P0450 specifically indicates an electrical circuit circuit failure within the vapor pressure sensor assembly.
Where is the EVAP pressure sensor located on a popular toyota camry?
The sensor is located beneath the rear subframe mounted directly on or adjacent to the charcoal canister.
On specific model years, access requires lifting the rear of the vehicle safely on jack stands.
Do I need specialized factory scan tools to test the pressure sensor?
No, a standard digital multimeter and a basic OBD code scanner are sufficient for testing.
Checking reference voltage and signal output takes only minutes using standard diagnostic equipment.
“I’ve driven my Camry for 3 years and didn’t know it could do this.”
— The most common reaction when this article is shared
Did you know your side mirrors can automatically tilt down when you shift into reverse? Or that you can roll down all your windows from 30 feet away before getting in on a hot day?
bryansgarage.com · August 25, 2026
Conclusion
Resolving a P0450 code is straightforward once you test your vapor pressure sensor circuit systematically. Saving money on expensive diagnostic fees brings true peace of mind. Ready to get the most out of your Camry? Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more Camry secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
