A stuck window can quickly ruin your daily commute, but repairing a broken toyota camry power window assembly does not require a costly trip to the service department. At Vroomdan, our technical team has diagnosed thousands of door panel failures across every model generation. Resolving a faulty toyota camry window regulator is simpler than most drivers think, and taking control of your DIY repairs unlocks a whole new level of vehicle confidence while saving you hundreds of dollars in shop labor.
Your Camry can remote start using just your key fob.
And 9 other things Toyota never told you.
Key fob remote start · Auto-tilting reverse mirrors · Roll all windows down remotely · Radar cruise settings · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Bryan Mark · 2026
In This Guide
- Step-by-step removal and installation of the window regulator and motor assembly.
- Electrical diagnostic methods for testing voltage output at the master switch.
- Understanding factory technical service bulletins and historical recall actions.
- Preventative glass maintenance routines to extend the lifespan of internal cables.
- Troubleshooting common reassembly errors and window auto-reverse recalibration.
Step-by-Step DIY Guide to Replacing Your Toyota Camry Window Regulator
Replacing a failed door assembly is a manageable weekend project for any DIY mechanic.
Before beginning your toyota camry power window repair project, gather the required equipment.
You will need a 10mm socket, a Phillips head screwdriver, plastic trim removal tools, painter’s tape, and safety glasses.
Expect this procedure to take between 60 and 90 minutes per door panel.
Step 1: Remove the Interior Door Trim Panel
Start by disconnecting the negative battery terminal to protect the sensitive electrical system.
Carefully insert a plastic trim tool beneath the armrest control panel to release the retaining clips.
Unscrew the hidden fasteners located inside the interior door pull handle recess.
Gently pry around the outer boundary of the trim panel until all plastic clips disengage cleanly.
Disconnect the interior door latch cables and set the trim panel safely aside.
Step 2: Secure the Window Glass and Remove the Vapor Barrier
Manually lift the glass to the fully closed position if the cable mechanism is loose.
Apply heavy-duty painter’s tape over the top frame of the door to support the weight of the glass.
Slowly peel back the plastic vapor barrier film to gain access to the inner door cavity structure.
Step 3: Unbolt the Motor and Cable Track Assembly
Reach inside the lower service opening to disconnect the electrical harness leading to the mechanical assembly.
Support the mechanical frame while loosening the 10mm mounting bolts securing the metal tracks to the inner door shell.
Unscrew the two glass clamp bolts holding the bottom edge of the window pane to the carrier bracket.
Carefully maneuver the old mechanism downward and extract it through the main service access hole.

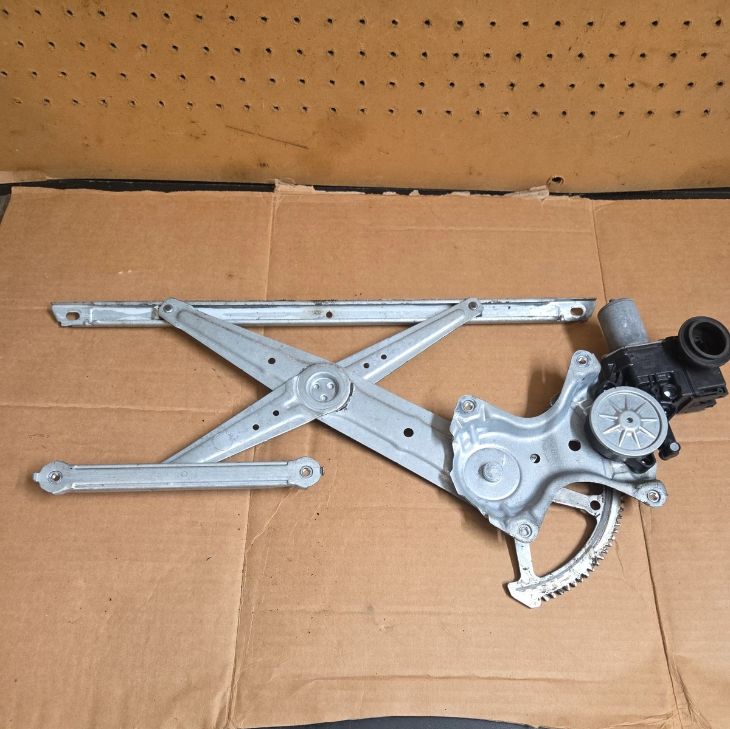

If you are servicing a modern XV70 platform model, check our detailed 2018 toyota camry window regulator replacement layout for exact bolt torque figures.
Step 4: Install the Replacement Assembly and Re-calibrate
Insert the replacement component through the lower access opening and align the mounting studs with the door shell.
Thread the 10mm mounting bolts by hand before tightening them down to 9 foot-pounds of torque.
Lower the window glass carefully into the mounting clamps and tighten the retention hardware securely.
Reconnect the master wiring harness and reattach the negative battery cable.
Turn the ignition key to ON and test the operation of the new toyota camry window motor through multiple cycles.
Press and hold the window switch upward for five additional seconds after closing to reset the automatic pinch protection function.
Reinstall the plastic vapor barrier, reattach the door latch hardware, and snap the interior door panel back into place.

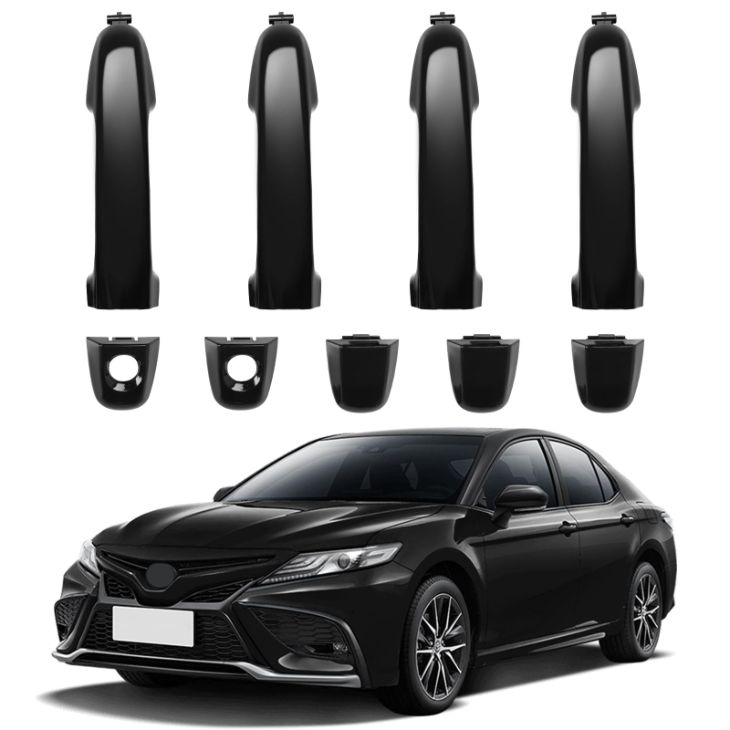

If your interior latch mechanism feels sticky during reassembly, review our guide on servicing the toyota camry door handle to ensure smooth operation.
At Vroomdan, we are dedicated to providing accurate repair guides to help owners maintain their vehicles without expensive dealer bills.
You can discover dozens of step-by-step automotive repair guides directly on Vroomdan anytime.
Diagnosing Electrical Faults: Motor Voltage vs. Switch Failure
Diagnosing electrical failure accurately saves you from buying unnecessary replacement components.
When a window stops responding, the problem stems from either a blown fuse, a bad switch, or a burned-out drive motor.
Start your troubleshooting by checking the primary power window fuse located in the cabin junction block.
If the fuse is intact, test for voltage at the main harness connector using a digital multimeter.
Depress the glass toggle switch while checking the terminal leads for 12 volts of direct current.
A reading of zero volts indicates a failed switch contacts unit or a broken wire inside the door jamb boot.
If full battery voltage is present at the connector but the glass remains stationary, the internal drive motor has suffered a thermal failure.
Over time, mechanical resistance from worn rubber side channels forces the electric motor to draw excessive electrical current.
Owners of older XV40 generation models frequently experience binding tracks due to degraded rubber weather strips.
Check our complete guide on replacing the 2007 toyota camry window regulator to solve chronic track binding issues effectively.
Understanding the Toyota Camry Window Switch Recall and Safety Bulletins
Electrical safety is a major consideration when servicing driver-side door components on midsize sedans.
Toyota issued a safety recall for specific model years due to uneven lubricant application on master power window switch circuit boards.
Comprehending the scope of the historic 2011 toyota camry recall helps owners identify potentially hazardous electrical switch assemblies.
The safety advisory noted that commercially available spray lubricants could cause thermal degradation or melting of the switch housing.
Always inspect your door electrical components for signs of overheating, melted plastic casing, or scorching near terminal contacts.
Owners of older platforms should inspect original master switch assemblies during routine interior maintenance.
Refer to our manual teardown steps for the 2003 toyota camry window regulator to inspect early generation door wiring safely.
Owners dealing with recalled switch models should replace damaged switch housings immediately with updated OEM units.
Practical Application Guide & Maintenance Tips
Preventative maintenance keeps your glass moving smoothly and prevents unexpected mechanical failures during extreme weather.
Lubricating the side rubber glass channels twice per year reduces friction and preserves internal electric motor brushes.
| Camry Generation | Common Failure Symptom | Preventive Maintenance Tip |
|---|---|---|
| XV30 (2002–2006) | Glass slips off lower mounting tracks | Inspect lower metal glass mounting tabs for rust annually |
| XV40 (2007–2011) | Master switch overheating / binding track | Apply specialized dry silicone spray into rubber guide channels |
| XV50 (2012–2017) | Slow lifting speed in freezing temperatures | Clean upper glass runs and lubricate guide channels twice a year |
| XV70 (2018+) | Automatic pinch safety reverse triggering error | Perform auto-up memory recalibration procedure after battery disconnect |
Maintaining proper track lubrication reduces the load placed on the glass lifting motor.
Drivers servicing middle-era vehicles can reference our teardown guide for the 2012 toyota camry window regulator for precise door panel clip locations.
Overcoming Common DIY Mistakes
Many home mechanics make preventable errors during door panel reassembly.
One frequent mistake is failing to secure the glass properly before unfastening the motor assembly bolts.
Unsupported glass can suddenly drop into the door cavity and shatter instantly upon contact with metal braces.
Another error involves tearing the plastic vapor barrier sheet during removal.
A torn vapor seal permits moisture inside the cabin, causing water damage to floor carpets during heavy rain.
Always smooth down damaged butyl sealant tape or replace torn plastic vapor barriers prior to reattaching trim panels.
Never apply standard petroleum grease inside rubber glass guide channels, as petroleum breaks down rubber materials.
Use only pure silicone spray lubricant to keep vertical window tracks slick without attracting dirt and grit.
Frequently Asked Questions
Can I replace the window motor without replacing the entire regulator assembly?
On most model years, the drive motor bolts directly onto the mechanical cable scissor frame using three Torx screws.
However, if the lift cables are frayed or snapped, replacing the complete pre-assembled mechanism is recommended.
Why does my window reverse direction automatically after reaching the top position?
This behavior is caused by the automatic pinch protection safety system detecting mechanical resistance.
Clean out dirt buildup inside the upper window channel and perform the manual switch recalibration reset sequence.
How do I know if the problem is the switch or the lift motor?
If pushing the switch produces a faint clicking sound from inside the door, the switch is delivering power, pointing to a failed motor.
If there is zero sound or dashboard illumination change, test the master switch using a multimeter to confirm voltage output.
“I’ve driven my Camry for 3 years and didn’t know it could do this.”
— The most common reaction when this article is shared
Did you know your side mirrors can automatically tilt down when you shift into reverse? Or that you can roll down all your windows from 30 feet away before getting in on a hot day?
bryansgarage.com · August 25, 2026
Conclusion
Replacing a failing glass lifting mechanism restores comfort and security to your vehicle quickly.
With basic tools, step-by-step guidance, and careful diagnosis, you can complete this fix at home while saving hundreds of dollars in repair shop labor.
Ready to get the most out of your Camry?
Check out more guides on Vroomdan or email us at contact@vroomdan.com — our team is here to help you discover more Camry secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels, and individual modifications.
