Nothing ruins a summer road trip faster than warm air blowing from your vents when your toyota rav4 air conditioning compressor suddenly stops cycling properly. Facing exorbitant dealership repair bills that reach thousands of dollars can leave any SUV owner feeling frustrated and helpless. At Vroomdan, our lead mechanics have engineered this ultimate DIY guide to help you diagnose, troubleshoot, and fix your HVAC system with confidence while unlocking hidden value in your daily driver.
Your RAV4 has a secret menu on the infotainment screen.
And 9 other things Toyota never told you.
Key fob window trick · Smart key deactivation · Hidden cargo floor levels · Kick sensor secrets · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Lead Editor · 2026
In This Guide
- Step-by-step walkthrough to complete an OEM-quality compressor swap.
- Key differences between gas engine units and hybrid high-voltage scroll compressors.
- Diagnostic pressure thresholds and fault code interpretations.
- Proactive maintenance steps to prevent future cabin cooling failures.
Step-by-Step Toyota RAV4 Air Conditioning Compressor Troubleshooting and Replacement
Restoring freezing cold air to your cabin requires systematic diagnostic testing before unbolting physical components.
A failing unit manifests through metallic grinding noises, magnetic clutch slipping, or total loss of systemic refrigerant pressure.
Before beginning your overhaul, gather a 10mm and 12mm socket set, A/C manifold gauges, a vacuum pump, PAG oil, and fresh O-rings.
Most home mechanics can finish a complete toyota rav4 ac compressor replacement in approximately three to four hours.

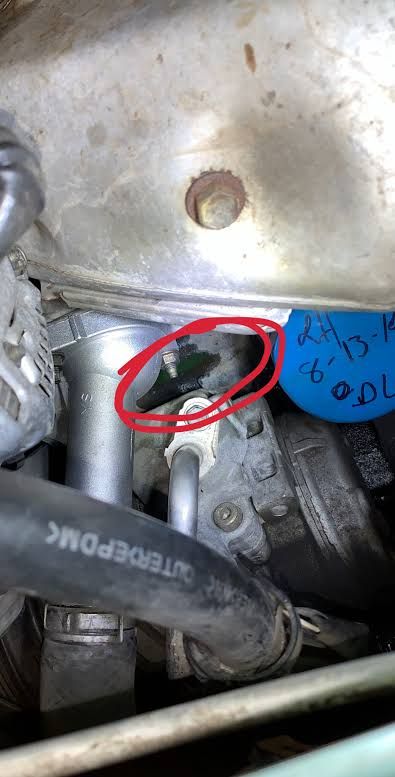

Step 1: Inspect System Pressures and Clutch Engagement
Connect your manifold gauge set to the high-side and low-side service ports located near the aluminum lines.
Start the engine and turn the climate control setting to maximum cold with the blower fan on high speed.
Observe if the magnetic clutch hub spins smoothly or stays stationary while the outer pulley rotates.
If static pressure reads below 30 PSI on both gauges, low refrigerant has triggered the safety cut-out switch.
Inspecting the 2012 toyota rav4 headlight wiring harness area nearby can also help locate auxiliary ground wires connected to the cooling system.
Step 2: Recover Refrigerant and Disconnect Electrical Connectors
Federal law requires recovering R134a or R1234yf refrigerant using certified recovery equipment at a local shop.
Never vent chemical refrigerant directly into the atmosphere under any circumstances.
Disconnect the negative battery terminal to protect sensitive electronics against short circuits during service.
Unplug the single-pin magnetic clutch connector and variable displacement solenoid harness from the pump body.
Step 3: Relieve Drive Belt Tension and Disconnect Refrigerant Lines
Locate the serpentine belt tensioner pulley on the front of the 2.5L engine block.
Rotate the tensioner bolt counter-clockwise with a long-handled breaker bar to slide the belt off the pulley.
Unbolt the high-pressure discharge line and low-pressure suction line using your 10mm socket.
Cap the open aluminum lines immediately using clean shop caps to prevent moisture contamination inside the evaporator.
Step 4: Unbolt the Damaged Assembly and Prep the New Unit
Remove the four mounting bolts securing the pump casing directly to the engine structure.
Carefully lower the heavy assembly out of the lower engine bay splash shield clearance space.
Pour out the oil from the old unit into a graduated cup to measure the exact fluid volume remaining.
Pour fresh ND-8 PAG oil into your replacement unit to match that exact liquid capacity.
Replacing worn components early ensures smooth driving, much like replacing soft 2021 toyota rav4 brake pads restores firm stopping power.
Step 5: Install Replacement Component and Evacuate the System
Torque the main mounting bolts to 18 ft-lbs according to official Toyota workshop manual specifications.
Install brand-new green HNBR rubber O-rings lubricated with clean refrigerant oil onto both hose fittings.
Connect your vacuum pump to the manifold set and run it continuously for at least 45 minutes.
Ensure the vacuum holds stable at 30 inches of mercury for 15 minutes to confirm no leaks exist.
Recharge the system with the precise weight of refrigerant listed on your under-hood emission control label.
At Vroomdan, we empower DIYers to save money by mastering their own routine vehicle maintenance schedules.
You can discover dozens more practical repair guides across our dedicated Vroomdan automotive portal today.
Gas vs. Hybrid: Understanding Toyota’s Differing Compressor Technologies
Gasoline and Hybrid Synergy Drive RAV4 models utilize fundamentally different climate control engineering.
Gasoline models depend on a conventional belt-driven unit turned directly by engine rotation.
Hybrid models use a high-voltage electric sealed scroll unit powered directly by the hybrid traction battery.
Never use standard PAG oil in a hybrid high-voltage electric unit under any circumstances.
Hybrid systems demand specialized non-conductive ND-11 synthetic oil to prevent high-voltage isolation faults.
Using improper oil destroys internal winding insulation, resulting in a dangerous short circuit and system shutdown.
Checking the distinct mechanical layout differences helps when comparing trim choices across the various configurations for 2024 toyota rav4.
Understanding these distinct systems helps when evaluating efficiency specs like the 2025 toyota rav4 hybrid epa combined mpg official numbers.
| Feature Component | Gasoline Engine Models | Hybrid & Prime HEV Models |
|---|---|---|
| Power Source | Engine Serpentine Belt Drive | 244V High-Voltage Traction Battery |
| Required Lubricant | ND-8 Standard PAG Oil | ND-11 Non-Conductive POE Oil |
| Engine Off Operation | No (Engine must run) | Yes (Runs independently at red lights) |
Reading HVAC Fault Codes and Manifold Pressure Diagnostic Gauges
Diagnosing an electrical issue in an ac compressor toyota rav4 requires pulling diagnostic trouble codes using an OBD2 scanner.
Code B1421 indicates a solar sensor circuit malfunction, which often appears when testing vehicles indoors under shade.
Code B1472 points directly to an open circuit in the variable displacement control valve circuit.
High-side gauge pressures reading above 350 PSI signal severe condenser fan failure or overcharged refrigerant levels.
Low-side pressures dropping into negative vacuum territory during operation indicate a clogged expansion valve.
Experiencing sweltering cabin temperatures during traffic stops is a primary indicator of reduced compressor displacement control.
Addressing thermal failures promptly preserves cabin comfort during long highway commutes in warm climates.

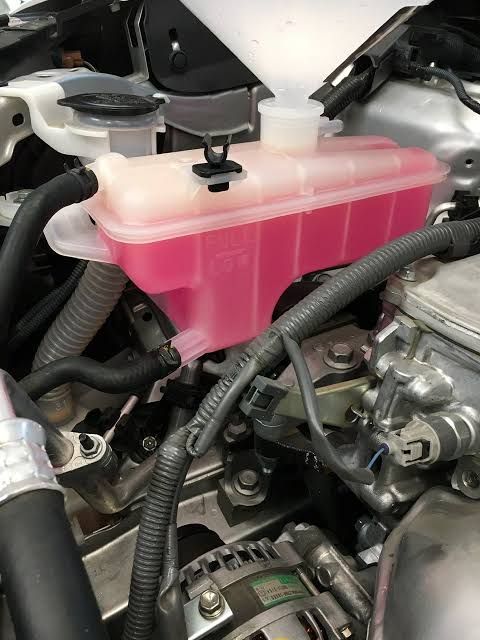

Practical Application Guide and Preventative Maintenance Protocols
Executing preventative maintenance protects your replacement investment against premature mechanical scoring.
Run your air conditioning for ten minutes every month, even during cold winter seasons.
Periodic operation circulates suspended oil through rubber seals, preventing shrink leaks and loss of charge.
Inspect your front condenser core regularly for bent aluminum cooling fins, accumulated dead insects, and road debris.
Clean the condenser face gently using low-pressure garden hose water to maintain optimal heat transfer efficiency.
Proper maintenance ensures comfortable cabin cooling whether you are commuting daily or searching for a toyota rav4 omaha ne dealership.
Many drivers debating between compact crossovers review detailed head-to-head guides like our honda hr v vs toyota rav4 comparison.
Overcoming Common DIY Mistakes During Compressor Overhauls
The most common beginner mistake when installing an ac compressor toyota rav4 is overfilling the system with oil.
Excessive oil coats internal evaporator walls, severely reducing heat exchange capacity and causing warm vent temperatures.
Another frequent error involves reusing old, hardened rubber O-rings at the high-pressure fitting connections.
Old seals leak refrigerant slowly over several weeks, leaving you stranded with miserable cabin heat in summer.
Always utilize a digital scale to measure exact refrigerant weight rather than guessing with pressure cans.
Skipping the 45-minute vacuum pull traps air moisture, forming harmful hydrofluoric acid that eats internal aluminum surfaces.
Frequently Asked Questions
Will replacing the A/C compressor myself void my Toyota factory warranty?
Performing your own repairs does not automatically void your remaining vehicle warranty under federal protection laws.
However, damages caused directly by improper installation procedures or incorrect oil usage will not be covered by Toyota dealers.
Can I perform a complete replacement at home without specialized vacuum tools?
You can mechanically unbolt and replace the hardware unit using hand tools in your home driveway.
However, evacuating atmospheric moisture and recharging exact refrigerant weight requires a dedicated vacuum pump and manifold gauges.
How do I know if my compressor failure was caused by black death contamination?
Disconnect your high-pressure line and inspect the inner metal tube surface for dark gray or black metallic sludge.
If black sludge is present, you must flush all lines and replace the condenser and expansion valve completely.
Which model years share compatible climate control compressors?
Fourth generation models from 2013 to 2018 share similar belt-driven pump casing dimensions across gas trims.
Fifth generation models starting from 2019 utilize updated variable displacement solenoids and distinct high-voltage scroll designs.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Diagnosing and executing a successful climate control compressor replacement restores icy cabin comfort while saving you hundreds in service fees.
