In This Guide
- Exact 64.5mm 14-flute oil filter wrench size requirements for Toyota RAV4 models.
- Step-by-step DIY filter cartridge removal tutorial for 2.5L 4-cylinder engines.
- Torque specifications and proper O-ring positioning to prevent serious engine oil leaks.
- Key differences between plastic cartridge housing caps and traditional spin-on filters across model generations.
The Exact Toyota RAV4 Oil Filter Wrench Size and DIY Removal Guide
Finding the correct toyota rav4 oil filter wrench size saves you from the sheer frustration of a stripped oil filter housing cap.

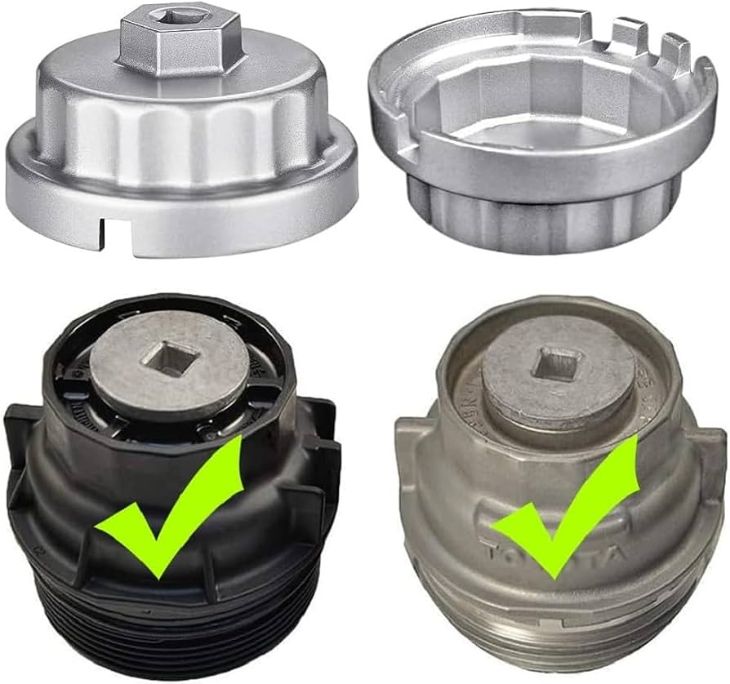

Most modern 4-cylinder Toyota RAV4 models equipped with cartridge-style housings require a 64.5mm oil filter wrench with 14 flutes.
Using a generic adjustable strap wrench will slip and easily ruin the soft plastic engagement tabs on the oil filter housing cap.
Buying a dedicated 64.5mm 14-flute end-cap tool allows you to attach a standard 3/8-inch drive ratchet directly for effortless leverage.
This exact tool size fits the plastic filter housing used across 3rd, 4th, and select 5th Generation RAV4 gas and hybrid models.
Having the proper tool gives you complete confidence in your home garage during routine 5,000-mile maintenance intervals.
Prerequisites and Required DIY Tools
Before starting your oil change tutorial, gather your equipment to complete the entire job safely in under 45 minutes.
You will need a 64.5mm 14-flute end-cap oil filter wrench socket, a 3/8-inch drive ratchet, a 14mm socket for the oil pan drain plug, and a torque wrench.
You should also stock a fresh filter element, a replacement rubber O-ring, a low-profile drain pan, and clean shop towels.
If you own an older model, verify your vehicle manual or check our guide on the 2018 toyota rav4 oil filter part number before purchasing materials.
Step-by-Step Instructions for DIY RAV4 Oil Filter Removal
-
Step 1: Safely Raise the RAV4 and Remove the Access Shield
Park your RAV4 on a hard, level surface and set the electronic parking brake firmly.
Raise the front end using a hydraulic floor jack and rest the frame securely on sturdy jack stands.
Locate the plastic underbody splash shield situated directly beneath the engine compartment.
Use a 10mm socket or plastic trim removal tool to detach the access cover fasteners and reveal the oil pan and filter assembly.
Never crawl underneath a vehicle supported solely by a hydraulic floor jack.
-
Step 2: Drain the Engine Oil Pan and Filter Housing
Position your heavy-duty catch pan directly beneath the engine oil pan drain bolt.
Loosen the 14mm drain plug counterclockwise and allow the warm motor oil to drain fully.
Remove the small metal or plastic center plug on the bottom of the oil filter housing cap if equipped with a internal drain valve.
Insert the plastic drain adapter tool supplied with your new filter cartridge to allow trapped oil inside the canister to drain out cleanly.
This simple step prevents dirty oil from splashing all over your hands, suspension arms, and driveway.
-
Step 3: Attach the Cap Wrench and Unscrew the Filter Housing
Slide your 64.5mm 14-flute oil filter wrench for toyota rav4 onto the base of the plastic housing canister.
Ensure the internal slots on the wrench align flush with the structural side tabs of the filter cap.
Attach your 3/8-inch drive ratchet extensions to the square drive hole on the end-cap tool.
Turn the wrench counterclockwise applying smooth, steady hand force to break the cap loose from the mounting base.
Unscrew the final threads by hand and carefully lower the housing straight down into your drain basin.
-

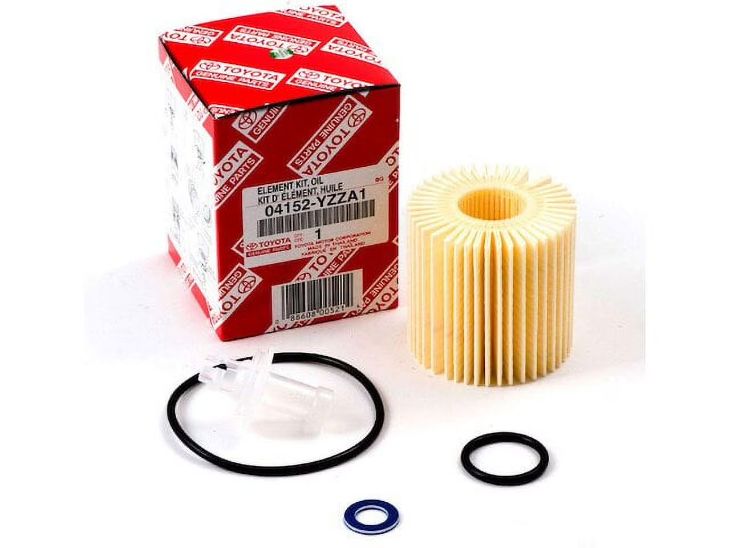

Step 4: Swap the Filter Cartridge and Replace the O-Ring
Pull the old pleated paper filter cartridge out from the plastic housing chamber and discard it responsibility.
Wipe the interior chamber and threaded sections of the cap thoroughly using a clean microfiber cloth.
Pry off the old rubber O-ring from the outer groove near the top threads using a non-marring pick tool.
Install the new rubber O-ring into the exact original channel and lubricate it generously with fresh synthetic motor oil.
Push the fresh paper filter cartridge firmly into the center of the housing cap until it seats completely.
-
Step 5: Reinstall, Torque to Spec, and Refill Oil
Thread the loaded filter cap back onto the engine block adapter by hand to avoid cross-threading fragile plastic threads.
Fit the 64.5mm 14-flute oil filter wrench for toyota rav4 back onto the housing body.
Use your calibrated torque wrench to tighten the cap to exactly 25 NĀ·m (18 lb-ft) as specified in Toyota technical bulletins.
Reinstall the oil pan drain bolt using a fresh crush washer and torque it to 30 lb-ft.
Refill the engine crankcase with the owner manual specified 0W-20 synthetic oil, run the engine for two minutes, and check for leaks.
At Vroomdan, we take real pride in publishing hands-on repair guides that save drivers thousands of dollars over vehicle ownership.
Whether you are performing routine fluid services or tackling a 2019 toyota rav4 battery replacement, our mechanical team delivers straightforward advice you can trust.
Cartridge Housings vs Spin-On Filters Across RAV4 Generations
Understanding how Toyota oil filtration design evolved helps you choose the exact tools required for your specific model year.
Third-generation RAV4 models (2006ā2012) equipped with the 2.5L 4-cylinder engine transitioned from traditional spin-on filters to plastic cartridge caps requiring the 64.5mm 14-flute tool.
Select V6 3.5L models from that generation also used a cartridge housing cap demanding identical socket dimensions.
When performing weekend garage jobs like a 2012 toyota rav4 headlight bulb change, taking time to verify engine specs keeps your maintenance smooth.
Fourth-generation RAV4 models (2013ā2018) continued using the 64.5mm 14-flute cartridge setup exclusively across all trim levels.
Knowing your precise setup avoids expensive mechanical mistakes that ruin your weekend plans.
Fifth-generation RAV4 models (2019ā2026+) feature the updated 2.5L Dynamic Force engine architecture in gas and hybrid configurations.
Interestingly, many 5th Gen non-hybrid gas models returned to a traditional spin-on steel oil filter, whereas Hybrid Synergy Drive powertrains often retain cartridge style housings.
Always inspect underneath your front skid plate to confirm whether your specific engine uses a steel spin-on filter or a drop-in cartridge cap.
Maintaining related powertrain components like a 2015 toyota rav4 transmission requires similar attention to OEM specifications and fluid specs.
Anatomy and Specs of the 2.5L Dynamic Force Filter Housing
The modern 2.5L Dynamic Force engine features a cast-aluminum oil filter mounting base bolted directly to the crankcase block.
Using a heavy-duty cast-aluminum oil filter wrench for toyota rav4 prevents rounded edges on the housing tabs during break-away torque removal.
Cheap stamped-steel cup sockets tend to flare under tension, slipping off the flutes and damaging plastic cap ridges.
Toyota technical manuals strictly recommend forged aluminum cup sockets featuring deep notched cutouts for maximum tab contact.
Comparing crossover engine specs across models like the toyota crown signia vs toyota rav4 specs highlights similar high-efficiency oil filter designs across Toyota’s lineup.
| RAV4 Generation & Engine | Filter System Type | Required Tool & Specs |
|---|---|---|
| 3rd Gen (2006ā2012) 2.5L / 3.5L | Cartridge Housing Element | 64.5mm, 14 Flutes with Engagement Slots |
| 4th Gen (2013ā2018) 2.5L 4-Cyl | Cartridge Housing Element | 64.5mm, 14 Flutes with Engagement Slots |
| 5th Gen (2019+) 2.5L Hybrid / Gas | Spin-On Canister / Cartridge Cap | 64.5mm 14-Flute Cap or Standard Filter Wrench |
Best Practices for Preventing Oil Leaks and DIY Housing Damage
Servicing your RAV4 safely at home requires careful attention to small mechanical details that prevent major oil pressure failures.
Always lubricate your fresh rubber O-ring with clean synthetic engine oil prior to threading the cap into place.
A dry O-ring can easily bind, stretch, or tear during installation, creating a terrifying drop in oil pressure while driving on the highway.
Never use high-torque pneumatic impact guns or cordless ratchets to tighten plastic engine filter housing caps.
Thread the cap down completely by hand until it makes firm contact with the aluminum base flange, then finish using a torque wrench.
Maintaining your SUV cabin through minor fixes like a toyota rav4 sun visor replacement builds overall confidence in handling personal auto care.
Overcoming Common DIY Oil Filter Housing Errors
The single most frequent mistake DIYers make on Toyota vehicles is seating the new O-ring in the wrong cap channel.
The rubber O-ring must sit inside the recessed lower groove machined into the cap body, not against the upper lip thread flange.
Placing the O-ring against the top flange will shatter fragile plastic housing tabs and cause catastrophic oil spraying the moment the engine starts.
Another common error is using universal chain or strap tools that crush plastic filter caps out of round.
Always buy a precision-fit oil filter wrench for toyota rav4 to shield your engine components from unnecessary damage.
Frequently Asked Questions
Can I remove a Toyota RAV4 oil filter housing without a special tool?
While adjustable strap tools can remove metal spin-on filters, plastic cartridge caps require a 64.5mm 14-flute end-cap wrench to avoid snapping engagement tabs.
What is the official torque specification for a Toyota RAV4 oil filter cap?
Toyota technical service bulletins mandate tightening plastic cartridge filter caps to exactly 25 NĀ·m (18 lb-ft) and oil pan drain plugs to 30 lb-ft.
Will changing my engine oil at home void my factory Toyota warranty?
No, performing DIY maintenance using OEM-quality oil and filters while keeping dated receipts preserves your factory powertrain warranty rights intact.
Why do some 5th Gen RAV4 models use spin-on filters while others use cartridge elements?
Toyota shifted non-hybrid 2.5L Dynamic Force gas engines back to spin-on steel filters starting in 2019, while retaining cartridge housings on several hybrid setups.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
ā The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Identifying the proper toyota rav4 oil filter wrench size empowers you to take full control of routine maintenance while saving money on costly dealership labor fees.
Using a 64.5mm 14-flute end-cap socket tool guarantees smooth, leak-free oil changes every single time.
