How to Change Your 2012 Toyota RAV4 Headlight Bulb and Assembly
Replacing a dim or dead headlight bulb on your third-generation RAV4 is an essential maintenance task every owner can perform at home.
Before starting, gather nitrile gloves, a flathead screwdriver, a 10mm socket wrench, and clean microfiber towels.
Allow roughly fifteen to twenty minutes per side to complete this replacement without rushing.
Working on electrical components requires zero technical background when following basic shop protocols.
Always verify that your replacement 2023 toyota rav4 hybrid oil filter or lighting parts meet OEM specifications prior to teardown.
Follow these structured steps to safely swap out your front bulb or complete housing.
-
Prepare the Engine Bay and Disconnect Battery Power
Park your RAV4 on a level concrete surface and engage the emergency parking brake securely.
Turn off the ignition completely and remove the key fob from proximity range.
Pop open the hood and pop the hood prop rod into place firmly.
For safety, disconnect the negative battery terminal using your 10mm wrench to prevent short circuits.
This quick step gives you complete peace of mind while working around high-voltage headlight harnesses.
-
Access the Rear Headlight Housing and Wiring Harness
Locate the back of the front light assembly behind the radiator support cover.
On the passenger side, you have direct clearance to reach behind the light housing.
On the driver side, unclipping the air intake duct or washer fluid neck provides superior hand room.
Press down firm on the release tab of the plastic wiring connector.
Pull the electrical harness straight back without yanking on the delicate internal copper wires.
-
Remove the Old Bulb or Unbolt Full Assembly
Grasp the base of the burned-out 2025 honda cr v hybrid vs 2025 toyota rav4 lighting unit firmly.
Rotate the bulb counter-clockwise approximately a quarter turn until it releases from the locking tabs.
Carefully draw the bulb straight out from the projector socket to avoid cracking the surrounding glass.
If swapping full 2012 toyota rav4 headlights, undo the three 10mm mounting bolts holding the plastic housing to the core support.
Unclip the upper bumper tabs using a plastic trim tool to slide the complete lens unit forward.
-
Install the New Bulb with Proper Alignment
Put on clean nitrile gloves before touching your new halogen or LED capsule.
Avoid touching quartz glass directly because oils from skin cause premature bulb failure under thermal stress.
Align the three locking keys on the new toyota rav4 2012 headlight bulb base into the housing slots.
Push gently and twist clockwise until you feel a firm locking click.
Reattach the factory wiring harness until the locking tab snaps into its original retaining slot.
-
Verify Beam Function and Reinstall Trim Shields
Reconnect your negative battery cable securely with your 10mm socket.
Turn on the dashboard headlight switch to inspect both low beam and high beam output.
Check that the light cut-off pattern sits level against a dark garage door or wall surface.
Snap any removed plastic engine bay covers or radiator trim clips back into place.
You have now successfully restored front illumination without spending a single dollar on dealership labor fees.
At Vroomdan, our team regularly creates practical maintenance blueprints designed to save DIYers time and money.
You can browse dozens of step-by-step guides, fluids replacement charts, and troubleshooting tricks directly on Vroomdan.

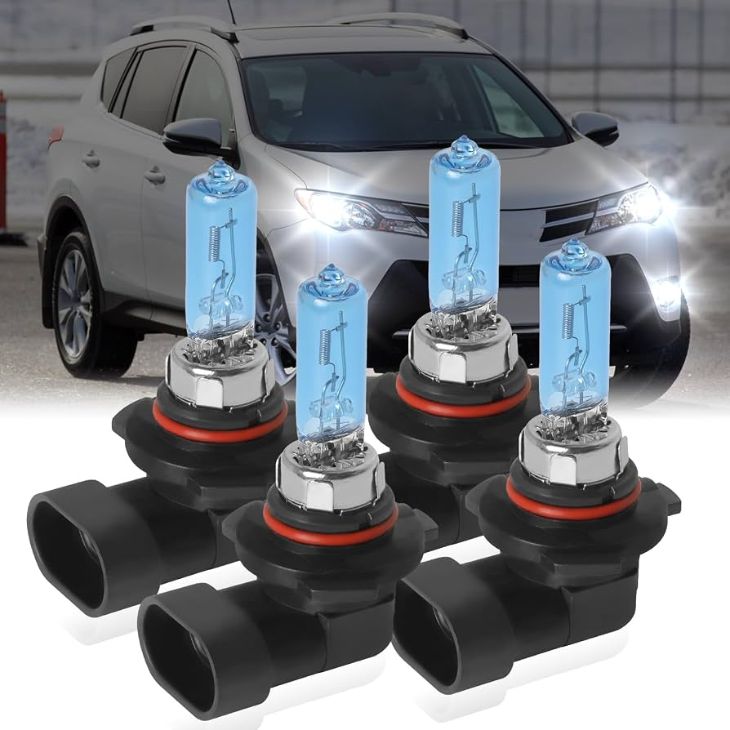

Selecting the Ideal 2012 Toyota RAV4 Headlight Bulb Sizes and Upgrades
Choosing the correct bulb size ensures optimal beam focus and prevents heat damage inside your light socket.
The 2012 third-generation RAV4 uses an H11 single-filament halogen bulb for low beam projector sockets.
High beams require a 9005 (HB3) halogen bulb, while front fog lights utilize standard H11 assemblies.
Understanding these factory specifications saves you the hassle of returning incorrect parts mid-project.
Comparing performance metrics between stock halogen bulbs and aftermarket upgrades helps determine what fits your budget.
| Bulb Function | OEM Socket Size | Standard Halogen Wattage | Recommended Upgrade Type |
|---|---|---|---|
| Low Beam Projector | H11 | 55 Watts | High-Output Halogen or Canbus LED |
| High Beam Reflector | 9005 (HB3) | 65 Watts | Ultra-White Halogen / LED Chipset |
| Front Fog Light | H11 | 55 Watts | Selective Yellow LED Kit |
Switching from factory halogens to modern LED conversions dramatically increases down-road illumination on dark highways.
When selecting LED kits, always ensure the chips align perfectly with the focal point of the factory projector lens.
Poorly focused LEDs create dangerous blinding glare for oncoming traffic while throwing scattered light into surrounding trees.
Verify that your LED kits feature internal cooling fans and built-in driver modules to prevent dashboard warning codes.
For drivers living in icy regions, standard halogen bulbs offer superior snow melting capability due to higher infrared heat emission.
Checking electrical output across components is as vital as checking your toyota rav4 2016 hybrid gas mileage performance during long road trips.
Beam Alignment and Restoring Cloudy 2012 Toyota RAV4 Headlights
Proper beam alignment is just as crucial for night safety as installed bulb brightness.
Over time, road vibration and suspension settling misalign front housing angles on your 2012 toyota rav4 headlight assembly.
To align your lights, park your RAV4 twenty-five feet away from a flat garage wall on level pavement.
Measure the distance from the center of the lens to the ground using a measuring tape.
Mark a horizontal line on the wall corresponding to that exact center height with painter masking tape.
Locate the 8mm metal adjustment bolt behind each housing unit inside your engine bay.
Turn the bolt clockwise with a screwdriver to raise the beam height or counter-clockwise to lower it.
Adjust the cut-off line so the top edge sits roughly two inches below the tape line on your wall.
This setting offers optimal down-road visibility without blinding drivers in lower sedan vehicles.
If oxidation has made your polycarbonate plastic lenses yellow or cloudy, light transmission drops significantly.
Use a multi-stage wet sanding kit starting at 1000-grit down to 3000-grit sandpaper to remove haze.
Finish by polishing with a compound paste and sealing the polycarbonate with a high-grade UV protective clear coat.
Restoring clear housing clarity ensures your newly installed toyota rav4 2012 headlight bulb shines with maximum output.
Keeping vehicle components maintained prevents rapid toyota rav4 depreciation over years of daily family hauling.
Preventative Maintenance Tips for Front SUV Lighting Systems
Taking care of your crossover electrical wiring prolongs bulb lifespan and prevents unexpected nighttime failures.
Inspect rubber rear dust boots during every seasonal oil change to ensure moisture stays out of light housings.
Trapped moisture causes mirror reflection degradation and triggers severe corrosion across electrical pins.
Apply a thin layer of clear dielectric grease to harness connector pins before plugging in new bulbs.
Dielectric grease repels water intrusion while reducing heat build-up across heavy power draw connections.
If both 2012 toyota rav4 headlights go out simultaneously, check the 10-amp fuses inside the main engine fuse block.
Swap out aging fuses before replacing expensive bulbs to rule out simple electrical overload issues.
Monitor alternator charge voltages regularly using an inexpensive OBD2 scanner or digital multimeter.
Voltage spikes from failing alternators burn out delicate halogen filaments prematurely within weeks of replacement.
Maintaining electrical health is as critical as keeping up with your toyota rav4 air conditioner recharge schedules prior to summer trips.
Carrying a spare H11 bulb in your rear cargo hold ensures you are never stranded during sudden late-night burnouts.
Small preventative steps guarantee continuous road safety for all your family trips.
Avoiding Common DIY Mistakes During Headlight Servicing
Avoid touching halogen bulb glass with unprotected fingers under any circumstance during installation.
Skin oils create hot spots on quartz glass that trigger premature capsule explosion under operational temperatures.
If you touch glass accidentally, clean the bulb thoroughly with rubbing alcohol and a microfiber cloth before installation.
Never force plastic housing mounting tabs or turn adjustment screws past their natural mechanical stops.
Over-torquing strips internal plastic gears, requiring complete housing replacement to fix misaligned light patterns.
Ensure wire routing avoids hot engine exhaust components or sharp metal chassis edges.
Chafed wire insulation causes sudden blown fuses or dangerous electrical shorts while driving at night.
Check headlight functional output immediately after completing repairs to ensure all seals seat tightly.
Careful attention during assembly protects your vehicle value better than risky trailer setups exceeding your toyota rav4 towing capacity 2017 thresholds.
Taking your time ensures clean, professional results right in your own home driveway.
Frequently Asked Questions
Which bulb size fits the 2012 Toyota RAV4 low beam?
The low beam light on all standard 2012 Toyota RAV4 models uses a single-filament H11 bulb size socket.
Can I install LED bulbs into my factory 2012 RAV4 headlight housings?
Yes, you can install H11 LED conversion kits into the factory low beam projector housings without major modifications.
Make sure to purchase LED kits with built-in clocking adjustments so light chips align horizontally inside projector reflectors.
Do I need to remove the front bumper to replace full headlight housing assemblies?
You do not need to remove the entire front bumper cover on third-generation RAV4 models.
Unclipping the upper grille tabs and loosening top bumper bolts gives enough flex to slide full housing assemblies forward easily.
Why does my new headlight bulb flicker after installation?
Flickering usually stems from loose wiring connections, corrosion on plug pins, or using non-Canbus compliant LED kits.
Apply dielectric grease to harness terminals and ensure locking clips snap together firmly to solve flickering issues.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Maintaining bright front illumination protects your family while driving at night and keeps repair costs minimal.
Replacing burned-out front lights at home builds confidence for tackling larger mechanical projects down the line.
Ready to get the most out of your RAV4? Check out more guides on Vroomdan or email us at contact@bryansgarage.com — our team is here to help you discover more SUV secrets and maintenance guides.
Disclaimer: Always consult your official Toyota Owner’s Manual before performing any DIY modifications. Information provided is for educational purposes and depends on specific vehicle model years, trim levels (LE, XLE, Adventure, TRD, Hybrid, Prime), and individual modifications.
