2007 Toyota RAV4 Transmission Fluid Type and Capacity Guide: Complete DIY How-To
Replacing your transmission fluid is the single most effective way to protect your vehicle from multi-thousand-dollar gear repairs.

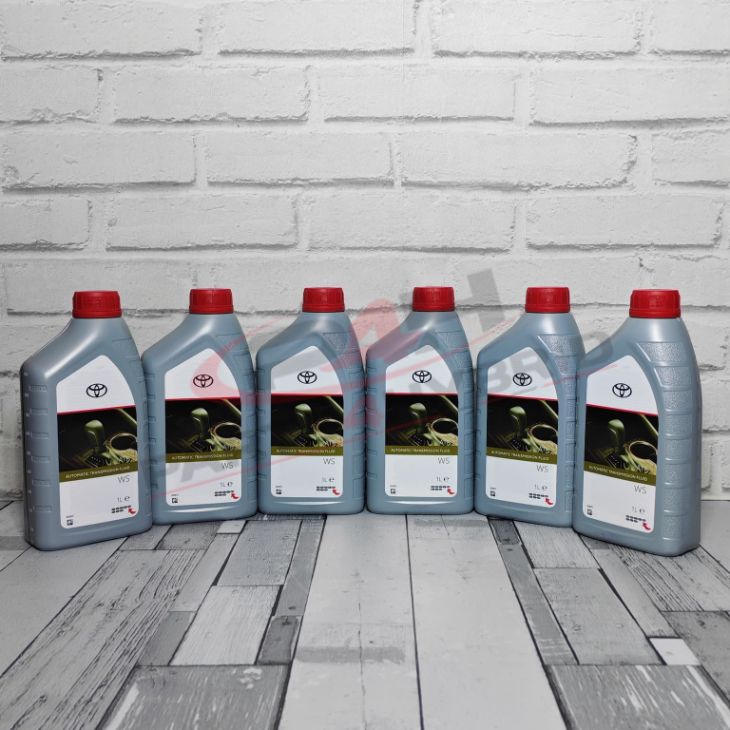

The standard 2007 toyota rav4 transmission fluid type required by the factory is OEM Toyota Genuine ATF WS (World Standard).
Never substitute Toyota World Standard fluid with universal Dexron III fluids during a standard service.
Doing so can cause internal clutch slippage and harsh gear engagement across all engine speeds.
Before starting this procedure, gather these necessary tools and parts:
- 4 quarts of OEM Toyota Genuine ATF WS Fluid
- 10mm Hex Allen key or socket attachment
- 24mm socket and breaker bar for the fill plug
- New crush washer gaskets for drain and fill plugs
- Fluid transfer hand pump or long gear fluid funnel
- Low-profile oil drain pan and digital measuring bucket
Expect this routine maintenance task to take approximately 45 to 60 minutes in your driveway.
-
Step 1: Safely Elevate the Vehicle and Access the Oil Pan
Park your vehicle on a flat surface and engage the parking brake firmly.
Jack up the front axle safely and support it securely using two heavy-duty jack stands.
Remove the lower plastic splash shield under the engine bay using a socket wrench.
-
Step 2: Crack Open the Fill Plug First
Always loosen the fill plug located on the driver side transmission housing before draining fluid.
This critical step guarantees you can refill the system if the drain plug strips or sticks.
Remove the 24mm fill plug along with its old aluminum sealing washer.
-
Step 3: Drain the Used Automatic Transmission Fluid
Position your catch bucket directly beneath the transmission oil pan drain bolt.
Unscrew the 10mm hex drain plug carefully to avoid hot fluid contacting your skin.
Allow the fluid to drain completely until it slows down to a steady, thin drip.
-
Step 4: Measure Extracted Fluid and Refill Precisely
Pour the drained fluid into a marked measuring container to calculate exact fluid loss.
A standard drain procedure on a 2007 model yields approximately 3.7 quarts (3.5 liters) of fluid.
Reinstall the drain bolt with a new crush washer and torque it to 30 ft-lbs.
Pump the exact amount of fresh Toyota ATF WS fluid back into the fill hole.
-
Step 5: Verify Shift Engagement and Temperature Ranges
Reinstall the fill plug loosely and start the vehicle engine with the transmission in Park.
Shift through every gear position slowly from Park to Reverse, Neutral, Drive, and back.
This action primes the valve body solenoids with fresh fluid before final level check.
At Vroomdan, we regularly test DIY procedures on real working vehicles to eliminate mechanic guesswork.
You can discover dozens of additional maintenance guides and repair tutorials directly on Vroomdan.
Transmission Fluid Specifications Across RAV4 Generations
Understanding factory gearbox evolution helps owners avoid ordering incompatible auto fluids online.
The 3rd generation SUV line used two distinct automatic gearboxes depending on engine size.
For the 2.4L 4-cylinder engine, the 2007 toyota rav4 transmission fluid type matches the 2008 toyota rav4 transmission fluid type, specifying 3.7 quarts of ATF WS for a simple pan drain.
The 3.5L V6 engine utilizes a 5-speed automatic box that requires identical fluid specifications.
When searching for the 2009 toyota rav4 windshield wipers size or gearbox supplies, double-check model options.
Moving up to later production years, the 2018 toyota rav4 transmission fluid type remains Toyota ATF WS for gas-powered 6-speed models.
However, Hybrid trims utilize an electronic continuously variable transmission (eCVT) with a separate service routine.
Check the breakdown below to confirm your specific vehicle requirements prior to purchasing maintenance fluids.
| Model Years | Transmission Fluid Type | Drain & Fill Capacity |
|---|---|---|
| 2006–2008 (2.4L 4-Cyl) | Toyota Genuine ATF WS | 3.7 Quarts (3.5 L) |
| 2006–2012 (3.5L V6) | Toyota Genuine ATF WS | 3.7 Quarts (3.5 L) |
| 2009–2012 (2.5L 4-Cyl) | Toyota Genuine ATF WS | 3.7 Quarts (3.5 L) |
| 2013–2018 (2.5L Gas) | Toyota Genuine ATF WS | 3.7 Quarts (3.5 L) |
| 2016–2018 (2.5L Hybrid) | Toyota Genuine ATF WS / eCVT | 4.4 Quarts (4.2 L) |
If you enjoy comparing model generation changes, check out our comprehensive 2013 toyota rav4 reviews for long-term ownership feedback.
Fluid Level Verification Protocols and Temperature Controls
Modern Toyota transmissions do not feature a traditional dipstick under the hood for checking fluid level.
Instead, certified mechanics rely on an internal standpipe overflow tube inside the fluid pan.
Fluid expands significantly as internal gear temperature rises during normal driving conditions.
You must check fluid overflow levels when the gearbox fluid temperature registers between 113°F and 131°F (45°C to 55°C).
If you check the fluid cold, you risk overfilling the case and causing seal leaks.
Draining fluid while boiling hot leads to dangerous underfilling after cooling down.
Owners who monitor their toyota rav4 2016 hybrid gas mileage often report smoother shift quality after fresh fluid service.
Maintaining clean transmission lubricant reduces mechanical drag and improves highway power distribution.
Fresh fluid also prevents internal clutch burn-off, preserving resale values against fast toyota rav4 depreciation.
Practical Maintenance Schedules and Real-World Driving Advice
Official dealer manuals describe World Standard transmission fluid as a lifetime fill under ideal highway conditions.
However, master mechanics strongly dispute lifetime fluid claims for real-world driving environments.
Stop-and-go commuter traffic, extreme winter temperatures, and trailer towing degrade fluid additive packages rapidly.
We recommend performing a simple drain and refill every 45,000 to 60,000 miles for maximum reliability.
Never perform a high-pressure machine flush on high-mileage transmissions that have missed previous service windows.
High fluid pressure can dislodge accumulated varnish and jam delicate internal hydraulic valve solenoids.
Stick to gentle drain-and-fill services to keep your gear system shifting cleanly without structural shock.
If you drive newer hybrid editions, inspect your 2024 toyota rav4 hybrid fuel tank capacity alongside routine fluid maintenance schedules.
Choosing proper fluids matches the importance of selecting the right 2025 toyota rav4 gas type for long-term engine health.
Overcoming Common DIY Transmission Service Mistakes
Many home mechanics make small errors during fluid replacement that trigger expensive transmission repairs.
The most common error involves pouring generic multi-vehicle fluid into a system designed for Toyota WS.
Incorrect viscosity causes sluggish hydraulic gear changes and premature clutch plate wear.
Another frequent mistake is over-tightening the delicate aluminum fluid pan drain bolt.
Always use a calibrated inch-pound torque wrench when securing oil pan plugs and fluid leveling screws.
Striped oil pan threads require pan removal or costly thread repair inserts to fix leaks.
Finally, never guess fluid volume; measure every drop of extracted fluid before refilling the gearbox case.
Frequently Asked Questions
Will changing my own transmission fluid void my Toyota factory warranty?
No, performing DIY fluid changes will not void your warranty as long as you use correct OEM-spec fluids.
Can I use aftermarket fluids like MaxLife ATF in my 2007 RAV4?
While some aftermarket brands claim WS compatibility, genuine Toyota Genuine ATF WS fluid offers guaranteed protection for internal clutch bands.
How do I check transmission fluid without an engine dipstick?
You check fluid levels by removing the lower overflow plug while the fluid temperature is strictly between 113°F and 131°F.
What is the 2018 toyota rav4 transmission fluid type for non-hybrid models?
The 2018 non-hybrid RAV4 uses Toyota Genuine ATF WS fluid for its 6-speed automatic transmission.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Maintaining correct transmission fluid protects your crossover against premature shifting failures and costly mechanical breakdowns.
By relying on OEM Toyota Genuine ATF WS fluid and exact measuring routines, you keep your drive train operating smoothly for years.
