Maintaining correct gear fluid levels is essential for keeping your crossover running smoothly. Finding the exact 2015 toyota rav4 transmission fluid capacity can save you hundreds of dollars in unnecessary dealership service fees. At Vroomdan, our team of mechanics breaks down fluid service specs and fuel tank limits so you can service your SUV like a seasoned pro. Beyond simple routine maintenance, your vehicle also packs hidden features that many owners don’t know about.
Your RAV4 has a secret menu on the infotainment screen.
And 9 other things Toyota never told you.
Key fob window trick · Smart key deactivation · Hidden cargo floor levels · Kick sensor secrets · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Lead Editor · 2026
In This Guide
- Total capacity versus practical drain-and-fill transmission fluid specifications.
- Step-by-step DIY instructions for servicing sealed Toyota automatic transmissions.
- Complete fuel tank volume data, low-fuel reserves, and driving range calculations.
- Critical DIY mistakes to avoid during gearbox maintenance and fluid level checks.
2015 Toyota RAV4 Transmission Fluid Capacity and Drain & Fill Specs
The total dry fill 2015 toyota rav4 transmission fluid capacity is exactly 6.9 quarts (6.5 liters) for the U760E 6-speed automatic gearbox.
Performing a standard fluid drain and refill requires between 2.6 and 3.0 quarts (2.5 to 2.8 liters) of fresh fluid.
A full system overhaul or torque converter replacement demands the complete 6.9-quart volume of OEM World Standard fluid.

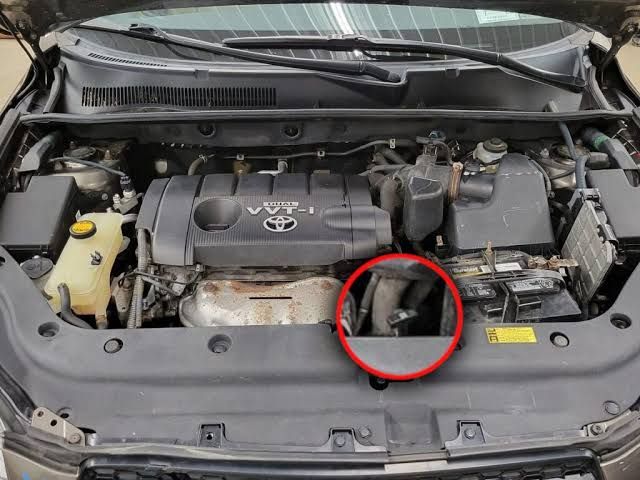

Toyota considers this transmission a sealed unit without a traditional dipstick under the hood.
You must verify fluid levels using an overflow check plug situated underneath the vehicle pan.
You can check specs for earlier models by reviewing the 2007 toyota rav4 transmission fluid type guide for comparison.
Prerequisites and Tools Needed
Gathering the correct tools beforehand will prevent unnecessary stress during fluid replacement.
You need a 10mm hex socket, a 24mm fill plug socket, a fluid transfer pump, and a torque wrench.
Purchase three quarts of Toyota Genuine ATF WS fluid alongside fresh aluminum crush washers for all plugs.
Set aside approximately 90 minutes to safely elevate the vehicle and perform the complete fluid leveling procedure.
Step 1: Safely Level the Vehicle and Monitor Fluid Temperature
Raise your SUV evenly on four jack stands to ensure the transmission pan rests completely level.
The transmission fluid level must be checked within a strict temperature range of 95°F to 113°F (35°C to 45°C).
Use an OBD2 scanner or an infrared thermometer on the pan to monitor exact fluid temperature before opening plugs.
Never perform a level check on a scalding hot transmission because expanding fluid leads to low fluid levels later.
Step 2: Remove Fill Plug and Drain Old Transmission Fluid
Always loosen the 24mm fill plug located behind the driver side front wheel well before draining fluid.
Unscrew the 10mm hex drain plug on the transmission oil pan to let excess fluid flow into a catch pan.
Remove the plastic overflow tube inside the drain hole using a 6mm Allen key to complete the main drain.
Inspect the drained fluid for dark discoloration or burnt metallic odors that indicate internal mechanical wear.
Step 3: Reinstall Tube and Refill Gearbox Fluid
Reinstall the internal plastic overflow tube and torque it gently to 7 in-lbs (0.8 Nm) without overtightening.
Reinstall the main drain plug loosely with a fresh aluminum crush washer.
Pump roughly 3.0 quarts of fresh Toyota ATF WS fluid through the side fill port using a fluid pump.
Tighten the fill plug temporarily and start the engine to cycle through all shift gears slowly.
Step 4: Verify Overflow Level and Complete Assembly
With the engine idling and fluid temperature sitting between 95°F and 113°F, remove the bottom drain plug.
Allow excess fluid to drain out until the heavy stream turns into a light trickle.
Reinstall the drain plug immediately and torque it firmly to 29 ft-lbs (39 Nm).
Torque the main side fill plug to 29 ft-lbs (39 Nm) to finalize the maintenance procedure.
Our team at Vroomdan tests every DIY procedure on real vehicles to give you maximum mechanical confidence.
2015 Toyota RAV4 Gas Tank Capacity and Fuel Range Specifications
Understanding fuel limits helps drivers plan long highway road trips with total confidence.
When asking how many gallons does a toyota rav4 hold, the official factory rating for the 2015 model year is 15.9 gallons (60 liters).
Front-wheel drive and all-wheel drive configurations share the exact same fuel tank size across all trim levels.
When your low fuel warning light turns on, approximately 2.0 to 2.3 gallons remain inside the reservoir.
This fuel reserve provides a safety driving cushion of roughly 45 to 60 miles under average driving conditions.
Modern models achieve higher fuel efficiency, with the 2024 toyota rav4 mpg combined reaching 30 MPG for gas engines and 39 MPG for hybrids.
You can compare crossover dimensions by reading our analysis on toyota rav4 vs ford escape size specs.
Clear visibility during rainy highway drives requires matching the right 2020 toyota rav4 wiper blades size to your windshield frame.
| Model Year & Trim | Gas Tank Capacity | Fuel Reserve Limit | Estimated Cruising Range |
|---|---|---|---|
| 2015 RAV4 2.5L FWD | 15.9 Gallons (60 L) | 2.2 Gallons | 380 – 410 Miles |
| 2015 RAV4 2.5L AWD | 15.9 Gallons (60 L) | 2.2 Gallons | 350 – 380 Miles |
| 2024 RAV4 Hybrid AWD | 14.5 Gallons (55 L) | 2.0 Gallons | 520 – 560 Miles |

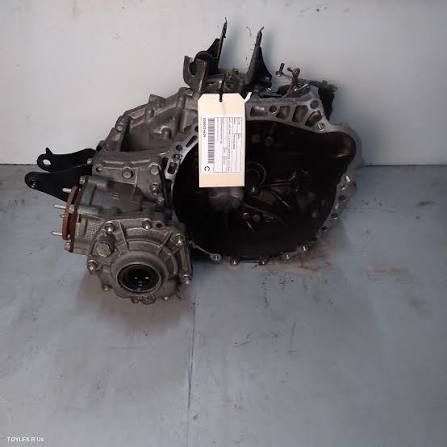

Mechanical Deep-Dive into the U760E Transmission System
Toyota engineered the U760E 6-speed automatic transmission specifically for four-cylinder transverse engine setups.
This automatic gearbox uses specialized low-viscosity Toyota WS fluid to minimize internal fluid drag and maximize fuel economy.
According to official Toyota service manual documentation, non-WS fluids can degrade internal clutches over time.
ASE certified mechanics emphasize that thermal breakdown remains the primary cause of transmission shifting glitches.
Active discussions on RAV4World forums show that changing fluid every 60,000 miles prevents expensive valve body repairs.
Comparing cabin space across compact crossovers reveals key advantages detailed in our honda hr v vs toyota rav4 review.
Long-term reliability plays a huge role in preserving high resale values as explored in toyota rav4 depreciation trends.
Practical Application Guide and Preventative Maintenance Schedule
Establishing regular maintenance intervals protects your engine and gearbox from severe long-term wear.
Inspect your transmission fluid level every 30,000 miles or immediately if you spot fluid stains under the engine bay.
Perform a complete drain and refill every 60,000 miles under normal driving or 30,000 miles under severe towing conditions.
Never drive continuously with the low fuel light illuminated because fuel cools the internal electric fuel pump motor.
Running the gas tank dry can draw settled debris into the fuel injectors and damage delicate fuel pressure regulators.
Tracking fuel economy specs helps drivers plan fuel budgets, especially when checking modern 2025 toyota rav4 mpg estimates.
Overcoming Common DIY Transmission Service Mistakes
Refilling fluid without leveling the vehicle on jack stands creates inaccurate fluid checks and causes severe shifting slippage.
Using improper universal multi-vehicle fluids can erode internal rubber seals and void your powertrain warranty coverage.
Overtightening the delicate plastic overflow standpipe inside the oil pan breaks threads and ruins the entire pan housing.
Skipping temperature checks leads to overfilling because fluid expands significantly when heated beyond target specs.
Always clear surrounding dirt from the fill plug before opening it to prevent abrasive sand from entering gearbox gears.
Frequently Asked Questions
Does the 2015 Toyota RAV4 have a transmission fluid dipstick?
No, the 2015 RAV4 features a sealed transmission design without a traditional top-mount dipstick under the hood.
You must check fluid level underneath the vehicle using the internal overflow tube located in the transmission pan.
How many gallons does a 2015 Toyota RAV4 hold when the fuel light turns on?
The low fuel warning light illuminates when approximately 2.0 to 2.3 gallons of gas remain in the 15.9-gallon tank.
This reserve capacity gives drivers roughly 45 to 60 miles to reach the nearest gas station safely.
What fluid type is required for a 2015 Toyota RAV4 automatic transmission?
Toyota mandates using strictly OEM Toyota Genuine ATF WS (World Standard) fluid for the U760E 6-speed automatic transmission.
Using aftermarket Dexron or non-approved synthetic fluids can lead to harsh gear shifting and internal clutch slippage.
What are the torque specs for the transmission drain and fill plugs?
The main transmission drain plug torques to 29 ft-lbs (39 Nm), while the side fill plug also torques to 29 ft-lbs (39 Nm).
The internal plastic overflow standpipe requires a delicate torque setting of just 7 in-lbs (0.8 Nm).
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Maintaining proper fluid capacity and knowing your fuel limits keeps your 2015 RAV4 reliable for years.
Performing routine fluid changes prevents expensive dealership repairs and smooths out daily gear shifts.
