Understanding your 2018 toyota rav4 transmission fluid capacity is essential to prevent costly gearbox failures and maintain smooth shifting performance. At Vroomdan, our team of experienced technicians provides exact fluid specifications, torque values, and step-by-step guidance for both gas and hybrid models. Performing regular maintenance yourself saves hundreds in service fees while extending vehicle lifespan. Beyond fluid service, your crossover holds clever hidden features that elevate daily ownership.
Your RAV4 has a secret menu on the infotainment screen.
And 9 other things Toyota never told you.
Key fob window trick · Smart key deactivation · Hidden cargo floor levels · Kick sensor secrets · and 6 more.
▶ Read Now — Show Me Everything
bryansgarage.com · Lead Editor · 2026
In This Guide
- Exact fluid capacities for 2.5L Gas (U760E/F) and 2.5L Hybrid (P314 eCVT) trims
- Step-by-step DIY fluid drain and fill instructions with safety protocols
- Mechanical comparisons between RAV4 transmissions and midsize rivals
- Key mistakes that ruin transmission fluid leveling on sealed Toyota units
2018 Toyota RAV4 Transmission Fluid Capacity and Step-by-Step Service Guide
Servicing your transmission begins with getting the fluid specifications right for your exact powertrain.
The 2018 Toyota RAV4 comes with two distinct transmission setups depending on whether you drive a gasoline or hybrid model.
Gasoline models utilize a 6-speed automatic gearbox (U760E for FWD or U760F for AWD), while Hybrid models employ an electronically controlled continuously variable transmission (P314 eCVT).
| Powertrain Trim | Drain & Fill Capacity | Total Dry Capacity | OEM Fluid Spec |
|---|---|---|---|
| 2.5L Gas 6-Speed Automatic (FWD / AWD) | 3.7 – 4.2 Quarts (3.5 – 4.0 Liters) | 6.9 Quarts (6.5 Liters) | Toyota Genuine ATF WS |
| 2.5L Hybrid eCVT (AWD Electronic) | 3.6 – 3.9 Quarts (3.4 – 3.7 Liters) | 3.9 Quarts (3.7 Liters) | Toyota Genuine ATF WS |
Never confuse total dry capacity with drain-and-fill capacity during routine maintenance.
A standard drain service only removes fluid from the pan and overflow tube, leaving extra fluid inside the torque converter.
Overfilling your transmission can cause severe foaming, elevated operating temperatures, and slipping gears.
Always verify fluid requirements against your owner manual or consult a guide on 2007 toyota rav4 transmission fluid type specifications when working on older fleet vehicles.
Prerequisites and Required DIY Tools
Gathering the correct tools beforehand prevents unexpected delays during your service.
You will need a 10mm hex bit socket for the drain plug and leveling straw.
A 24mm socket is required to loosen the side fill plug located inside the driver side wheel wheel.

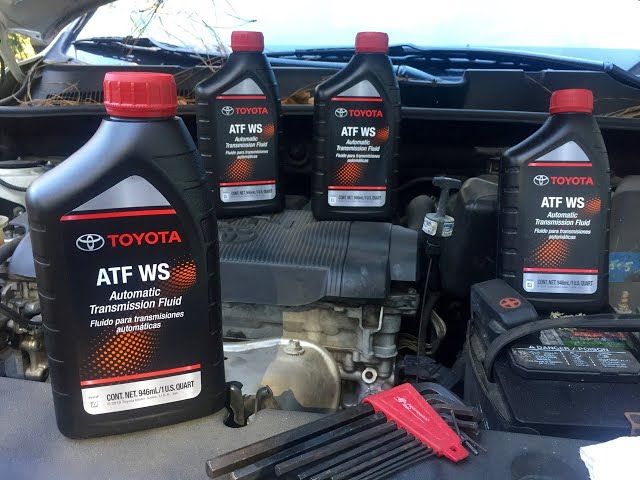

Prepare a fluid transfer pump, torque wrench, drain pan, and four quarts of OEM Toyota ATF WS fluid.
An OBD2 scanner or infrared thermometer is required to check fluid temperature during leveling.
Budget roughly 90 minutes for a complete, careful service in your home garage.
Step 1: Vehicle Setup and Temperature Verification
Park your RAV4 on a completely flat, level surface using heavy-duty jack stands.
A level vehicle posture is critical because the overflow level check relies on gravity.
Allow the engine to cool down until transmission fluid temperature drops below 100 degrees Fahrenheit.
Checking fluid level when hot will cause incorrect volume readings and fluid underfill.
Step 2: Draining the Old Transmission Fluid
Remove the plastic splash guard under the engine bay using trim tools and 10mm bolts.
Locate the bottom transmission fluid pan and set your drain pan underneath.
Remove the 10mm hex drain plug and allow initial fluid to flow out.
Insert your hex bit into the drain port to unthread the plastic overflow level straw.
Allow the remaining fluid to drain completely into your catch container.
Measure the exact volume of old fluid drained so you have a baseline for refilling.
Step 3: Reinstalling Plugs and Refilling Fluid
Clean the drain plug threads and replace the crush washer with a fresh OEM unit.
Thread the plastic overflow straw back into the drain port and hand-tighten gently.
Torque the plastic straw to 7 in-lbs to avoid cracking the soft plastic thread.
Reinstall the main drain plug with its new crush washer and torque to 30 ft-lbs.
Remove the driver-side front wheel and peel back the plastic fender liner shield.
Unscrew the 24mm fill plug using your socket and set aside the aluminum washer.
Pump fresh Toyota ATF WS fluid into the fill port until you match the drained amount plus 0.5 quarts.
Install the fill plug hand-tight to prepare for the final fluid level check procedure.
Step 4: Cycling Gears and Performing Level Check
Start the engine and hold your foot firmly on the brake pedal.
Shift slowly through every gear position from Park to Drive, holding each position for three seconds.
Monitor transmission fluid temperature using an OBD2 scanner or infrared thermometer aimed at the pan.
When fluid temperature reaches between 113 and 130 degrees Fahrenheit, leave the engine idling in Park.
Remove the 10mm drain plug while leaving the internal overflow straw in place.
Allow excess fluid to stream out into a collection tray until it slows to a thin trickle.
Reinstall the drain plug with torque set to 30 ft-lbs as soon as the stream trickles.
Torque the side fill plug to 36 ft-lbs with a new aluminum washer.
Clean up any spilled fluid and reinstall the plastic splash guards securely.
Completing this process regularly preserves gear synchronization and shift speed.
At Vroomdan, we build detailed maintenance tutorials so you can avoid exorbitant dealership service bills. Explore our full suite of SUV repair guides at bryansgarage.com to keep your vehicle running smoothly.
Mechanical Differences: Gas U760E/F Transmissions vs. Hybrid eCVT System
Understanding the mechanical distinction between RAV4 transmissions prevents costly maintenance errors.
The gasoline model utilizes traditional planetary gearsets and a hydraulic torque converter.
This torque converter relies on pressurized fluid to transfer power smoothly from the engine to the drive wheels.
Over time, intense heat degrades the fluid additives, leading to harsh gear shifts and hunting between gears.
In contrast, the 2018 RAV4 Hybrid employs a planetary gear power split device paired with electric motor-generators.
There are no torque converters, steel belts, or hydraulic clutch packs inside Toyota eCVTs.
The transmission fluid in a hybrid primarily serves as a coolant and lubricant for planetary gears and bearings.
Because thermal stress is lower, hybrid fluid experiences less shearing than in gasoline variants.
Owners interested in long-term hybrid efficiency can review our toyota rav4 2016 hybrid gas mileage performance breakdown.
Comparing these systems reveals why fluid change intervals differ across engine configurations.
Comparing Midsize Options: Toyota RAV4 vs Ford Edge Transmission Longevity
Evaluating long-term reliability is crucial when picking a dependable crossover vehicle.
When drivers compare toyota rav4 vs ford edge durability, transmission design plays a major role.
The Ford Edge frequently uses traditional torque-converter automatics that generate substantial internal heat under load.
Toyota engineered the U760 series transmission with lower friction coefficients and revised valve body porting.
This design allows the RAV4 gearbox to operate significantly cooler under heavy highway commuting.
Lower operating temperatures directly protect rubber seals and prevent fluid varnish formation.
As a result, Toyota transmissions exhibit fewer mechanical failures past the 100,000-mile mark.
Drivers making generation comparisons often look back to older trims like the toyota rav4 2009 sport to see how gearbox engineering evolved.
Modern 2018 units benefit from decades of continuous hydraulic refinements by Aisin and Toyota engineers.
If you perform routine DIY care on other vehicle systems, check out our guide on installing 2015 toyota rav4 brake pads safely.
Simple maintenance habits keep your SUV running reliably without unexpected repair headaches.
Preventative Transmission Maintenance for Long-Term SUV Reliability
Toyota officially labels ATF WS fluid as lifetime under normal operating conditions.
However, master mechanics and ASE professionals strongly advise against relying on lifetime fluid claims.
Driving in heavy traffic, towing trailers, or tackling steep mountain grades falls under severe service conditions.
Under severe service, fluid breakdown accelerates and microscopic metallic debris accumulates in the pan.
We recommend performing a fluid drain-and-fill every 50,000 to 60,000 miles for gasoline models.
Hybrid models can safely extend drain intervals to 70,000 miles due to lower operating heat.
Fresh fluid preserves solenoid operation and prevents harsh engagement when shifting into Drive or Reverse.
Combining gearbox maintenance with overall vehicle care keeps your RAV4 operating like new.
Take time to inspect your lighting and wipers, or read our guide on choosing 2020 toyota rav4 wiper blades size specifications.
Routine inspections protect your vehicle and provide complete peace of mind on long family trips.
If you service newer models in your driveway, review our walkthrough for a 2019 toyota rav4 transmission fluid change to see structural changes.
Avoiding Expensive DIY Mistakes During Fluid Replacement
Servicing sealed transmissions requires absolute precision to avoid damaging delicate internal components.
The most common mistake owners make is draining transmission fluid without unfastening the fill plug first.
If the fill plug is seized or stripped, you will be left with an empty transmission and no way to add fluid.
Always loosen and verify the fill plug removes cleanly before touching the drain pan bolts.
Another frequent error is using aftermarket multi-vehicle synthetic fluids instead of genuine Toyota ATF WS.
Non-OEM fluids often possess incorrect viscosity profiles that lead to severe torque converter shudder.
Never perform a high-pressure machine flush on high-mileage transmissions.
High pressure can dislodge heavy sludge and clog fine passages inside the valve body.
Stick strictly to gravity drain-and-fill services to keep hydraulic circuits clear.
Pay close attention to auxiliary components like lighting during night garage repairs, referencing 2012 toyota rav4 headlight bulb guides if needed.
Frequently Asked Questions
No, performing a fluid change yourself will not void your vehicle warranty under the Magnuson-Moss Warranty Act. You must use fluid that meets OEM specifications, such as Toyota Genuine ATF WS, and keep receipts of all materials purchased.
The 2018 RAV4 features a sealed transmission without a traditional engine bay dipstick. Fluid level is verified using the internal overflow straw located inside the pan drain port while the fluid temperature sits between 113°F and 130°F.
Overfilling causes spinning transmission gears to aerate the fluid, creating air bubbles and internal foam. Foamed fluid cannot maintain proper hydraulic pressure, leading to delayed gear engagement, slipping, and severe overheating.
While some fluid manufacturers claim WS compatibility, Toyota transmissions are extremely sensitive to fluid viscosity and friction modifiers. Master technicians strongly recommend using exclusively OEM Toyota ATF WS fluid to maintain shift quality.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Taking control of your 2018 Toyota RAV4 transmission maintenance prevents costly dealership bills and preserves gear health. With correct WS fluid levels, your SUV will deliver smooth shifts for hundreds of thousands of miles. Ready to get the most out of your RAV4? Check out more guides on Vroomdan or email us at contact@bryansgarage.com — our team is here to help you discover more SUV secrets and maintenance guides.
