2019 Toyota RAV4 Battery Replacement: Complete Step-by-Step DIY Guide
Replacing your battery at home eliminates exorbitant dealership labor charges instantly.
This tutorial covers gas-powered 2019 RAV4 trims (LE, XLE, Adventure, Limited) and hybrid variants.
Before turning a single wrench, gather the exact mechanical supplies required for a clean installation.
Prerequisites & Required Tools
You need a 10mm socket wrench or combination box wrench.
Grab a pair of heavy-duty rubber work gloves and protective eye goggles.
Keep a wire terminal cleaning brush and battery post anti-corrosion spray nearby.
An optional 12V OBD2 memory saver maintains your dashboard clock and radio presets.
Plan for roughly 20 to 30 minutes of total working time in a well-lit driveway.
-
Step 1: Vehicle Preparation and Battery Location
Park your RAV4 on a flat, level surface and engage the electronic parking brake.
Turn off all exterior lights, cabin illumination, and the audio head unit completely.

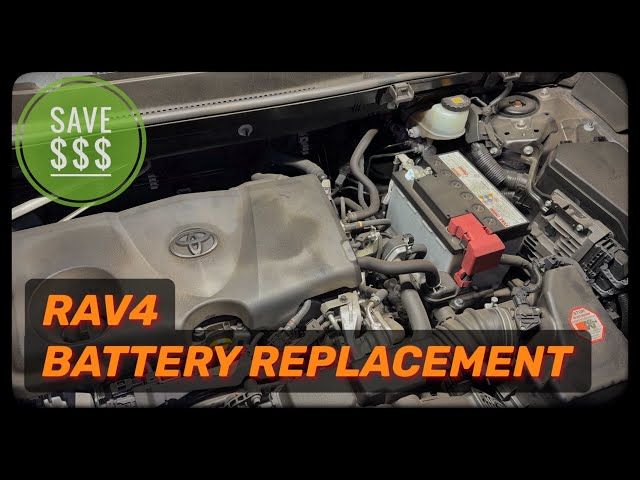

For gas engine models, pop the hood and locate the battery on the front driver side.
For hybrid models, open the rear tailgate to find the 12V unit inside the right quarter-panel floor panel.
Allow the engine compartment to cool off for 15 minutes before touching metal components.
-
Step 2: Disconnect the Negative Terminal First
Always loosen and detach the negative (black) terminal cable before touching the positive post.
Use your 10mm socket to loosen the nut securing the clamp to the negative terminal post.
Twist the clamp gently back and forth while pulling upward to lift it completely clear.
Tuck the negative cable firmly to the side so it cannot accidentally contact the metal battery post.
This crucial sequence prevents dangerous electrical short circuits against the steel vehicle chassis.
-
Step 3: Remove the Positive Terminal and Hold-Down Bracket
Flip open the red protective plastic cover shielding the positive battery terminal clamp.
Loosen the 10mm retaining nut on the positive terminal assembly carefully.
Lift the positive cable off the post and wrap the connector in a dry shop towel.
Unbolt the two 10mm nuts holding the metal battery tie-down bracket to the tray frame.
Lift the steel bracket strap straight out of the engine compartment or cargo bay bay carefully.
-
Step 4: Extract Old Battery and Clean Mounting Area
Grasp the battery handle firmly and lift the heavy casing straight out of the tray.
Inspect the plastic battery tray beneath for accumulated acid corrosion or debris buildup.
Scrub the terminal clamps using your wire brush until bare metal shines through clearly.
Reviewing 2017 toyota rav4 xle specs helps show how Toyota redesigned these tray dimensions for the fifth generation.
Wipe down the tray area with a baking soda and water solution to neutralize lingering battery acid.
-
Step 5: Install New Battery and Reconnect Terminals
Lower the fresh starting unit gently into the central tray, making sure posts align correctly.
Reinstall the metal hold-down bracket and tighten the two 10mm bolts evenly until snug.
Attach the positive cable clamp to the positive terminal post first and torque down the 10mm nut.
Attach the negative cable clamp to the negative post second and tighten it securely into position.
Apply a liberal coat of anti-corrosion spray across both metallic terminal posts to block moisture oxidation.
At Vroomdan, our master mechanics test every DIY maintenance sequence on real vehicles.
We believe every owner can maintain their SUV without paying markups at corporate service centers.
Explore our complete library of maintenance tutorials at Vroomdan to save thousands on ownership expenses.
Decoding Toyota RAV4 2019 Battery Size Across Gas and Hybrid Trims
Installing the wrong casing dimension can lead to loose bracket fitment or electrical terminal strain.
Standard gas model years use a flooded lead-acid Group Size 35 battery configuration from the factory.
Confirming your specific toyota rav4 2019 battery size saves frustrating return trips to auto supply stores.
Gas engine models require a minimum cold cranking amps rating of 550 to 640 CCA.
Hybrid models utilize an LN2 / Group H5 AGM (Absorbed Glass Mat) auxiliary battery setup.
Hybrid 12V batteries feature dedicated external ventilation tubes due to their enclosed cargo area location.
Check out our guide on 2013 toyota rav4 windshield wipers for more simple electrical maintenance tips.
Selecting reliable replacement brands like Duralast on AutoZone ensures factory-level starting power during harsh winters.
Refer to the table below to cross-reference exact factory specifications across engine offerings.
| Trim Line / Engine | Group Size | Min Cold Cranking Amps (CCA) |
|---|---|---|
| 2.5L Gas (LE, XLE, Adventure, Limited) | Group 35 | 640 CCA |
| 2.5L Hybrid Synergy Drive (HV) | Group LN2 / H5 (AGM) | 570 CCA |
| 2.5L Gas Cold Weather Package | Group 35 / 25 High Output | 680 CCA |
Maintaining clean electrical power is as essential as replacing your 2023 toyota rav4 hybrid oil filter during regular scheduled service.
Hybrid Synergy Drive 12V Battery Role vs. High-Voltage Traction Pack
Many owners mistakenly confuse the 12V auxiliary starting unit with the high-voltage hybrid traction pack.
The large high-voltage lithium-ion or nickel-metal hydride battery powers the electric drive motors exclusively.
The small 12V battery powers cabin computers, headlight relays, keyless entry modules, and ignition startup switches.
If the 12V auxiliary unit dies, the hybrid computer system cannot energize the high-voltage traction pack circuits.
According to the official Toyota Owner’s Manual, a weak 12V battery causes mysterious dashboard warning lights.
ASE Certified Mechanics report that dead 12V batteries remain the leading cause of non-starting hybrids.
Much like performing a 2015 toyota rav4 transmission fluid change, respecting electrical service safety guidelines prevents costly repair bills.
Never attempt to service the orange high-voltage cables connected to the main hybrid traction system.
Focus solely on replacing the standard 12V auxiliary battery located behind the rear passenger quarter panel trim.
Preventative Battery Maintenance and Cost-Saving Measures
Proactive care prevents the crippling panic of getting stranded in dark winter parking lots.
Test your battery voltage annually using a digital multimeter set to DC voltage mode.
A healthy fully charged 12V battery reads between 12.6 and 12.8 volts with the engine off.
Readings dropping below 12.2 volts indicate a degraded internal charge capacity requiring swift replacement.
Clean white acid corrosion buildup off posts using a stiff brush dipped in warm water and baking soda.
Maximizing electrical efficiency also helps optimize overall fuel economy across long highway road trips.
Reviewing historical figures like 2009 toyota rav4 gas mileage demonstrates how modern smart alternators reduce engine drag.
Avoid running headlight lamps or seat heaters while parked with the engine or hybrid system turned off.
Overcoming Common DIY Battery Swap Mistakes
One frequent mistake is over-tightening terminal nuts, which cracks soft lead terminal posts wide open.
Apply exact torque specs of roughly 4 to 5 ft-lbs on 10mm terminal nuts to preserve clamps.
Another major error on hybrid models is forgetting to reconnect the small plastic vent elbow tube.
Unvented AGM batteries inside the cargo area can release trace hydrogen gas directly into passenger spaces.
Avoid pulling the main negative cable aggressively, which can damage body ground straps underneath the tray.
Failure to use an OBD2 memory saver forces the engine computer to relearn electronic throttle body idle positions.
This memory loss causes brief idle surging or rough engine operation for the first 20 driving miles.
Owners servicing vehicles near 2023 toyota rav4 hybrid christiansburg dealerships often report these simple DIY steps save over $150.
Frequently Asked Questions
How long does a factory 2019 Toyota RAV4 battery typically last?
OEM factory batteries usually last between 3 to 5 years depending on climate conditions and driving habits.
Will changing my RAV4 battery clear my custom infotainment settings?
Disconnecting power resets dashboard clock settings unless you use an inexpensive OBD2 memory saver tool during replacement.
Can I install a standard flooded battery inside my RAV4 Hybrid model?
No, hybrid models require an AGM battery with proper vent tube ports for interior safety compliance.
Do I need to register or code the new battery to the engine computer?
Toyota models do not require software battery registration, unlike modern European luxury vehicles.
