Step-by-Step Toyota RAV4 Fuel Pump Assembly Replacement Guide
Replacing an electric fuel pump assembly can restore smooth engine power and eliminate high-speed stalling.
You can complete this repair at home with basic mechanical experience and proper hand tools.
Work in a well-ventilated garage area and keep a chemical fire extinguisher nearby.
Expect to invest about two to three hours for a complete installation process.
Prepare a 10mm socket wrench, a trim removal tool, a fuel line disconnect tool, and safety goggles.
Always keep your fuel tank below a quarter capacity before starting this service work.
Step 1: Relieve Fuel System Pressure and Disconnect Battery
Locate the fuse box under the engine hood and remove the fuel pump relay switch.
Start your engine and let it run naturally until the fuel starves and stalls out.
Crank the engine over for another five seconds to bleed residual pressure from the fuel rail.
Turn the ignition off completely to prevent electrical shorts during fuel system handling.
Disconnect the negative terminal cable from your 12V battery using a 10mm wrench.
Step 2: Access the In-Tank Fuel Module Under the Rear Seat
Remove the rear passenger seat cushion by pulling firmly upward on the front retention clips.
Pry up the plastic service access door located on the driver side floorboard area.
Clean all surrounding dirt away from the access cover to keep contaminants out of your gas tank.
Disconnect the electrical wire harness connector attached to the top of the fuel sender lid.
Carefully release the quick-connect fuel line fitting using rag shop towels to catch small drips.
Step 3: Remove the Retaining Lock Ring and Pull Assembly
Unscrew the circular lock ring counter-clockwise using a dedicated brass punch tool or Toyota lock ring wrench.
Lift the fuel pump assembly slowly out of the plastic fuel tank port.
Tilt the module slightly to prevent bending the float lever arm on the fuel level sending unit.
Drain residual gasoline inside the old housing bucket back into your tank opening.
Place the old assembly directly into a catch pan to prevent interior carpet spills.

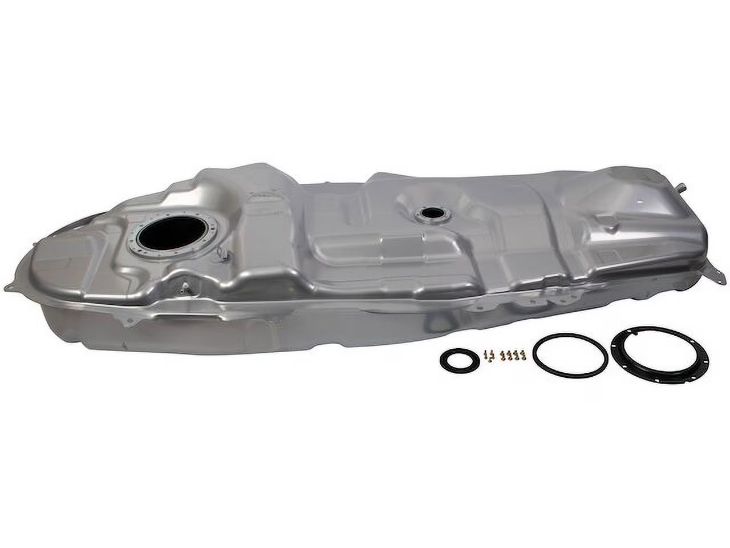

Step 4: Install the New OEM Parts and Seal
Clean the sealing surface rim on top of the fuel tank opening using a clean microfiber cloth.
Always replace the main rubber tank gasket with a new OEM sealing ring during installation.
Lower the new pump assembly gently into the tank while aligning the positioning tabs correctly.
Reinstall the metal lock ring and torque it firmly to maintain a leak-free system seal.
Reconnect the quick-connect pressure hose and click the electrical wire harness connector into place.
Step 5: Reconnect Battery, Prime System, and Test
Reinstall the fuel pump relay into the engine bay fuse box socket securely.
Reconnect your negative 12V battery terminal cable and tighten the mounting bolt firmly.
Turn the ignition key to the ON position for five seconds without cranking the engine.
Repeat this cycling key process three times to fill the lines with fresh fuel pressure.
Start your engine and check the fuel module seal for leaks before reassembling the rear seat.
Our team at Vroomdan provides detailed repair insights so every owner can handle routine maintenance with absolute confidence.
Diagnosing Failing Toyota RAV4 Fuel Pump Assembly Symptoms and PSI Parameters
A failing fuel supply setup causes distinct performance issues before total pump failure leaves you stranded.
You may experience long engine cranking, high-speed engine sputtering, or power loss during heavy acceleration.
High-pitched whining noises coming from under the rear seat area also signal worn pump bearings.
Diagnosing these symptoms early protects your engine from lean burn conditions and misfire damage.
Connect an inline fuel pressure tester tool directly to the engine bay test port connection.
Standard fuel delivery pressure on 2.5L four-cylinder models must consistently measure between 44 and 55 PSI.
If your pressure readings drop below 35 PSI, the electric motor inside the module is failing.
Modern direct-injection engines rely on proper fuel delivery to supply the high-pressure mechanical pump on the cylinder head.
Poor low-pressure delivery starves high-pressure components and causes diagnostic trouble codes like P0087 to set.
Always verify fuel system health if you observe a sudden drop in 2014 toyota rav4 miles per gallon numbers.
Comparing Gas vs. Hybrid RAV4 Fuel Systems and Specific Requirements
Gas-only models and Hybrid Synergy Drive (HEV) variants share similar in-tank delivery modules but function differently.
Hybrid powertrains cycle the gasoline engine on and off repeatedly based on driving loads and battery charge.
This frequent starting duty cycle puts extra reliance on quick fuel pressure buildup in the delivery rail.
Hybrid models also utilize specialized vapor recovery systems integrated around the fuel storage bladder area.
Never disconnect fuel connections on hybrid units without isolating high-voltage systems as outlined in official manuals.
Always choose high-grade unleaded fuel as detailed in our guide on 2025 toyota rav4 gas type choices.
Using correct fuel octane prevents early pump varnish buildup and keeps internal motor rollers running clean.
When working on hybrid derivatives, maintain clean service habits just like when changing your 2023 toyota rav4 hybrid oil filter unit.
| System Feature | Standard Gas RAV4 | Hybrid RAV4 (HEV) |
|---|---|---|
| Standard Fuel Pressure | 44 – 55 PSI | 45 – 58 PSI |
| Primary Access Location | Under Left Rear Seat | Under Left Rear Seat |
| Fuel System EVAP Setup | Standard Charcoal Canister | Pressure Sealed EVAP Tank System |
Practical Maintenance Tips for Extending Electric Fuel Pump Lifespan
Preventative driving habits directly influence how long your replacement fuel delivery module lasts over time.
Electric fuel pumps are fully submerged in gasoline, which acts as a primary cooling fluid for the internal motor.
Driving consistently with less than a quarter tank causes the pump motor to run excessively hot.
Overheated motor windings degrade prematurely and lead to complete component failure during warm summer months.
Try to keep your tank at least half full whenever possible to ensure proper pump cooling and lubrication.
Maintaining proper fuel levels also helps keep dirt sediment at the tank bottom from clogging the inlet strainer screen.
Keeping clean fuel flowing through your lines helps optimize overall toyota rav4 gas mileage 2017 ratings.
Routine vehicle checks should also include replacing worn 2013 toyota rav4 windshield wipers to ensure safe overall operation.
Overcoming Common DIY Mistakes During Installation
One major error DIYers commit is pinched rubber gasket seals during lock ring reinstallation.
A misaligned gasket causes evaporative emission leak codes like P0440 or P0455 to illuminate your dashboard cluster.
Always lubricate the new rubber gasket ring lightly with clean silicone grease before installing the module lid.
Another common mistake involves bending the delicate wire float lever attached to the fuel level sender arm.
If this lever gets bent during insertion, your dashboard fuel gauge will read inaccurately or stick completely.
Take your time when slipping the module bucket through the narrow tank opening access hole.
Never hammer directly on plastic lock rings with steel tools, as this can crack the tank neck tabs easily.
Use brass punches or dedicated plastic lock ring removal sockets to apply balanced turning force safely.
Addressing small repairs early helps owners prevent broader electrical issues like 2018 toyota rav4 xle problems from escalating.
Frequently Asked Questions
Will replacing my fuel pump assembly myself void my factory warranty?
Replacing your fuel module using quality parts will not void your coverage under Magnuson-Moss Warranty Act laws unless your installation directly causes a secondary failure. Save your purchase receipts and follow factory repair steps carefully.
Can I replace just the electric fuel pump motor instead of the entire assembly?
While motor-only kits exist, mechanics recommend replacing the full assembly module. Replacing the entire assembly replaces the integrated pressure regulator, fuel filter screen, fuel level sender unit, and seal all at once.
How do I know if my fuel pump relay is bad instead of the pump itself?
If your engine cranks but fails to start, swap the fuel pump relay with an identical horn relay in the fuse box. If the car starts up immediately, the original relay switch was burnt out rather than the fuel pump module.
Do I need special tools to remove the fuel tank lock ring?
You can use a non-sparking brass punch tool and mallet to tap the ring loose gently. However, using a dedicated lock ring spanner socket makes removal easier and eliminates the risk of damaging plastic housing teeth.
