2021 Toyota RAV4 Battery Specifications and Replacement Guide
Replacing the 12V power supply in your fifth-generation RAV4 is a straightforward job when you have the correct tools and mechanical procedures.
Performing a successful 2021 toyota rav4 battery replacement requires approximately 30 minutes of focused effort in your driveway.
Before beginning the process, gather a 10mm deep socket, a socket extension, a ratchet, wire terminal cleaning brushes, safety eyewear, and heavy nitrile gloves.
We highly recommend using a 12V memory saver device plugged into your OBD2 port to maintain computer presets during the service.
-
Step 1: Vehicle Preparation and Safety Check
Park your SUV on a level surface and engage the electronic parking brake firmly.
Turn off all exterior lighting, active climate control fans, and the central infotainment system completely.
Wait at least ten minutes for all onboard electronic control modules to enter sleep mode.
Safety Warning: On hybrid models, ensure the instrument cluster reads OFF rather than READY before handling terminals.
-
Step 2: Locating the Power Unit

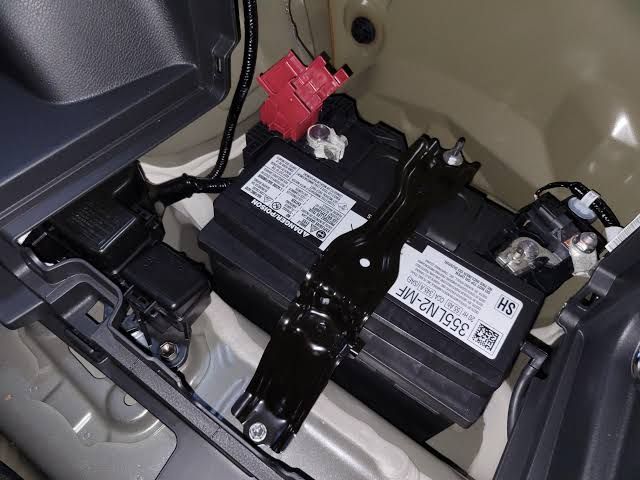

For standard 2.5L gas models, pop the hood and locate the tray situated on the driver side of the engine compartment.
For hybrid variants, open the rear liftgate and remove the right-hand side trunk trim panel to access the auxiliary unit.
Ensure your working space is clear of debris or loose hardware before unfastening components.
-
Step 3: Disconnecting Terminals Safely
Always loosen and disconnect the negative (black) cable terminal clamp first using your 10mm socket wrench.
Isolate the free negative clamp away from the battery post using a rubber boot or rag to prevent accidental arc sparking.
Unfold the red protective cover over the positive terminal and loosen the 10mm retaining nut to remove the positive cable.
-
Step 4: Removing Hold-Down Hardware and Removing the Unit
Unscrew the two 10mm J-hook nuts securing the top hold-down bracket crossbar to the body frame.
Lift the steel bracket upward and carefully remove the thermal protective sleeve surrounding the casing if equipped.
Grasp the integrated carrying handle and lift the heavy unit straight up and out of the tray.
Inspect the tray area for acid residue or debris, cleaning it with a baking soda and water solution.
-
Step 5: Installing the New Unit and Reassembly
Lower the fresh unit into the tray, ensuring correct terminal orientation match for positive and negative cables.
Reinstall the thermal sleeve and secure the hold-down bracket firmly without overtightening the J-hook nuts.
Attach and torque the positive terminal clamp first, followed immediately by the negative terminal clamp.
Apply a light layer of dielectric grease or anti-corrosion spray over both clean metal terminals.
At Vroomdan, our mission is to empower owners with practical knowledge that saves money while keeping vehicles running reliably.
If you enjoy tackling maintenance tasks yourself, explore our guide on replacing the 2018 toyota rav4 cabin air filter for cleaner interior airflow.
Group Sizes and Electrical Requirements for 2021 RAV4 Models

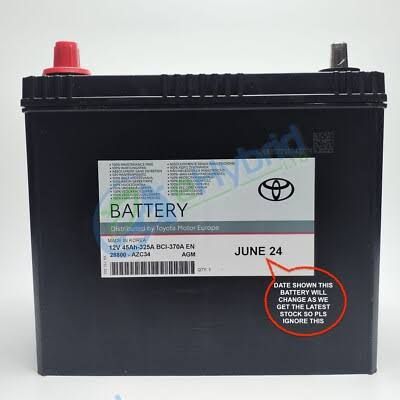

Selecting the correct battery for 2021 toyota rav4 models depends heavily on your specific engine configuration and optional trim equipment.
Standard gas trim levels (LE, XLE, Adventure, TRD Off-Road) equipped with Start-Stop systems utilize an H5 / Group 47 AGM unit.
Gas models without automated engine start-stop cycling generally accept a standard Group 35 flooded lead-acid power cell.
According to the official Toyota Owner’s Manual, maintaining proper Cold Cranking Amps (CCA) is critical for cold climate reliability.
Gas variants require a minimum rating of 550 CCA, though upgrade options providing 640 CCA deliver superior winter cranking performance.
| RAV4 Model Type | BCI Group Size | Min. Cold Cranking Amps | Recommended Chemistry |
|---|---|---|---|
| 2.5L Gas (Standard) | Group 35 | 550 CCA | Flooded / EFB |
| 2.5L Gas (Start-Stop) | Group 47 (H5) | 600 CCA | AGM (Absorbed Glass Mat) |
| 2.5L Hybrid / Prime | LN2 / H5 or S46B24R | 500 CCA equivalent | AGM with Exterior Vent Tube |
Upgrading to Absorbed Glass Mat (AGM) chemistry offers three times the cycle life of traditional flooded alternatives.
AGM construction handles deep electrical discharge cycles better and resists extreme road vibration across rugged terrain.
If you frequently load heavy gear for outdoor trips, review our analysis on 2019 toyota rav4 mpg figures to optimize your overall efficiency.
Gas vs 2021 Toyota RAV4 Hybrid Battery Auxiliary Differences
Understanding the distinction between starting batteries and high-voltage traction packs prevents costly misunderstandings among owners.
The 2021 toyota rav4 hybrid battery system actually consists of two completely separate electrical components working in tandem.
The large high-voltage Nickel-Metal Hydride (NiMH) or Lithium-Ion traction pack resides under the rear seats to drive electric motors.
Conversely, a small 12V auxiliary unit resides inside the rear trunk compartment on the right side panel.
This 12V auxiliary unit does not turn the combustion engine over like a traditional starter motor.
Instead, it energizes the main computer relays, powers interior cabin accessories, and closes the high-voltage contactor switches.
Because the auxiliary unit is housed inside the passenger cabin envelope, it must feature a dedicated external vent tube connection.
Never install a standard non-vented battery inside the trunk space, as off-gassing hydrogen presents a severe safety hazard.
Maintaining proper suspension geometry is equally important for weight distribution; read our guide on toyota rav4 shocks for smoother handling.
Preventative Maintenance to Maximize Battery Lifespan
Proactive care significantly extends overall service life and protects sensitive vehicle electronics from low-voltage glitches.
Modern crossover electronics place continuous parasitic background draws on the power system even when parked.
Sourcing a high-quality replacement battery for 2021 toyota rav4 vehicles helps ensure consistent voltage stability year-round.
Inspect terminal posts every six months for white or greenish sulfate powder buildup that restricts electrical current flow.
Clean affected posts using a stiff wire brush and a diluted baking soda mix, neutralizing acidic buildup completely.
Check the hold-down clamp tension annually to guarantee vibration does not loosen internal lead plates over time.
If your vehicle sits parked for more than two consecutive weeks, connect an automatic smart trickling charger to maintain voltage.
Keeping up with fluid schedules is another vital task; check the 2010 toyota rav4 oil capacity specs for older fleet models in your garage.
Common DIY Battery Installation Mistakes to Avoid
Avoiding frequent installation blunders ensures your electrical system functions flawlessly without triggering diagnostic trouble codes.
One major error is forcing cable terminal clamps down onto tapered posts using a hammer or heavy pliers.
Pounding on terminals damages fragile internal post welds, leading to internal short circuits and instant unit failure.
Another common mistake on hybrid models is forgetting to reconnect the small plastic elbow vent tube to the new casing.
Without the vent line connected, toxic hydrogen gas can build up inside the enclosed rear cargo area during charging.
Furthermore, removing power without a memory saver causes the power liftgate, power windows, and sunroof to lose automatic index limits.
Refer to your 2015 toyota rav4 service schedule documentation for baseline maintenance intervals across generations.
Frequently Asked Questions
Will replacing my 12V unit reset my customized vehicle infotainment settings?
Disconnecting power completely will clear radio station presets, clock time, and custom vehicle preference settings.
Using a inexpensive 12V OBD2 memory saver tool during replacement keeps power supplied to modules, preserving all your personal data.
How long should a factory original 12V unit last in a 2021 RAV4?
Under normal driving conditions, an OEM factory unit lasts between three and five years depending on ambient climate extremes.
Hot southern summer temperatures accelerate grid corrosion, while harsh northern winter freezes reduce available cranking capacity faster.
Can I install a standard flooded option if my SUV came with an AGM unit?
We strongly advise against downgrading from an AGM to a standard flooded unit on models with Smart Stop-Start technology.
Flooded options cannot handle the continuous rapid recharge cycles required by automated start-stop engines, leading to fast premature failure.
Do I need to register the new unit with diagnostic software after installation?
Unlike some European luxury brands, Toyota vehicles do not require proprietary battery registration software tools after replacement.
The intelligent battery sensor on the negative cable automatically recalibrates state-of-charge tracking after a few normal drive cycles.
“I’ve driven a RAV4 for 3 years and didn’t know this existed.”
— The most common reaction when this article is shared
Did you know you can lower the cargo floor by two inches to fit taller items? Or the specific button combination that mutes the power liftgate beep?
bryansgarage.com · 2026
Conclusion
Replacing the 12V battery in your RAV4 is a quick, rewarding task that saves money and keeps your SUV reliable.
